Product detailed description
Introducing the Piher Maxipress M clamp - the clamping master with incredible strength. This great helper will show you what it means to have a really tight fit.

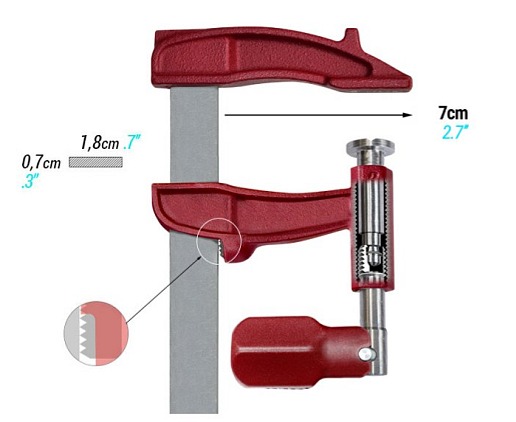

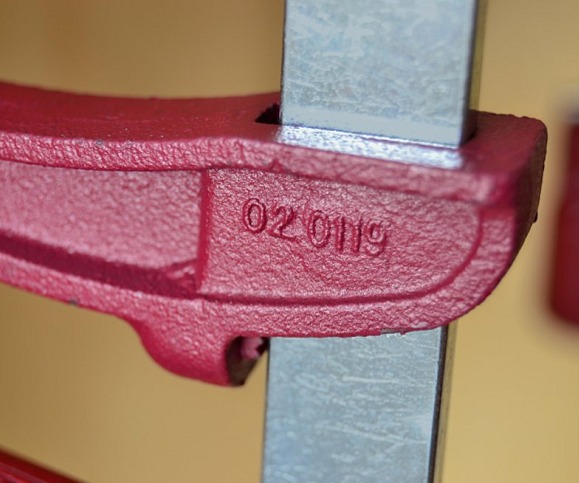

The Maxipress M boasts an extra durable rolled steel bar with a cross section of 18 x 7 mm. Its jaws are made of high quality steel alloy and have a clamping depth of 7 cm. And that's not all!
A special stop on the sliding jaw prevents accidental sliding on the leash, so you don't have to worry about your item coming loose. In addition, the V-shaped cross groove in the sliding jaw also allows round objects to be clamped - yes, the Maxipress M is truly a universal helper!

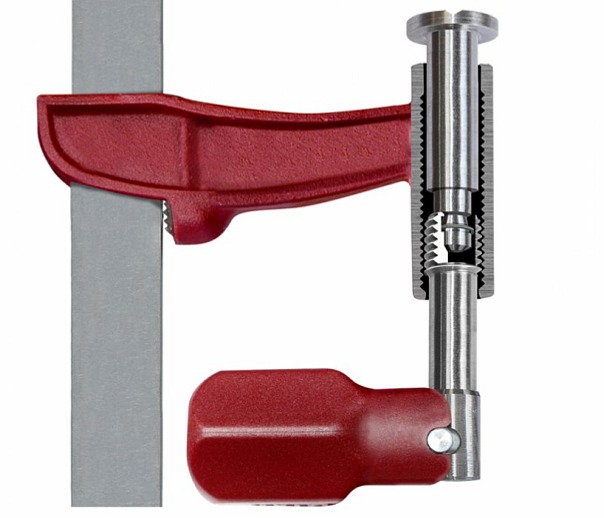

The 1:2 gearing in the clamping screw together with the crank handle ensures a maximum pressure of up to 400kg.
The clamp is designed so that in pairs they stand on their own on the edge - so there is no need to hold them. The handle is made of high-quality plastic and is easily removable.
Additional parameters
Category: | Carpentry clamps and pullers |
---|---|
Warranty: | 2 years |
hloubka vyložení: | 7 cm |
Portable joinery vice with ponk clamp.
-
Portable model for mounting on tables up to max. 52 mm plate thickness
-
Parallel double steel slider.
-
Made of nodular cast iron.
- Jaw width: 15 cm
- Height of jaws :5,5 cm
- Max clamping (workpiece width): 12 cm
Easy clamping with only one hand, easy tool-free repositioning of the clamp for expansion. To release the arm, simply press the latch and turn.
Piher Quick T-track is designed for most guide rails (Festool, Makita, DeWalt,Triton, Parkside, Asist).
Viking Arm - Protective non-slip jaw on the upper movable part.
- the pad is equipped with an anti-slip layer
- protects delicate surfaces from damage
- expands the possibilities of using your Viking Armat
- especially useful for assembly work
- designed for the upper movable part Viking Armu
- smallest mounting height with bases fitted 22 mm
secure attachment to guide rails from manufacturers Festool, Metabo, Makita, Hikoki (Hitachi), Dewalt etc.
package content : 2pcs (1pair)
The original technical design allows you to clamp and expand with a force of up to 2000 N.
The Viking Arm® Telescopic Extension is ideal for fast, safe and accurate wall cabinet installation.
- The attachment provides 3 levels of extension and offers safe, convenient and efficient mounting options that can save professionals valuable time.
- This makes it a one-man assembly and eliminates the need for a second (or third!) person to hold an object weighing up to 50 kg in place.
- It gives the user the ability to work independently and safely, smoothly and with the typical precision of the Viking Arm® tool, and to secure even heavy objects.
Neither the transport case nor the hand jack itself Viking Arm is included.
Viking Arm - Protective non-slip jaw on the upper movable part.
- the pad is equipped with an anti-slip layer
- protects delicate surfaces from damage
- expands the possibilities of using your Viking Armat
- especially useful for assembly work
- designed for the upper movable part Viking Armu
- minimum mounting height with base in place 15 mm
Uniform clamping of rectangular workpieces with four plastic corners.
New from Bessey: one-hand gear clamp with guide bar clamping for narrow and otherwise confined spaces.

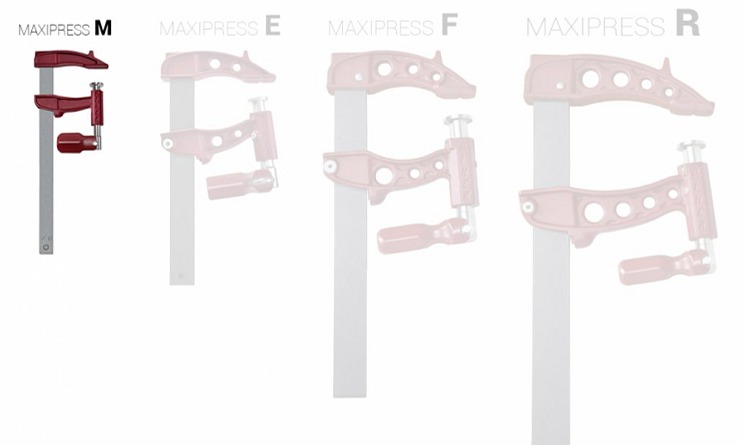

The new range of powerful clamps Piher Maxipress E with a depth of 9.5 cm and a clamping force of 850 kg. New handle can be used as straight or rectangular for maximum tightening.
