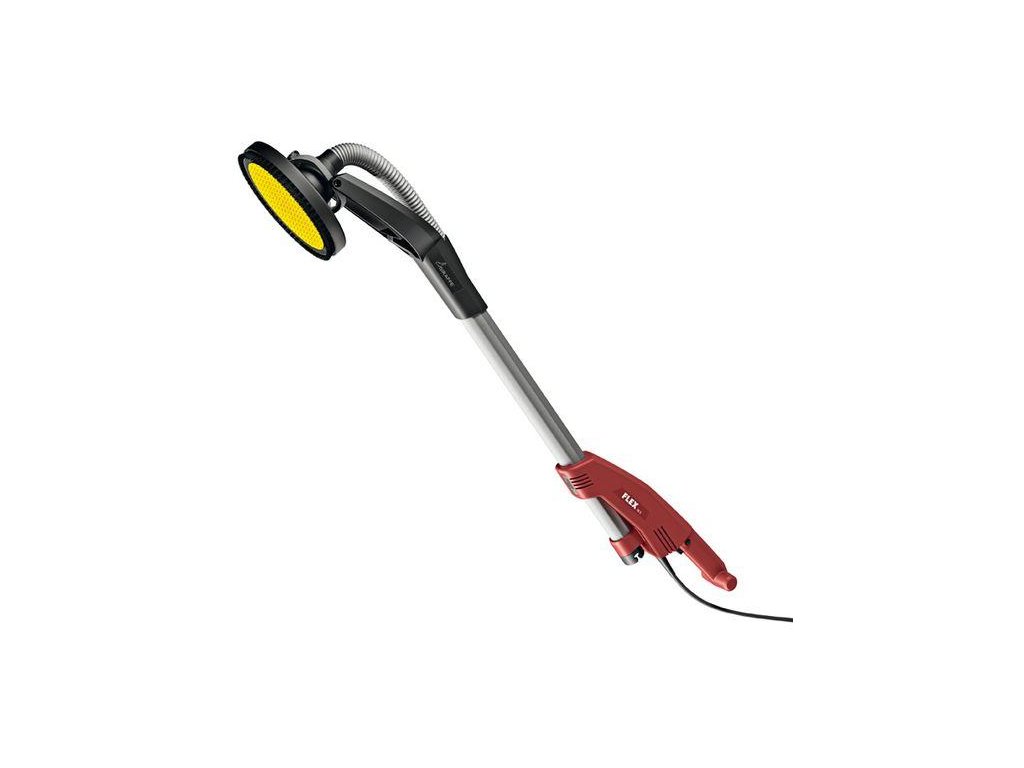

Giraffe, ceiling and wall sander G 5 R edge head

Product detailed description

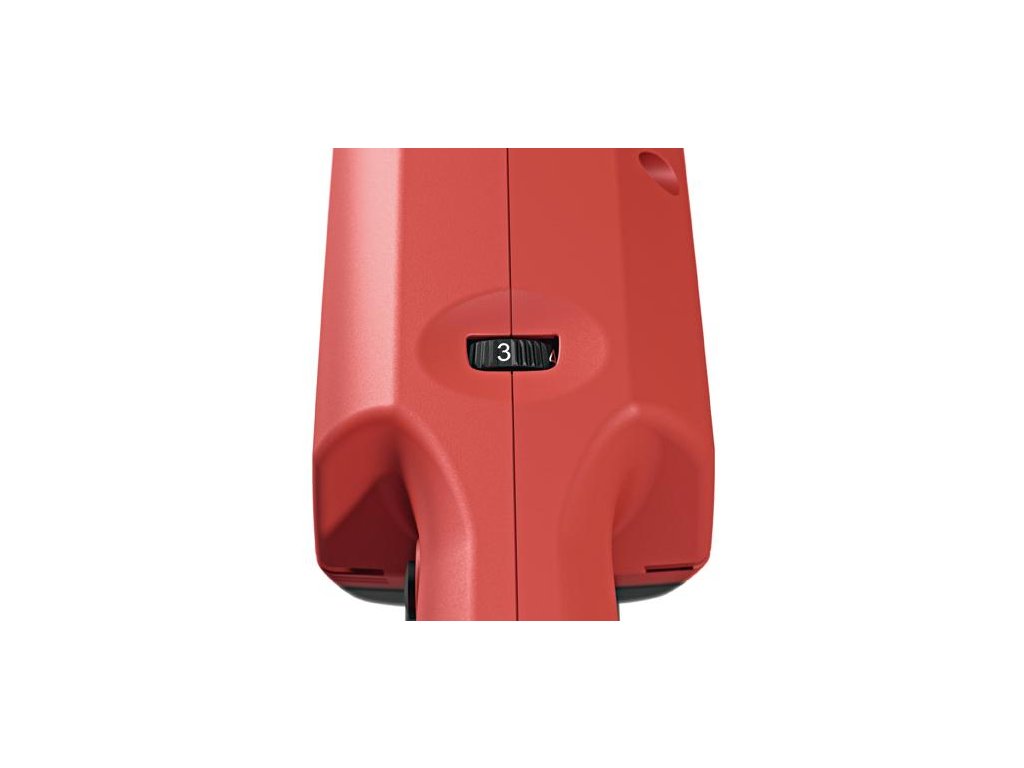

• Electronics: with constant speed maintenance, soft start, overload protection and speed preselection by potentiometer
• Very easy to handle, lightweight machine with optimised operator comfort. Allows tireless work and ergonomic grip
• The rotatable edge segment enables the machining of wall/wall and wall/ceiling transitions
• The edge segment can be rotated without interrupting the work by moving the machine
• Easy guidance: thanks to the optimal balance between motor and grinding head
• Reliable power transmission via a flexible drive shaft from the motor to the drift plate. This has been a proven "FLEX technology" for decades. This design principle reduces the weight on the giraffe's head to a minimum. This makes it easier to handle

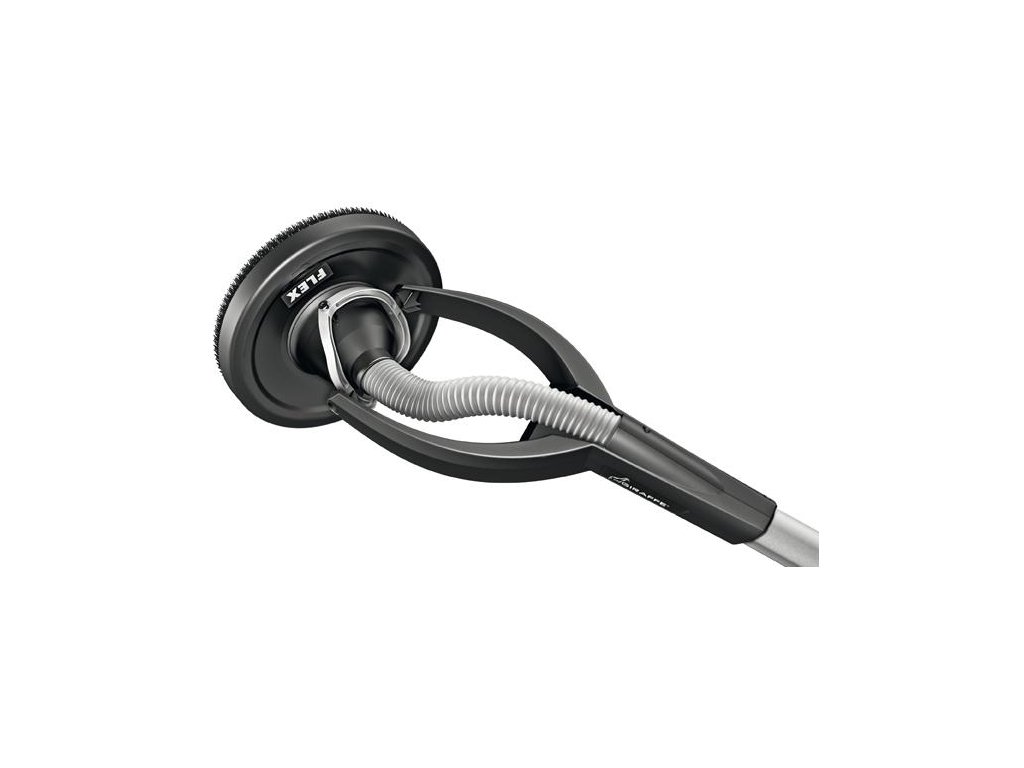

• The cardan-shaped grinding head means high flexibility and optimum adaptation to the walls and ceilings to be ground

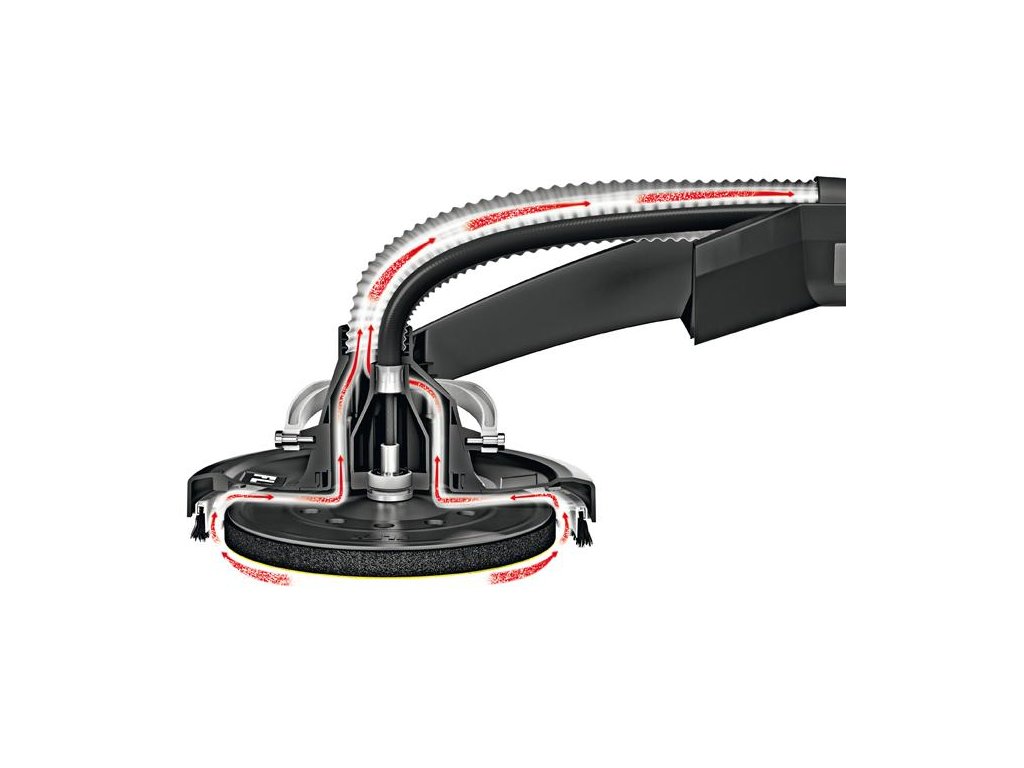

• Efficient suction between the brush rim and the grinding plate prevents clogging of the abrasive and guarantees dust-free work

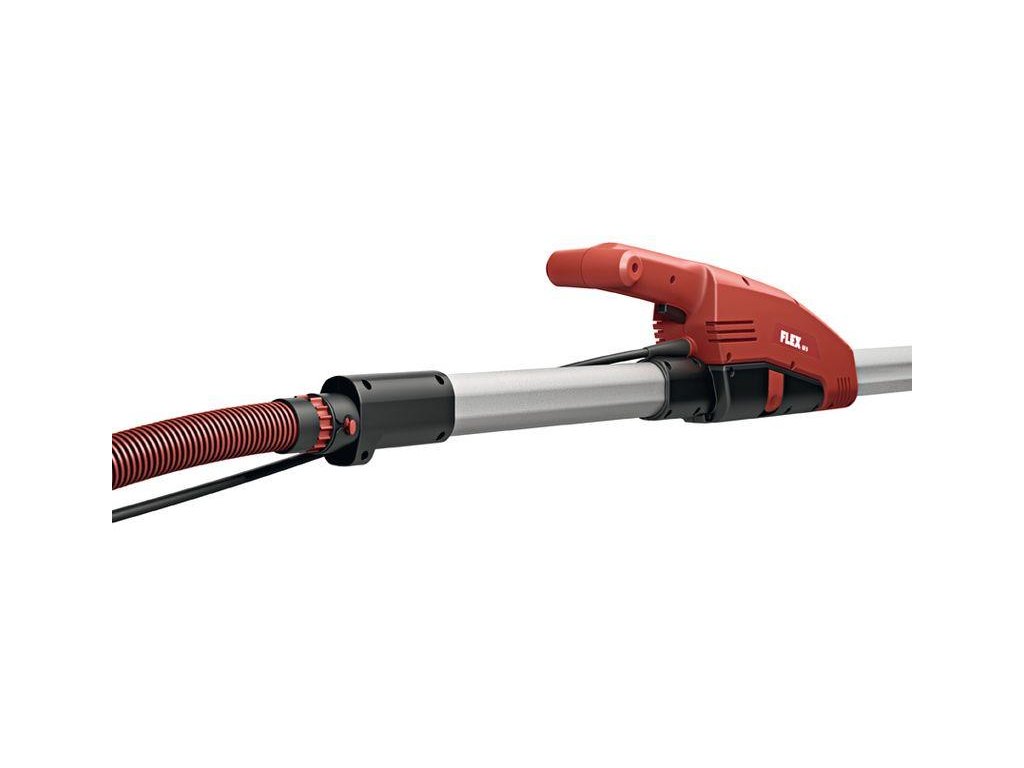

• Possibility to connect the FLEX safety vacuum cleaner to the guide tube using the FLEX Clip system
• Easy handling thanks to ergonomic aluminium guide tube. Optionally, an additional handle can be fitted (accessory)
• Two-position switch, protected against dust
• Extremely flexible with a possible extension (accessories) of 500 mm to large heights, assembled without tools
• Depending on the type of abrasive used, suitable for sanding plasterboard, polystyrene, thermal insulation boards, preparation before painting
• Large areas and heights up to 3.40 m can be worked with the optional GM 340 trolley

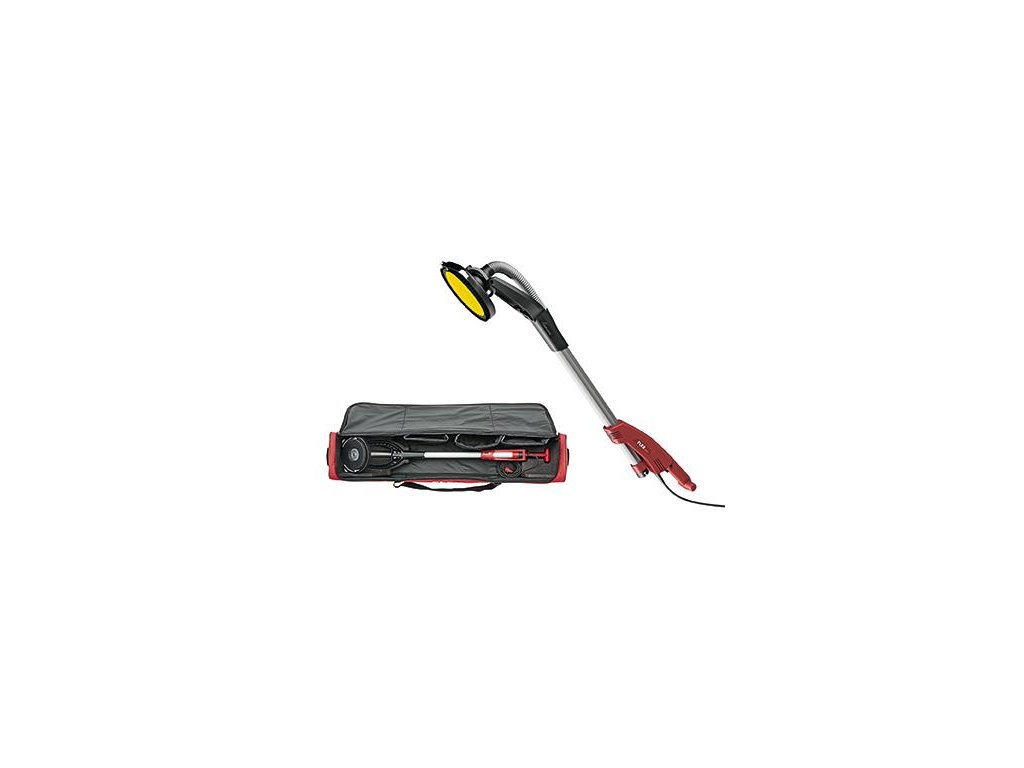

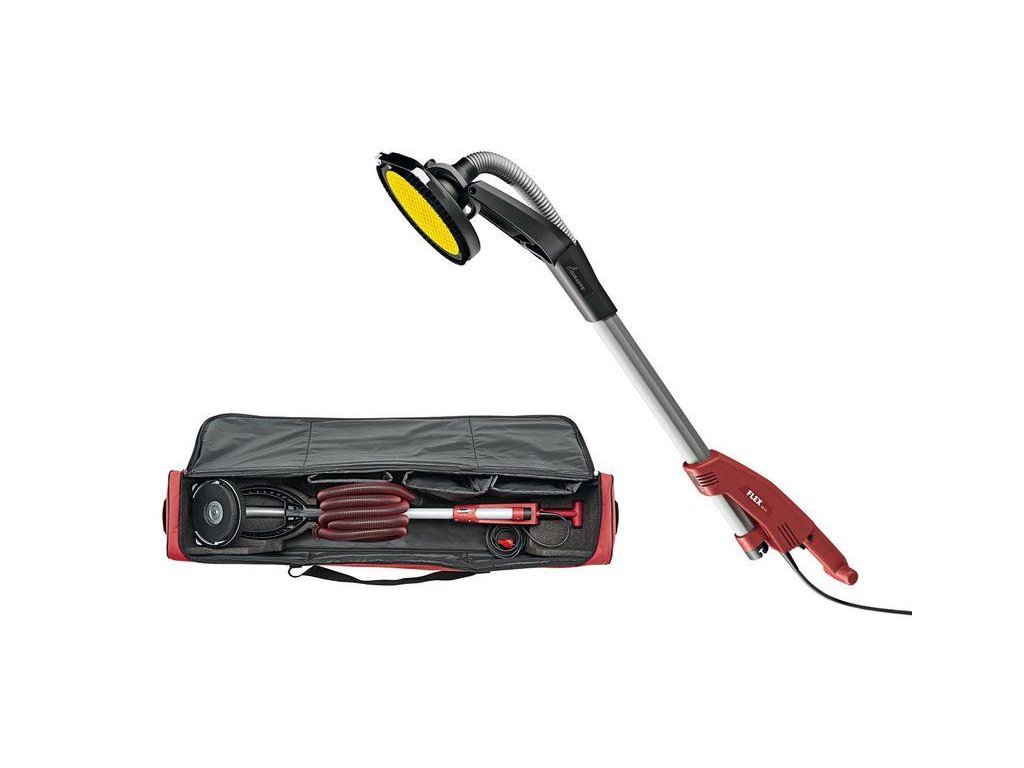

• With the innovative textile transport bag, the machine and accessories can be transported without any problems. The Giraffe® does not need to be folded afterwards, it is immediately usable

Technical data:

• Power input 500 W
• Power 270 W
• Idle speed 1100-1650 rpm
• Ø of grinding wheel 225 mm
• Tool clamping velcro
• Angle for head tilt 100 °
• Length 1520 mm
• Cable length 5,0 m
• Weight 3.9 kg

Scope of delivery:

order No. 409324

• 1 Velcro removable plate super soft 399.418
• 1 Clip-ring SH-FC 32 406.023
• 1 transport bag 408.867

order No. 409405

• 1 Velcro removable plate super soft 399.418
• 1 Clip-ring SH-FC 32 406.023
• 4-m suction hose 32 mm Ø with ratchet connection for vacuum cleaner, anti-static, with side air control 406.708
• 1 transport bag 408.867
