Template for joints of worktops APS 900/2
Code: 204219Related products
Product detailed description
Precise joining.

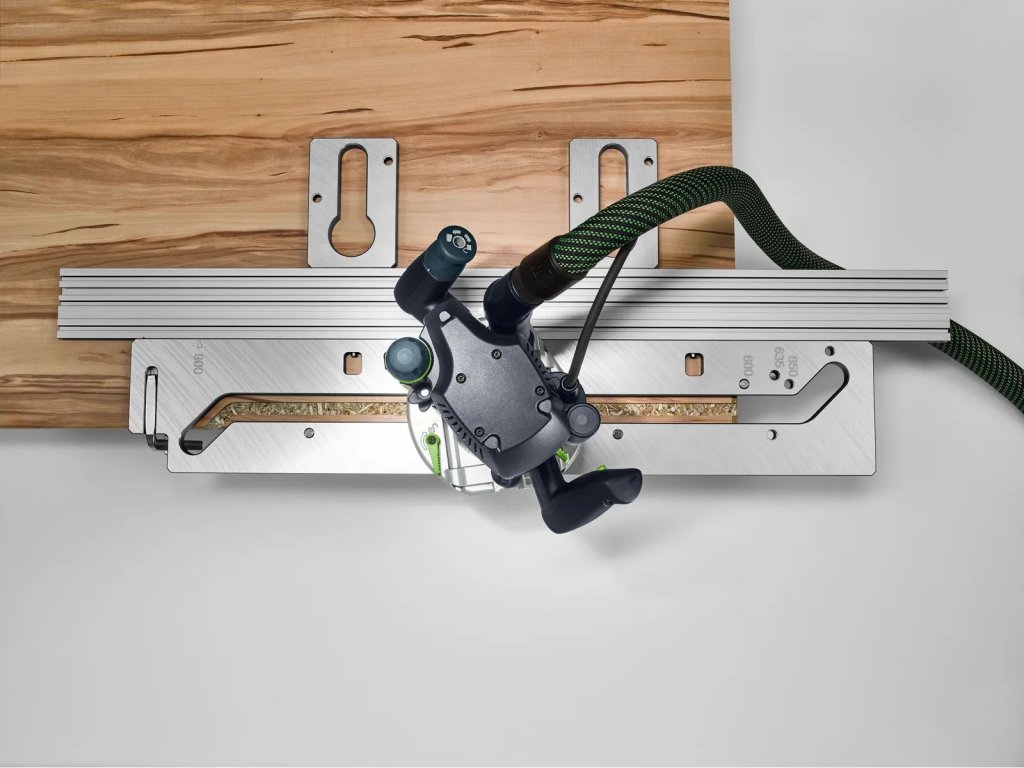

The APS worktop joint template makes it easy to create precise joints of wooden boards with 90° angles. Worktops with a depth of 600 mm and 650 mm can be milled in clamping - and by moving the template up to 900 mm.
-

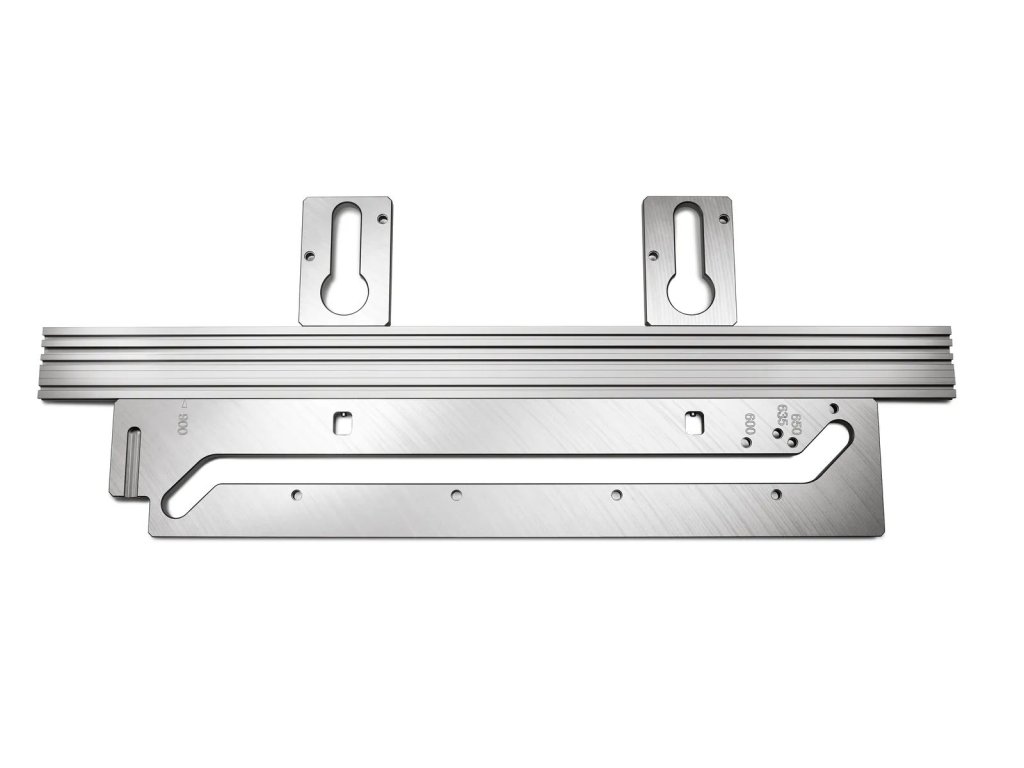

Robust milling jig made of aluminium
-

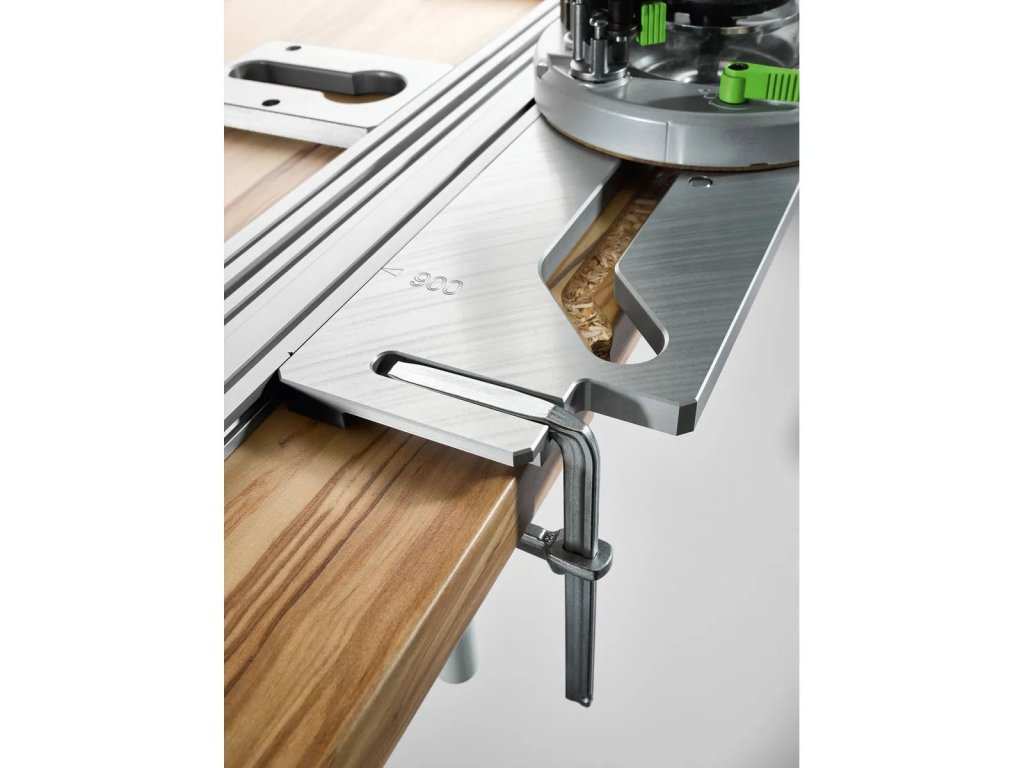

For corner and plate joints with fixed stops of 600 and 650 mm or offset up to 900 mm plate depth
-
Additionally with two freely positionable milling templates for the recessing of common fasteners on the underside of the plate
-
Plate depths greater than 900 mm also possible - with the use of extension profiles
-

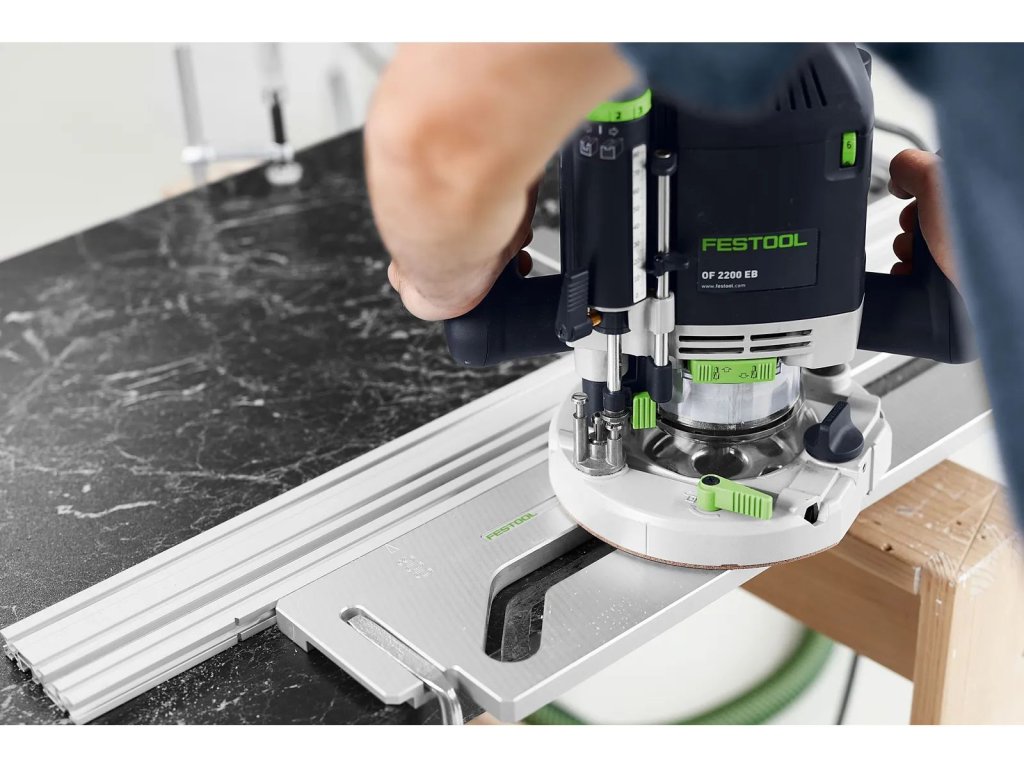

For spline cutter Ø 14 mm and copy ring Ø 30 mm, recommended for top milling machine OF 2200

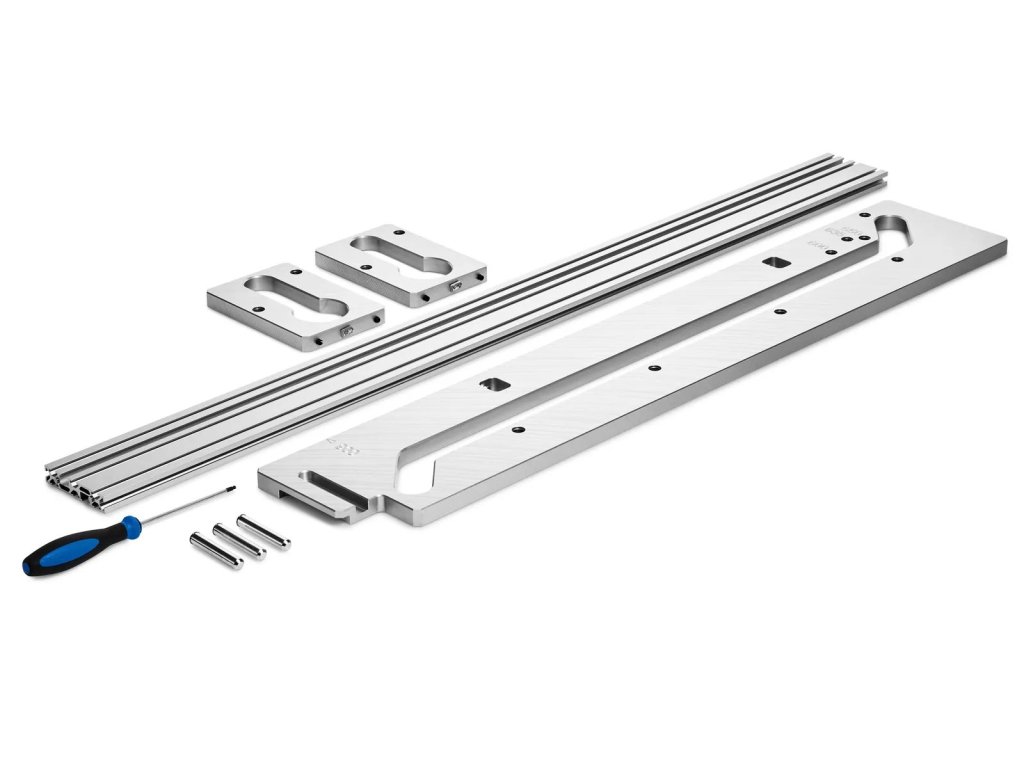

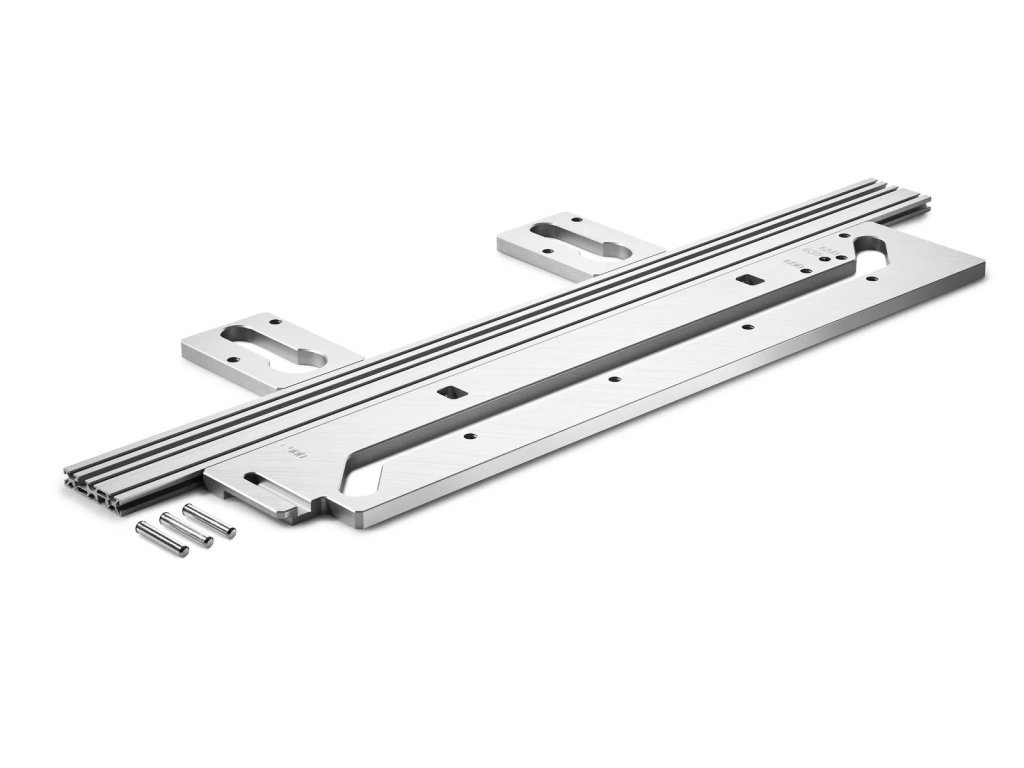

Scope of delivery APS 900/2
-
template for corner joints
-
profile MFS-VP 1000
-
3x Pin
-
screwdriver MFS
-
in cardboard
Technical data
- Plate depth at corner joints with offset 900.00 mm.
- For work plate fasteners, pin length 65/150 mm.
- Plate depth at corner joints without displacement 600/650 mm.
- Dimensions (L × W × H) 1000 x 380 x 16 mm.
Additional parameters
| Category: | Milling jigs and fixtures |
|---|---|
| Warranty: | 2 roky nebo All - inclusive 3 roky(po registraci zákazníkem) |
| Weight: | 5 kg |
