Zdvihací frézovací stolek (deska) pro horní frézku

Features

Precise height adjustment:

• A control knob located on the top of the table allows for working height adjustment with a resolution of 0.025 mm, with a height change of 1.59 mm per rotation.
• A special locking mechanism prevents the setting from shifting due to vibrations, which is essential for achieving repeatability and precision during milling operations.

Construction and materials:

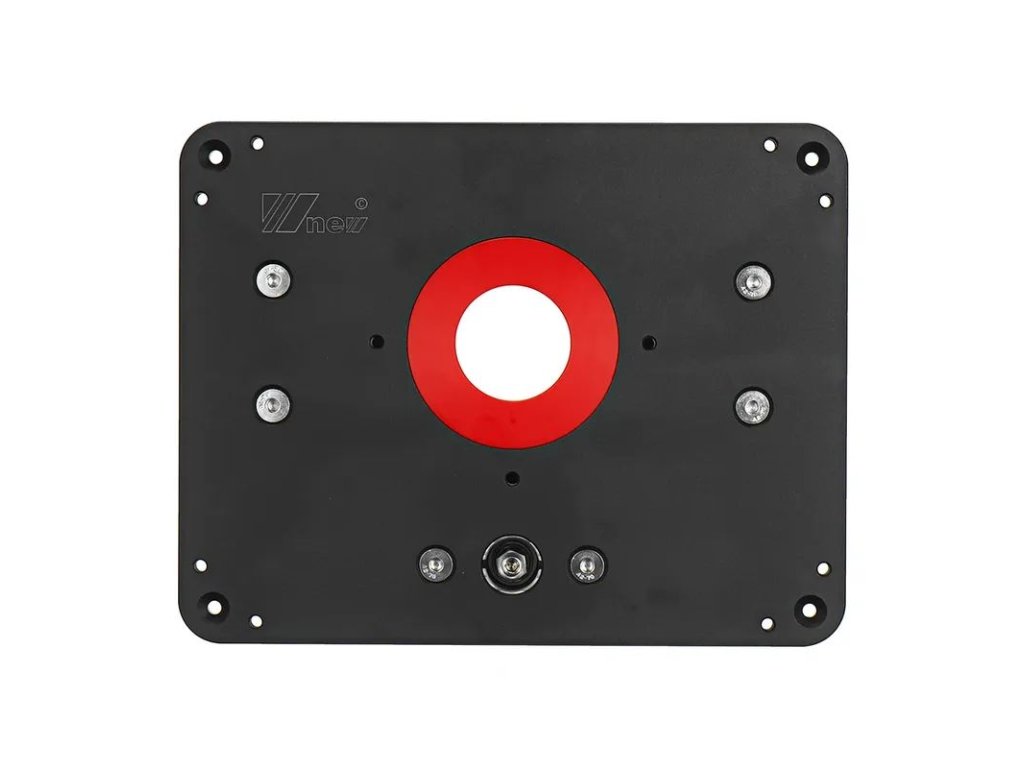

• A 10 mm high-quality anodized aluminum insert plate ensures a durable and wear-resistant surface that adapts to various milling tables.

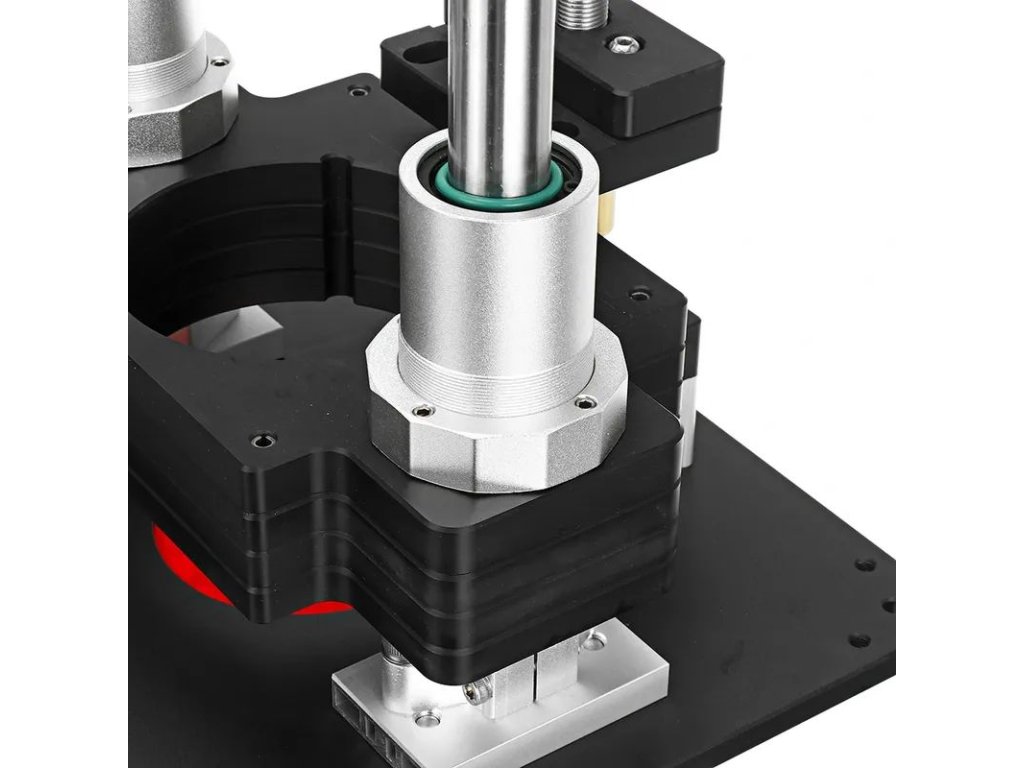

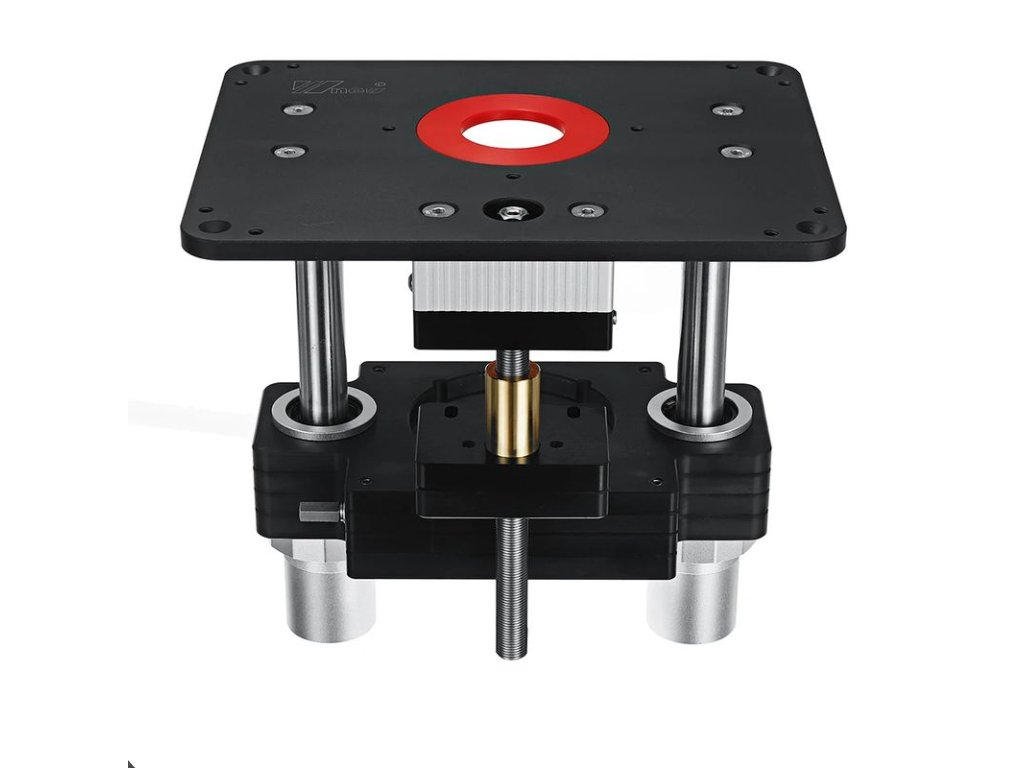

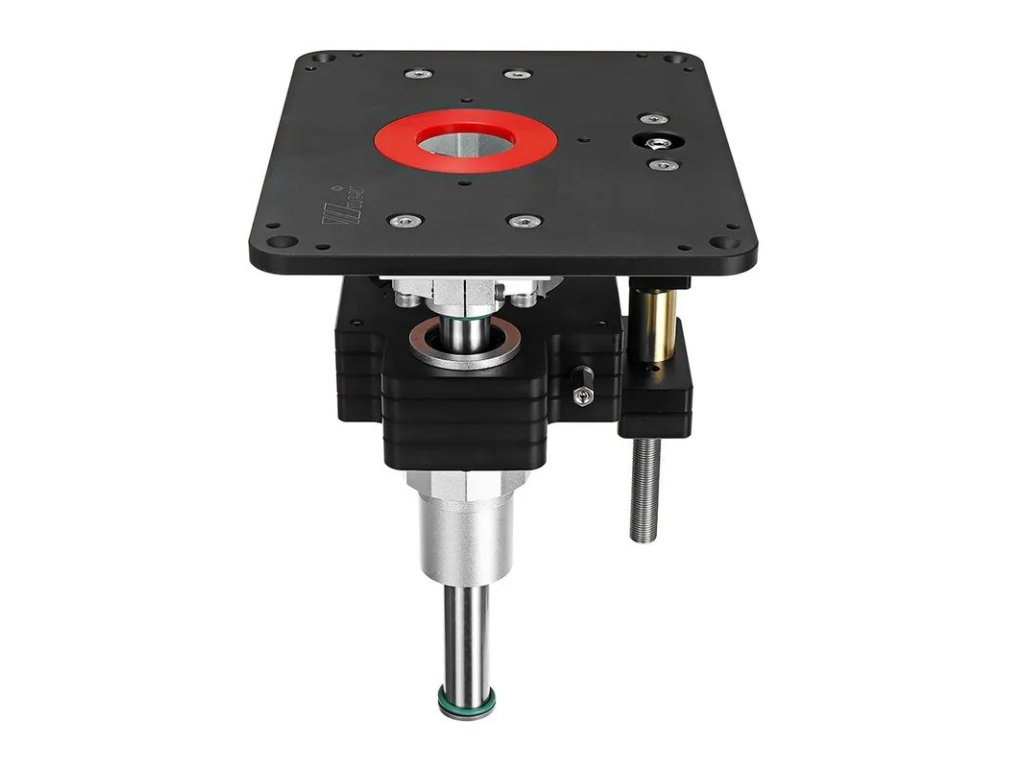

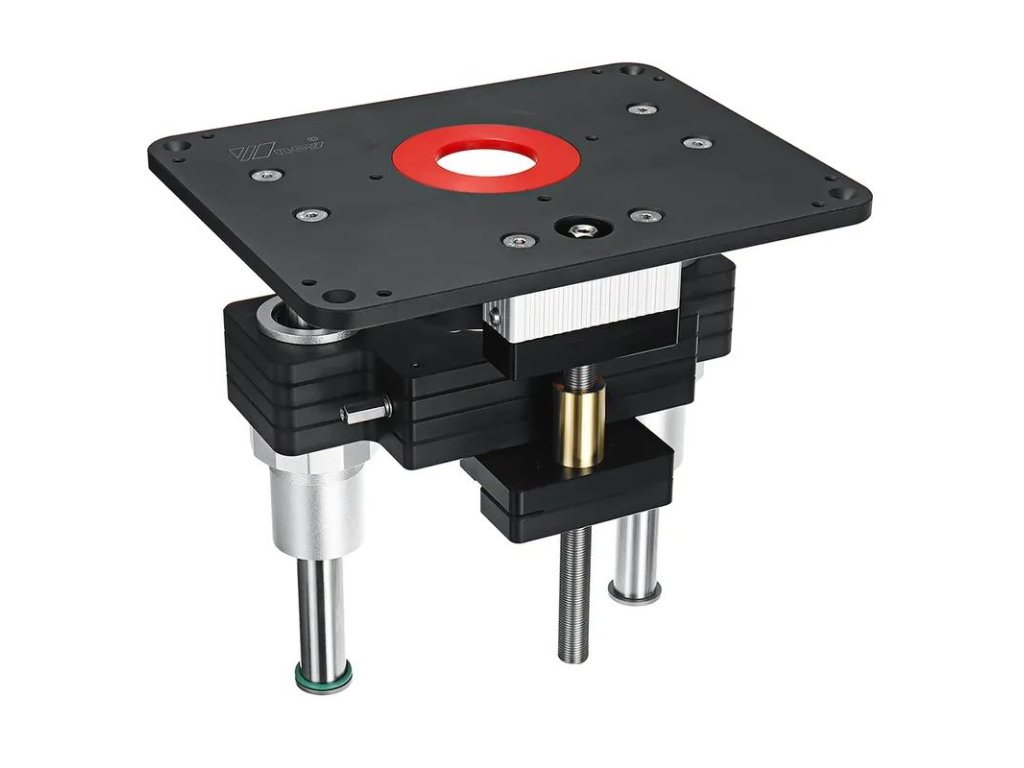

• The entire structure is made of CNC-machined steel plates that move on double-sealed linear bearings mounted on steel guide columns, ensuring ultra-smooth movement without lateral play.

Technical Specifications

• Material: Aluminum alloy (hardened anodized plate, 10 mm)
• Transmission system: Precision lead screw mechanism with micron-level adjustment
• One rotation: 1.59 mm height adjustment (with 0.025 mm adjustment resolution)
• Finish: Scratch- and wear-resistant

Why choose this system?

• Exceptional accuracy and repeatability: Micrometer adjustment allows for fine-tuning of height, which is essential for mass production and precise cutting of decorative profiles or grooves.
• Easy operation and installation: Top-down height adjustment significantly simplifies the work, as there is no need to reach under the table, saving both time and effort.
• Safety and reliability: The robust construction and special mechanisms ensure stable and safe operation even at high speeds.

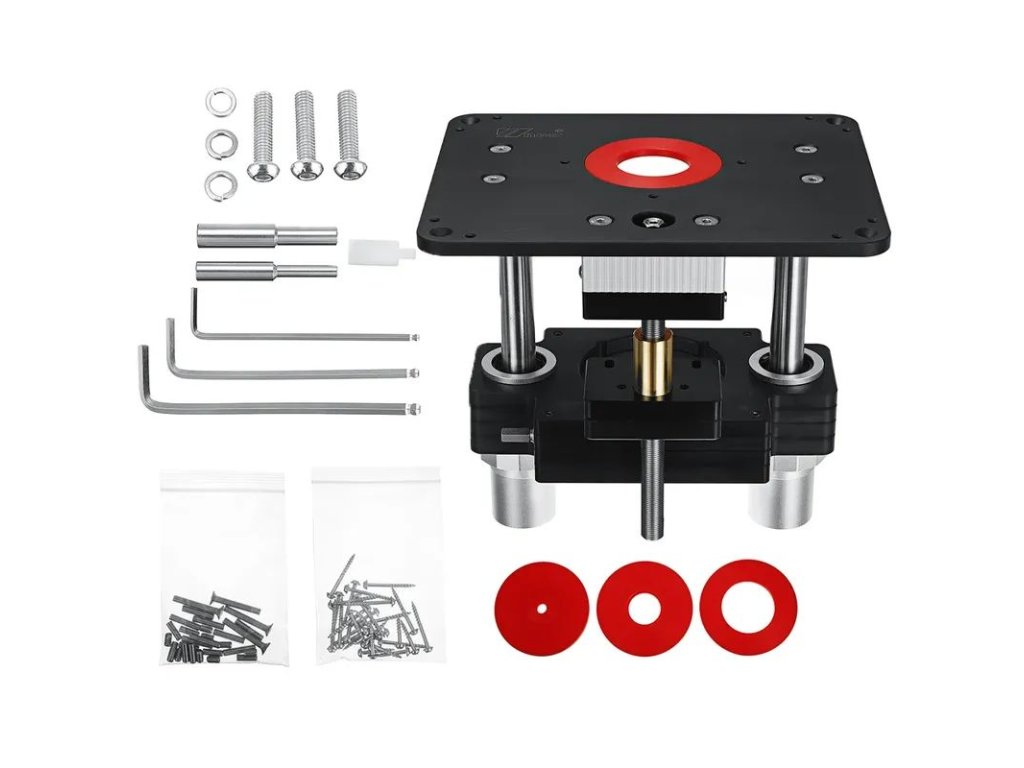

Scope of delivery:

The package includes everything needed for maximum versatility and easy installation:

• Router table: A robust mechanism for precise vertical adjustment of the router.
• Template for cutting a hole in the table: Self-adhesive template for precise preparation of the work surface.
• 1× Router bit with bearing: For flawless and smooth cutting of the material.
• 4× Adjustable metal corners: Corner feet for leveling and stabilizing the tabletop.
• 1× Removable Pivot Pin: A removable pivot pin ensuring safe, free-hand operation.
• 3× Insert rings: Recessed rings with various center holes (e.g., 10 mm, 32 mm, 50 mm) for universal adaptation to various router bits.
