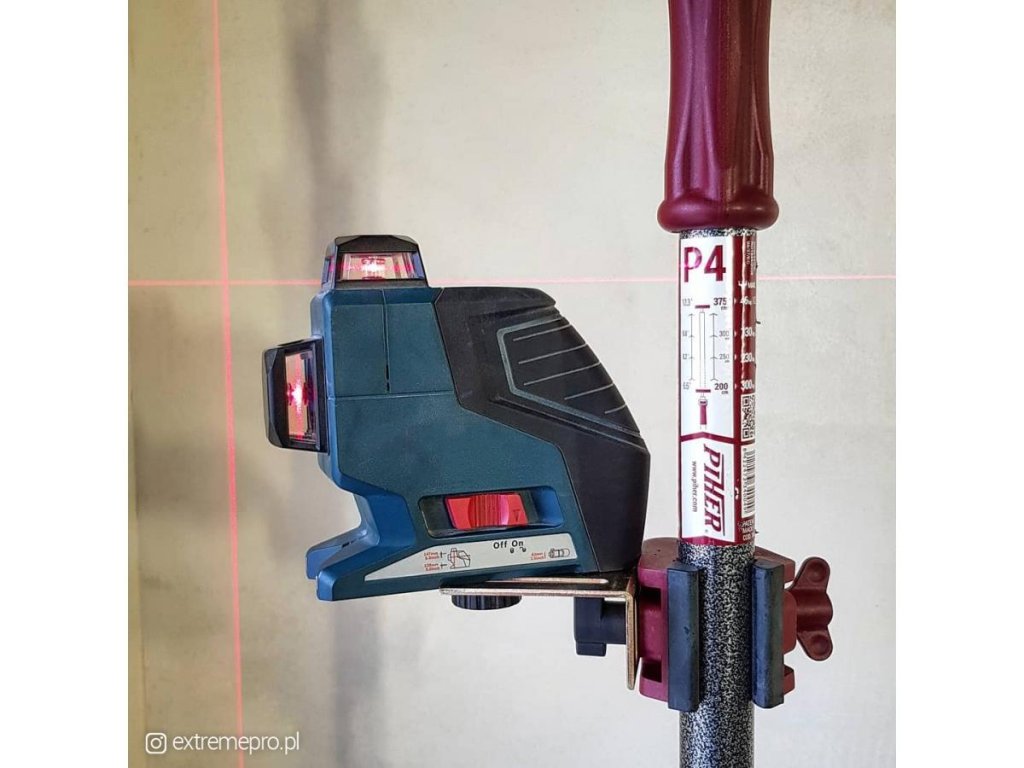

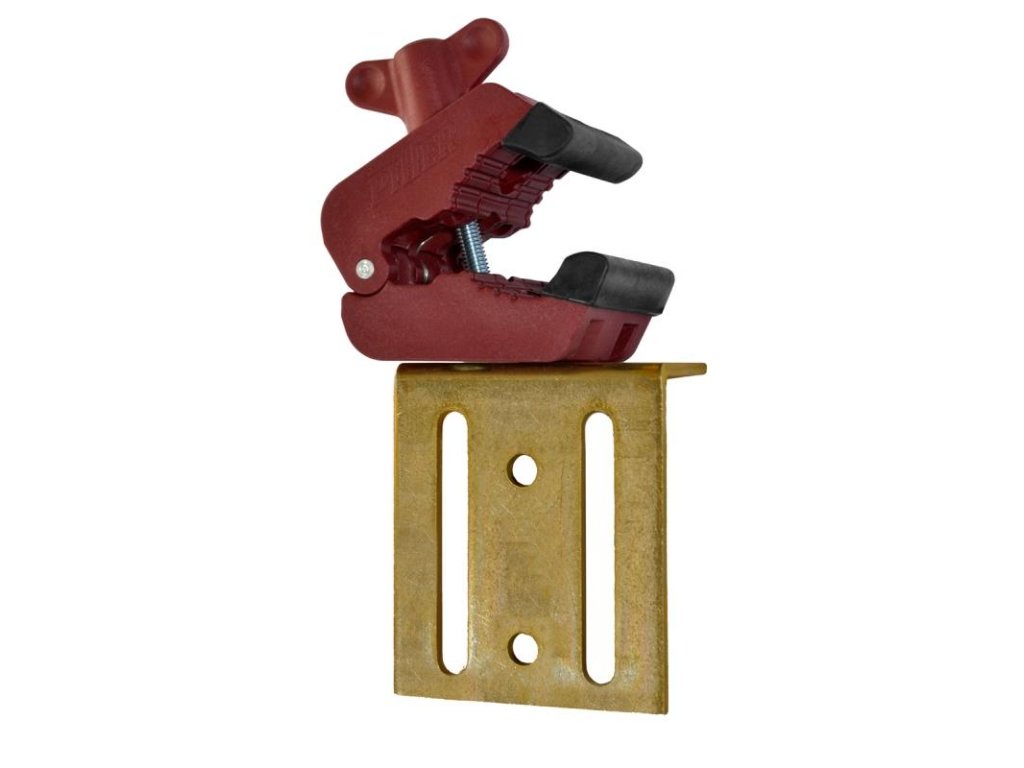

Piher | Simple clamp with laser angle

A simple clamp with an adjustable bracket for Piher rods.

Nylon jaws for a secure and gentle grip:
Jaws made of glass-fiber-reinforced nylon ensure reliable clamping without damaging even the most delicate materials. With the Piher Multiclamp, you don’t have to worry about marks or indentations on the clamped surface.

High clamping force of up to 150 kg:
The robust steel construction of the screw, shaft, and reinforcements gives this clamp the strength to clamp even the heaviest objects. With a clamping force of up to 150 kg, the Piher Multiclamp can easily handle anything you entrust to it.

Also suitable for clamping smaller diameters:
Nylon jaws with a non-slip coating protect even delicate pipes and profiles from damage. The Piher Multiclamp is the ideal choice for clampinga widerange of diameters from 18 to 48 mm.

Suitable for flat surfaces, shapes, and tubes:
Whether you need to clamp it to a flat board, a shaped part, or a pipe, the Piher Multiclamp is ready for any challenge. The well-thought-out jaw design and adjustable base make this clamp a true all-rounder.

Premium quality from a Spanish manufacturer:
With the Piher Multiclamp, you get a top-of-the-line product designed and manufactured with attention to every detail. Trust your clamping needs to Spanish quality with a long-standing tradition.
With the versatile Piher Multiclamp, you can handle any clamping task quickly, reliably, and without compromise. Its unique combination of strength, precision, and flexibility makes it an indispensable tool for any workshop or assembly line.

 Technical specifications:

• Clamping force: 150 kg
• Jaw width: 50 mm
• Clamping diameter range: 18–48 mm
• Net weight: 0.38 kg

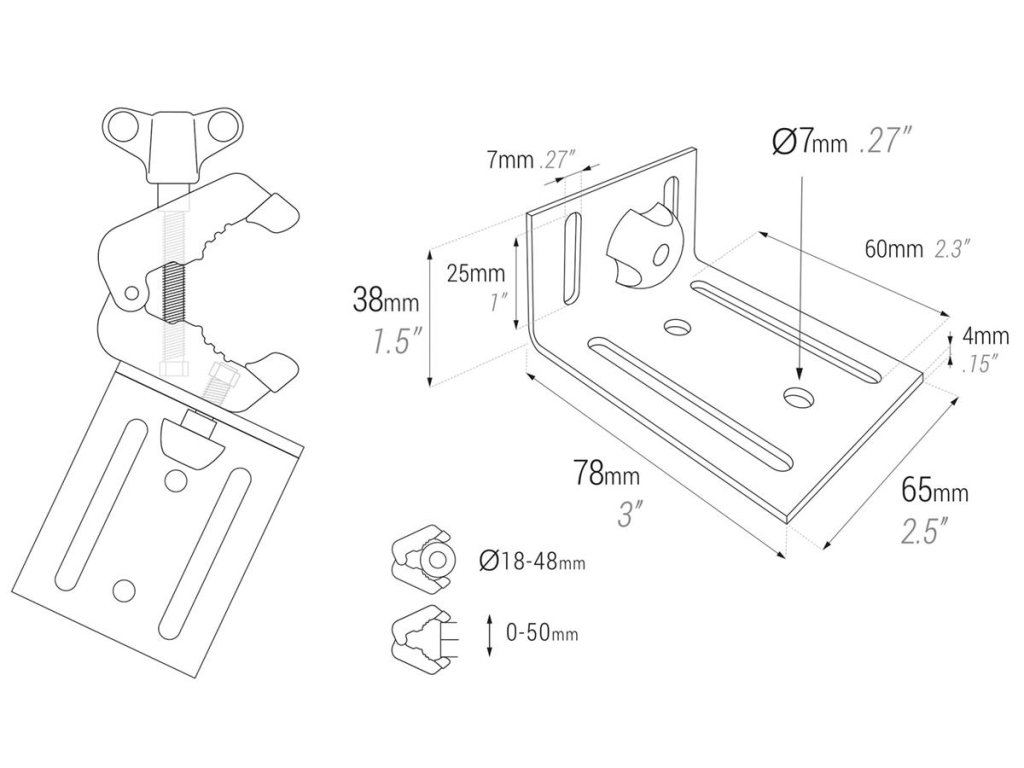

• Dimensions of the angle bracket’s contact surface: 75 x 65 mm with two 60 mm and two 25 mm holes and two 7 mm holes

Scope of delivery

• Package includes: 1x Piher Multiclamp with adjustable support
