    Milescraft | Drilling template for NK hinges

    Code: M1342
    The average product rating is 5,0 out of 5 stars. 4 ratings Rating details
    Vrtání otvoru pro miskový pant – horní frézka/vrtačka s přípravkem Milescraft
    893 Kč
    In stock (>10 pcs)
    Delivery to:
    16/06/2026
    Delivery options

    Milescraft - drilling template for NK hinges

    Tool for drilling furniture hinges with countersunk bowl. The kit contains everything you need for precise assembly of door hinges and doors in furniture production. You can easily achieve the perfect result.

    Detailed information

    If you order by 12:00, you will receive it the next working day.
    If you order by 12:00, you will receive it the next working day.
    Personal collection in Prague-Uhříněves with the possibility of testing.
    Personal collection in Prague-Uhříněves with the possibility of testing.
    Not sure? Call, write – we'll always help.
    Not sure? Call, write – we'll always help.
    Does your tool need repair and care? Service and parts – we'll take care of everything.
    Does your tool need repair and care? Service and parts – we'll take care of everything.

    Related products

    4000 A1
    Milescraft | FaceClamp - universal pliers clamp
    In stock (>10 pcs)
    from 449 Kč

    Pliers from Milescraft® are ideal for joinery work. Universal clamps are particularly suitable for use with drilling fixtures.

    + more
    Code: M4000
    Milescraft | Přípravek na vrtání dvířkových úchytek
    Milescraft | Tool for drilling door handles
    The average product rating is 5,0 out of 5 stars.
    In stock (>10 pcs)
    893 Kč

    Use the Milescraft template to quickly and easily drill precise holes for furniture mounts, both horizontal and vertical. In addition, you can also drill central fasteners such as knobs (buttons) with it, which ensures universal applicability in all types of construction and furniture.

    Code: M1340
    Automatická tužka Pica Fine Dry 0,9 mm s ochranným pouzdrem
    318 Kč –5 %
    Pica Fine Dry | Pencil for the most precise marking with 0.9 mm tip
    The average product rating is 5,0 out of 5 stars.
    In stock (8 pcs)
    299 Kč
    New: Maximum precision without sharpening. The special ink diameter of just 0.9 mm is ideal for fine and precise marking without sharpening.
    Code: 7070
    Festool | Akumulátorový vrtací šroubovák CXS 18-Basic v systaineru
    FREEFREE 7 295 Kč –12 %
    Festool | Cordless Drill Driver CXS 18-Basic
    In stock at the supplier, availability within 7 days
    6 368 Kč

    Lightweight, compact and admirably powerful. Ergonomic C-shape facilitates precise work thanks to the handle position in the drilling and screwdriving axis

    Code: 576882
    Milescraft 4023 srůl u vrtačky
    Action
    Milescraft | TrackMaster - T-slot lever clamp
    The average product rating is 4,0 out of 5 stars.
    In stock (>10 pcs)
    1 057 Kč

    Milescraft TrackMaster™ T-Slot Clamp - a versatile, customizable and compatible tool that lets you work faster, more efficiently and more safely.

    Code: M4023
    Festool | Akumulátorový vrtací šroubovák CXS 12 2,5-Plus v systaineru
    FREEFREE 8 693 Kč –13 %
    Festool | Cordless drill driver CXS 12 2.5-Plus
    In stock at the supplier, availability within 7 days
    7 553 Kč

    Our smallest with 12 volts. The hero among compact screwdrivers. Lightweight, compact and admirably powerful. The CXS 12 compact screwdriver is your ideal tool for a wide range of everyday tasks.

    Code: 576864
    Festool | Akumulátorový vrtací šroubovák CXS 12 2,5-Set
    FREEFREE 11 826 Kč –13 %
    Festool | Cordless Drill Driver CXS 12 2.5-Set
    In stock at the supplier, availability within 7 days
    10 275 Kč

    Our smallest with 12 volts. The hero among compact screwdrivers. Lightweight, compact and admirably powerful. The CXS 12 compact screwdriver is your ideal tool for a wide range of everyday tasks.

    Code: 576865
    Festool | Akumulátorový vrtací šroubovák CXS 18 C 3,0-Plus v systaineru
    FREEFREE 11 916 Kč –12 %
    Festool | Cordless drill driver CXS 18 C 3.0-Plus
    In stock at the supplier, availability within 7 days
    10 382 Kč

    Lightweight, compact and admirably powerful. Ergonomic C-shape facilitates precise work thanks to the handle position in the drilling and screwdriving axis

    Code: 576883
    Festool | Akumulátorový vrtací šroubovák TXS 18-Basic v systaineru
    FREEFREE 7 295 Kč –12 %
    Festool | Cordless drill driver TXS 18-Basic
    In stock at the supplier, availability within 7 days
    6 368 Kč

    Lightweight, compact and admirably powerful. Ergonomic C-shape facilitates precise work thanks to the handle position in the drilling and screwdriving axis

    Code: 576894
    ica 70705 set na blistru pentilka pica fine dry 7070 a nahradni tuhy pica 7050 h
    455 Kč –3 %
    Pica | Fine Dry - blister micropencil with a 0.9 mm tip
    The average product rating is 5,0 out of 5 stars.
    In stock (4 pcs)
    439 Kč
    Maximum precision without focusing. The special ink diameter of just 0.9 mm is ideal for fine and precise marking without sharpening.
    Code: 70705
    CMT| Sukovník ruční C512 - vrtání do měkkého, tvrdého dřeva a lamina
    from 727 Kč up to –5 %
    CMT | Hand-held knotter C512 - drilling into softwood, hardwood and laminate
    In stock (1 pcs)
    from 691 Kč

    CMT | The C512 series is a high quality jigsaw for precision drilling in softwood, hardwood and laminate. It is equipped with two pre-cutting tips, a centering tip and two cutting teeth, all made of carbide, ensuring long life and efficient performance. Its design makes it suitable for use with both hand-held and stationary drills.

    + more
    Code: C51215011
    Premium sukovník HW - precizní nástroj pro náročné vrtání
    from 462 Kč up to –5 %
    Premium HW drill bit - a precise tool for demanding drilling
    In stock (1 pcs)
    from 439 Kč

    The IGM | Premium Drycleaner is a proven helper for professionals and DIYers alike. For drilling precise holes in soft and hard wood, exotic woods, plywood, artificial stone, plastic and laminate. The hard-metal tips guarantee high durability and long service life.

    + more
    Code: 043001000
    Oren | Sukovník (Forstnerův vrták) tvrdokovový do dřeva a lamina.
    Oren | Carbide drill bit (Forstner drill) for wood and laminate
    In stock (1 pcs)
    from 393 Kč

    For all wood materials, from softwood and hardwood to plywood, chipboard and laminate.

    + more
    Code: 423115
    Festool | Akumulátorový vrtací šroubovák CXS 18V - Basic - Set
    FREEFREE 10 804 Kč –14 %
    Festool | Akumulátorový vrtací šroubovák CXS 18V - Basic
    In stock at the supplier, availability within 7 days
    9 263 Kč

    Lightweight, compact and admirably powerful. Ergonomic C-shape facilitates precise work thanks to the handle position in the drilling and screwdriving axis

    Code: 577333
    Festool | Akumulátorový vrtací šroubovák CXS 18V C - 3,0 - Set
    FREEFREE 15 146 Kč –14 %
    Festool | Cordless drill driver CXS 18V C - 3.0-Plus
    In stock at the supplier, availability within 7 days
    13 006 Kč

    Lightweight, compact and admirably powerful. Ergonomic C-shape facilitates precise work thanks to the handle position in the drilling and screwdriving axis

    Code: 576884
    Festool | Akumulátorový vrtací šroubovák TXS 18V - Basic-Set
    FREEFREE 10 804 Kč –14 %
    Festool | Akumulátorový vrtací šroubovák TXS 18-Basic
    In stock at the supplier, availability within 7 days
    9 263 Kč

    Lightweight, compact and admirably powerful. Ergonomic C-shape facilitates precise work thanks to the handle position in the drilling and screwdriving axis

    Code: 577335
    Show all related products Previous product Next product

    Product detailed description

    No more guesswork or inaccuracies—just perfect results on the first try

    Technical Specifications

    • Hinge cup diameter: Ø 35 mm
    • Hinge cup offset from door edge:2.5 / 3 / 4 / 5 / 6 / 7 mm
    • Hinge position from top/bottom edge:76 / 102 mm (3" / 4")
    • Cup drilling depth:12.7 or 13 mm
    • Drill bit:35 mm (SK) hole saw, 9.5 mm (3/8") shank
    • Depth stop: split stop 9.5 mm (3/8")
    • Allen screw:3 mm

    Milescraft Drilling Template for NK Hinges

    The Milescraft drilling template for NK hinges significantly simplifies and speeds up the process of installing furniture hinges. This tool also reduces the risk of errors during installation, leading to more precise results.

    With this template, you can quickly and easily create perfectly precise holes for hinges in your furniture. This will make your work more efficient and give your finished furniture a professional look.

    Milescraft | Drilling template for NK hinges
    Milescraft | Drilling template for NK hinges

    An indispensable tool for everyone!

    The template offers precise adjustment of the hinge offset, a locking pin to determine the correct distance, and a drill guide that ensures perfect drilling accuracy.

    This template is an indispensable tool for every DIYer and carpenter looking for professional results without the need for tedious measuring and marking.

    Precision and Speed

    Precise hinge offset adjustment: This product excels in its ability to provide precise hinge offset adjustment, which is key to the perfect finish of every piece.

    Fast and efficient work: Thanks to Milescraft’s innovative technology and high-quality materials, this product ensures fast and efficient work without the frustration.

    Milescraft | Drilling template for NK hinges

    Strengths of the template

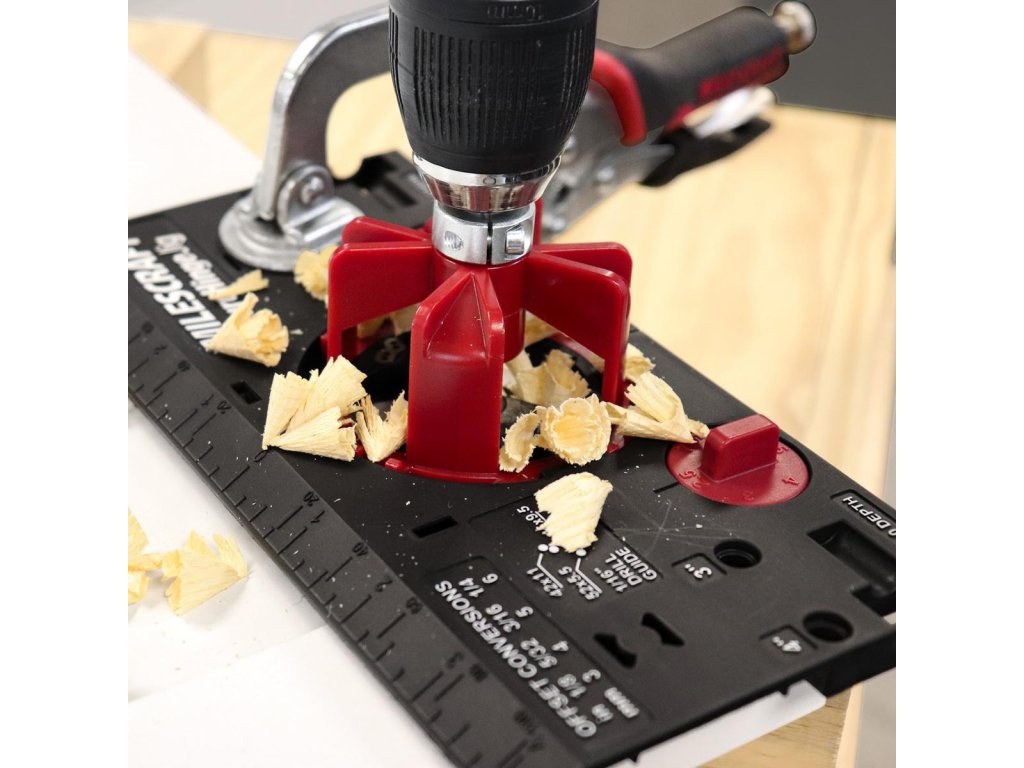

    The Milescraft EuroHingeJig drilling template ensures that 35 mm cup hinges fit perfectly every time. After installation, the door closes straight, the gaps are even, and the hinges are neither “sunken” nor protruding toward the edge.

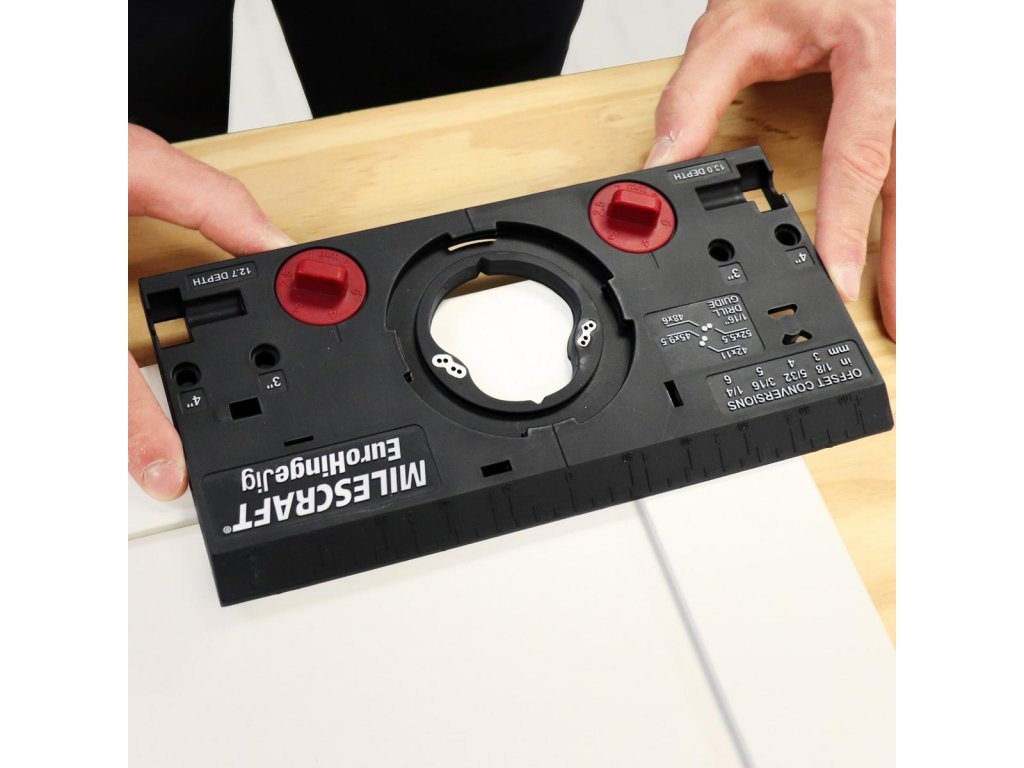

    Place the jig directly on the door, set the cup offset and distance from the edge, and drill through the metal guide sleeve, which keeps the 35 mm drill bit centered. The result is a clean hole without tearing or the drill bit slipping.

    Pilot hole guides are integrated into the template body, so the hinge sits exactly where it should. A removable marking guide then allows you to transfer the hinge centerline to the cabinet body or front frame without having to measure and mark again.

    Compatibility

    • Doors: overhanging, semi-overhanging, and inset

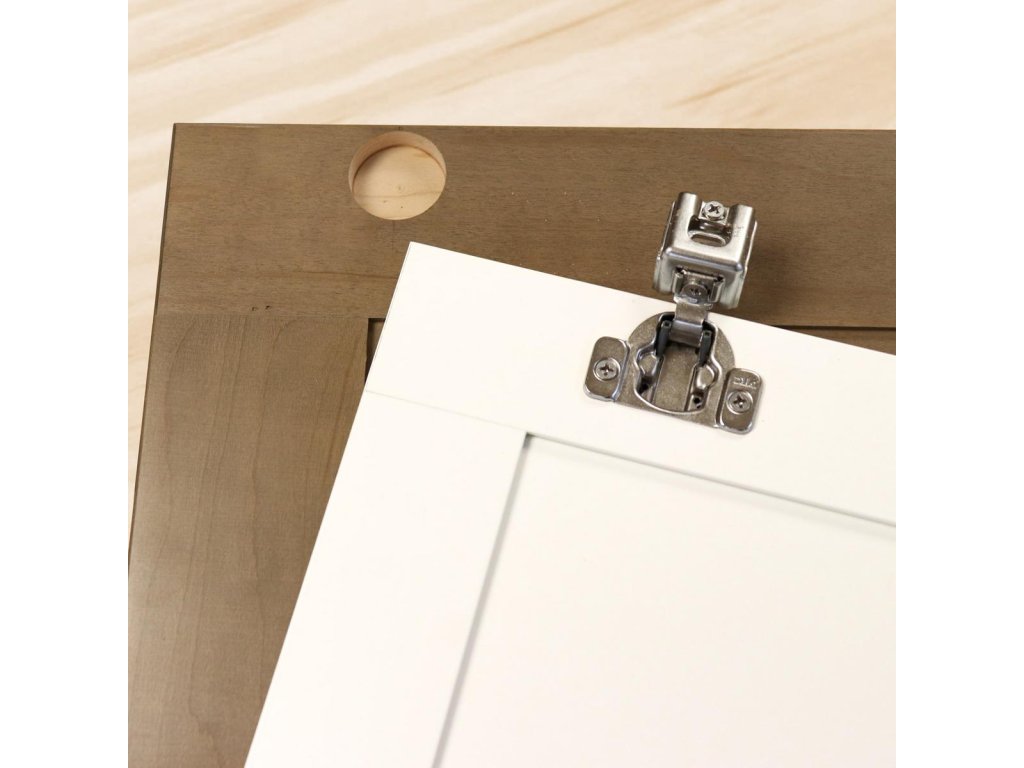

    • Hinges: cup hinges Ø 35 mm
    • Cabinetbodies: frameless (Euro) and with a front frame

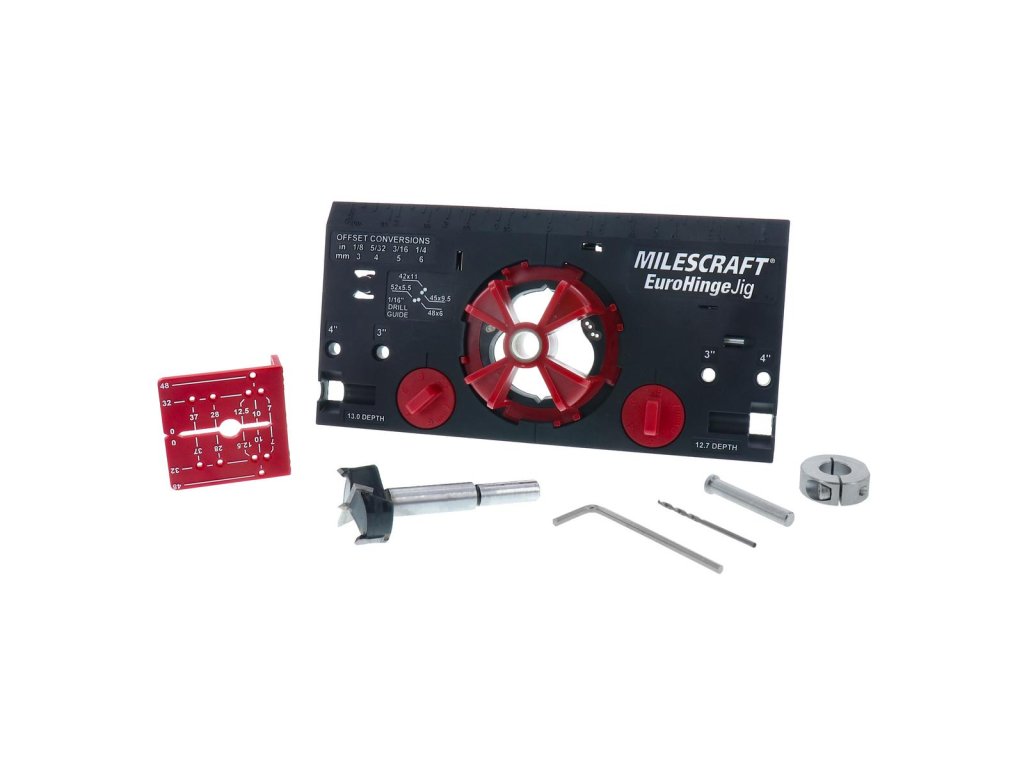

    Scope of delivery

    • Drilling template with guide sleeve

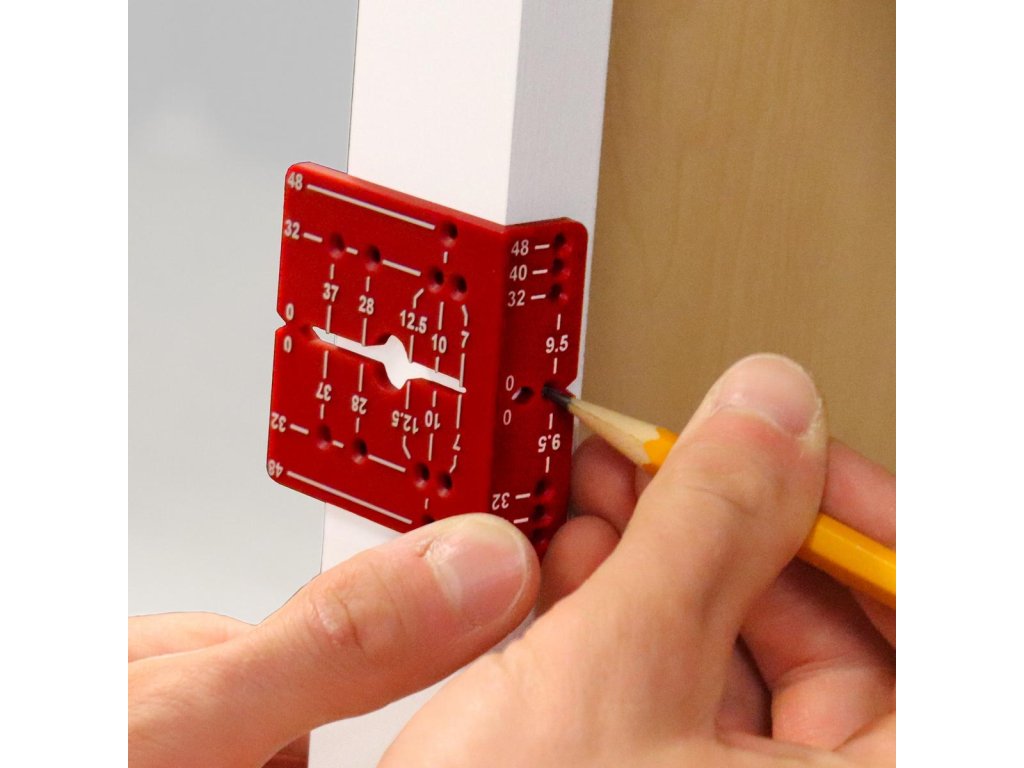

    • Removable marking guide
    • Center punch Ø 35 mm
    • Pilot drill bit 1/16"

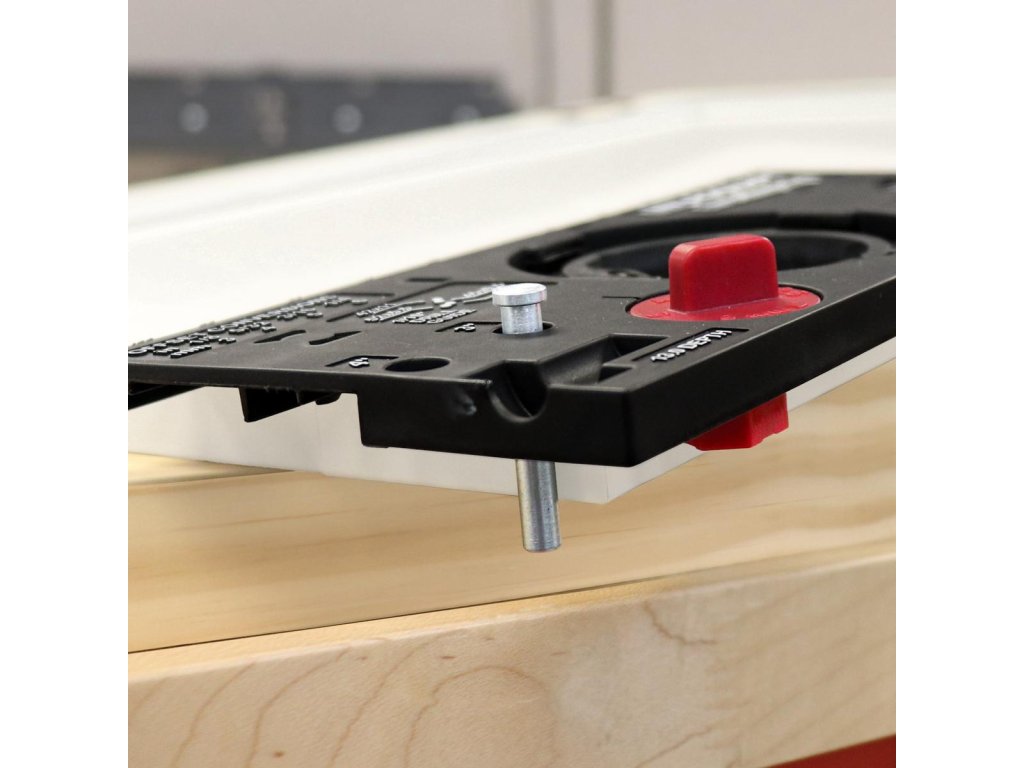

    • Locking pin
    • Split depth stop 3/8"
    • 3 mm Allen wrench

    Check out this practical demonstration:

    Additional parameters

    Category: Drilling and routing templates
    Warranty: 2 years
    Weight: 0.44 kg
    EAN: 737888134205
