    Milescraft - tool for milling small circles

    Code: M1260
    Not rated Rating details
    Milescraft - přípravek pro frézování malých kružnic
    987 Kč Measure price:
    In stock (6 pcs)
    Delivery to:
    18/09/2026
    Delivery options

    Milescraft® - a new product for milling small circles - SmallCircleCompass™. You need to cut a circle with a diameter of 38 mm or 305 mm. SmallCircleCompass™ can do it without any problems.

    Detailed information

    If you order by 12:00, you will receive it the next working day.
    If you order by 12:00, you will receive it the next working day.
    Personal collection in Prague-Uhříněves with the possibility of testing.
    Personal collection in Prague-Uhříněves with the possibility of testing.
    Not sure? Call, write – we'll always help.
    Not sure? Call, write – we'll always help.
    Does your tool need repair and care? Service and parts – we'll take care of everything.
    Does your tool need repair and care? Service and parts – we'll take care of everything.

    Related products

    C174 drazkovaci frezy se zavrtnym zubem 2 web
    from 604 Kč up to –5 %
    CMT C174 Grooving cutter
    The average product rating is 5,0 out of 5 stars.
    In stock (1 pcs)
    from 574 Kč

    CMT cutters have long-lasting HM blades, are precision sharpened, and are suitable for milling softwood, hardwood, glulam, DTD, laminate, MDF and Corian. Also suitable for CNC machining.

    The sharpening of the cutter face allows deep drilling operations.

    Code: C17408011
    C174 drazkovaci frezy se zavrtnym zubem 2 web
    from 877 Kč up to –5 %
    CMT | Drážkovací a závrtávací fréza / stopka Ø12mm
    In stock at the supplier, we ship within 72 hours.
    from 833 Kč

    CMT cutters have long-lasting HM blades, are precision sharpened, and are suitable for milling softwood, hardwood, glulam, DTD, laminate, MDF and Corian. Also suitable for CNC machining.

    The sharpening of the cutter face allows deep drilling operations.

    Code: C17710011

    Product detailed description

    Imagine being able to perfectly mill small circles with absolute precision and ease.

    • The Small Circle Milling Tool is a cutting-edge tool that pushes the boundaries of what you can achieve with your milling machine.
    • Thanks to the universal TurnLock™ base plate, which is compatible with almost any milling machine.
    • The built-in metric scale with readout window allows you to adjust the diameter of the inner and outer cut with absolute precision.
    • The TurnLock™ head allows you to quickly attach the milling machine with the SmallCircleCompass™.
    • Do you need to cut a circle with a diameter of 38 mm or 305 mm? SmallCircleCompass™ can do it without any problems.
    • And what's the best thing about it? Thanks to the patented TurnLock™ technology, you can quickly change guide bushes and cutter attachments without tools.
    • Thumb-activated locking/release mechanism increases speed and safety when changing tools. You no longer have to worry about changing attachments being difficult or dangerous.

    Technical data:

    • Min/max circle diameter 38-305 mm.
    • Material: plastic and aluminium

    Scope of delivery:

    • Prep base.
    • Aluminium guide ruler.
    • TurnLock™ motherboard.
    • Grooving cutter 6,35 mm.
    • Drill 8 mm.
    • The centering thorn.
    • Screws for fixing the milling machine.

    Quick Overview

    ParameterValue
    Circle rangeØ 38–305 mm
    ApplicationInternal and external circles
    Included cutterØ 6.35 mm
    Cutter shank8 mm
    Scalemetric and inch
    Mounting systemTurnLock™
    Milescraft - tool for milling small circles

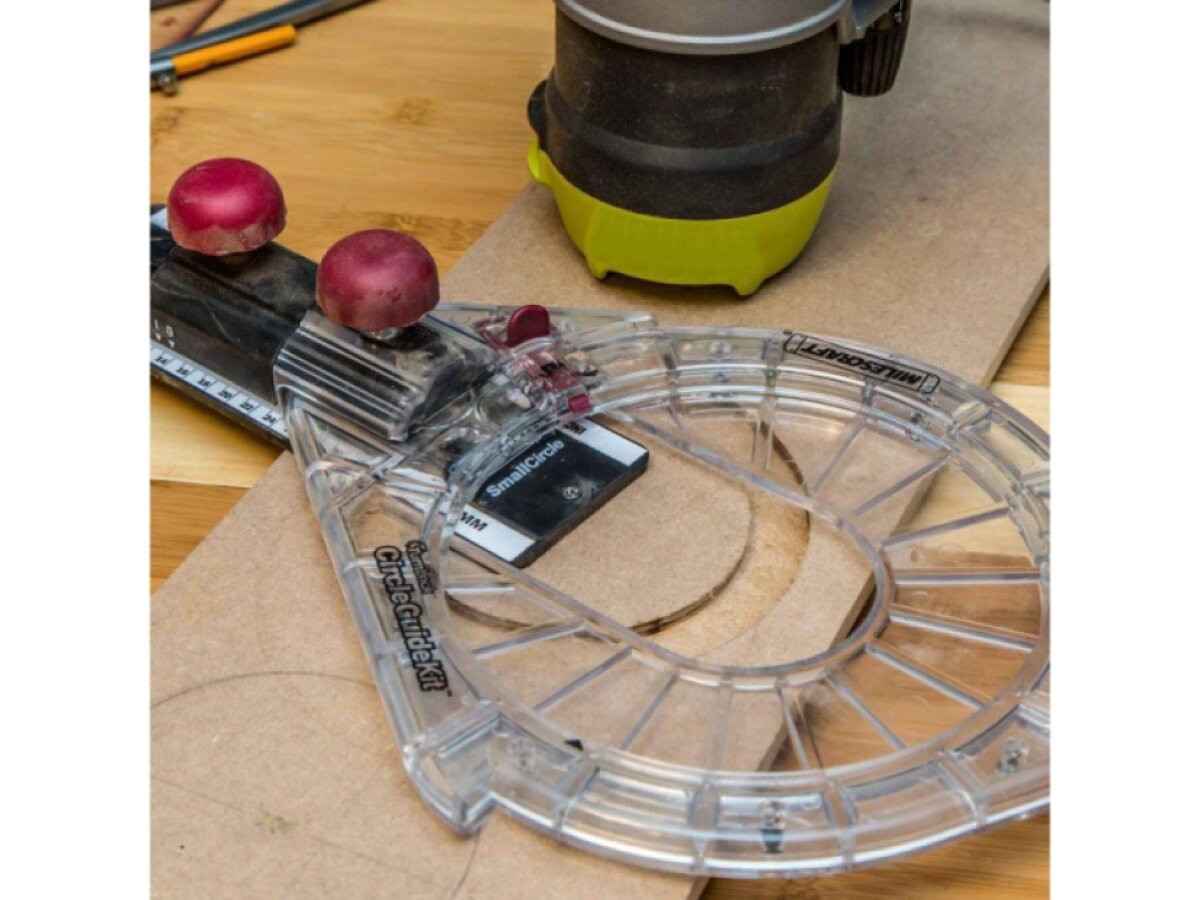

    Precise Circles Without a Template

    With a router, you can create circles with diameters ranging from 38 to 305 mm—including circular holes, individual circular parts, and grooves.

    Set the desired dimension, secure the center, and mill.

    Set both the inner and outer diameters

    The scale distinguishes between internal and external milling, so you can set the desired diameter directly without unnecessary recalculations.

    Milescraft - tool for milling small circles
    Milescraft - tool for milling small circles

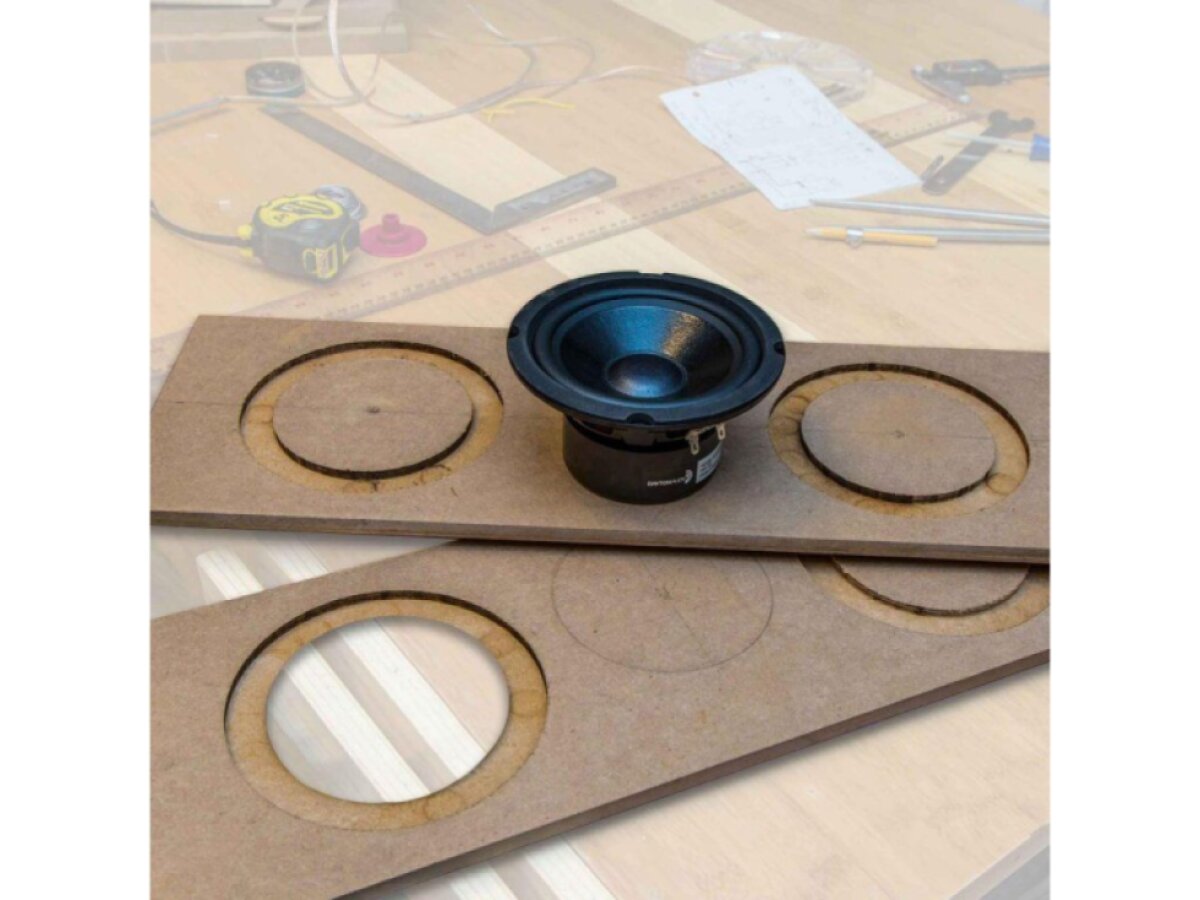

    Circular cutouts tailored exactly to your needs

    Set the desired diameter and mill a precise hole or a separate circular part—without having to create a custom template for each size.

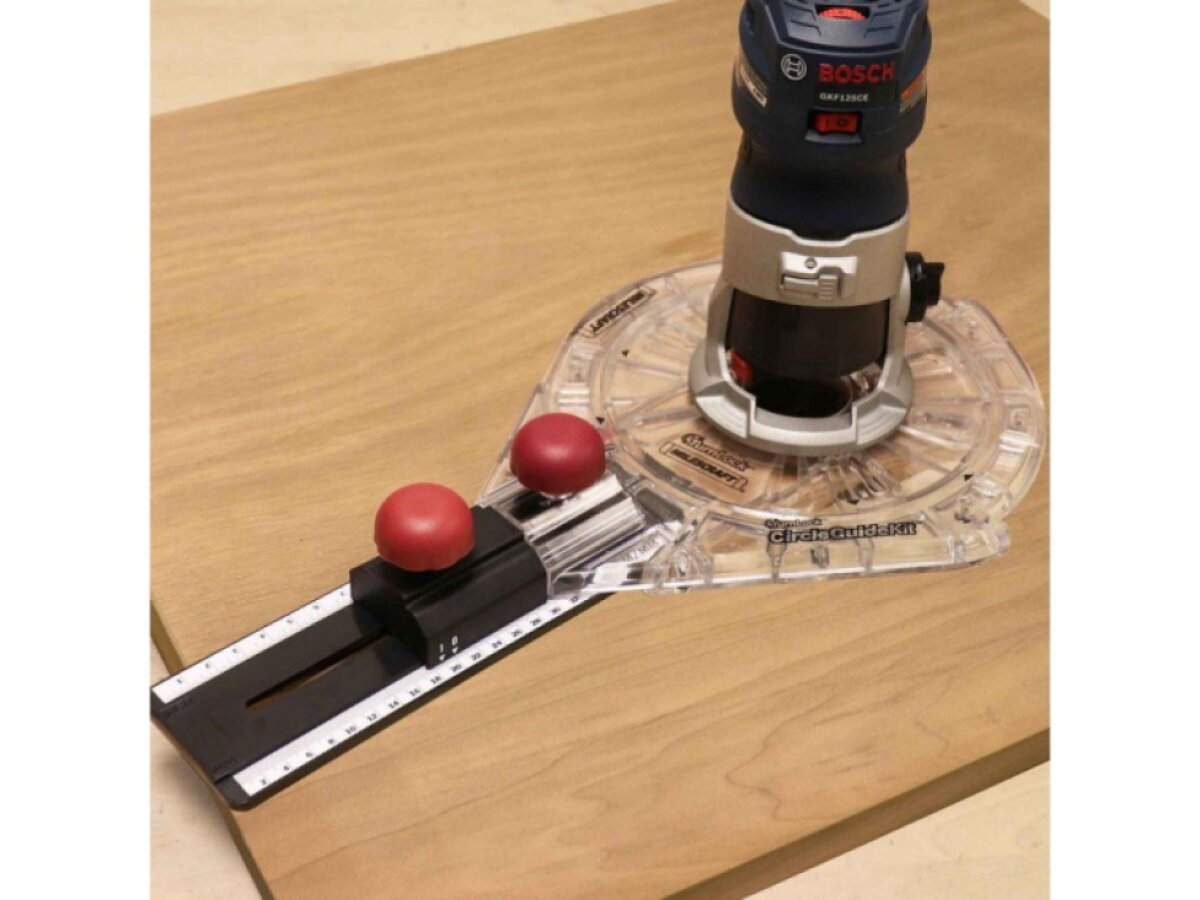

    TurnLock™ – Attach and Mill

    Attach the TurnLock™ base plate to the router, and then quickly mount the compass without any additional screws.

    The system is also compatible with other Milescraft accessories.

    Milescraft - tool for milling small circles

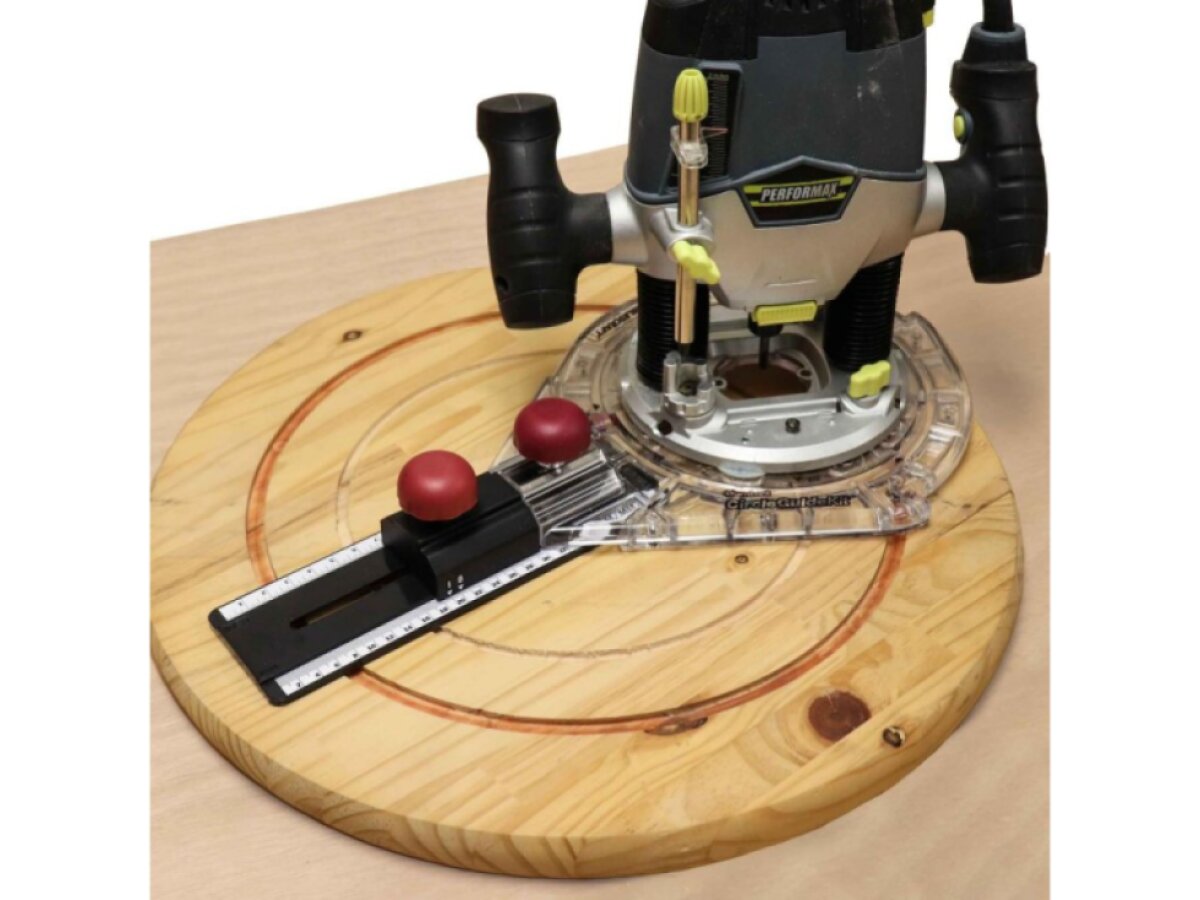

    How does a compass work?

    Secure one end of the tool to the center of the circle you want to draw, and the router rotates around it. You can easily set the desired diameter by adjusting the distance between the router and the center.

    What You Should Know Before Milling

    The SmallCircleCompass rotates around a fixed center point while in use, so you’ll need to account for a small hole in the center of the circle. For deeper or through-cut openings, it’s best to mill the material gradually in several passes.

    Technical Specifications

    ParameterValue
    Milling RangeØ 38–305 mm
    ApplicationInternal and external circles
    Scalemetric and inch
    Included cutterstraight, Ø 6.35 mm
    Cutter shank8 mm
    Guide sleevemetal, 15.9 mm
    Centering drill bit1/8″, approx. 3.17 mm
    Mounting screwsM4 × 10 mm, M5 × 10 mm, M6 × 10 mm
    Mounting systemTurnLock™

    What's Included

    • SmallCircleCompass milling compass with sliding guide
    • TurnLock™ circular guide head with locking mechanism
    • TurnLock™ universal base plate
    • Ø 6.35 mm straight router bit with 8 mm shank
    • 1/8″ center drill
    • 15.9 mm metal guide sleeve
    • Center screw
    • centering pins
    • M4 × 10 mm mounting screws
    • M5 × 10 mm mounting screws
    • M6 × 10 mm mounting screws

    What is the maximum diameter of a circle that can be milled?

    SmallCircleCompass allows you to mill circles with diametersranging from 38 to 305 mm.

    Is this product intended for making holes or circular parts?

    For both. The scale has settings forboth the inner and outer diameters, so you can mill a circular hole or a separate circular part.

    Do I need to do any recalculations when setting the diameter?

    When using the included Ø 6.35 mm cutter, you can set the desired circle diameter directly using the scale for inner and outer cuts.

    Is the milling cutter included as well?

    Yes. The European version of the Milescraft 1260 includes aØ 6.35 mm straight router bitwith an 8 mm shank.

    Milescraft – Smart Jigs for More Precise Work

    Since 2002, the American family-owned brand Milescraft has specialized in developing jigs, guides, and accessories for woodworking and power tools.

    The products are designed in the U.S. with an emphasis on ease of use, precision, and practical solutions for common workshop tasks.

    The product line includes jigs for drilling, routing, joining wood, cutting, clamping, and assembling furniture and doors. The common goal is to make work easier and help achieve precise results without having to create complex, single-purpose templates.

    Additional parameters

    Category: Drilling and routing templates
    Warranty: 2 years
    Weight: 1.1 kg
    EAN: 737888121007
