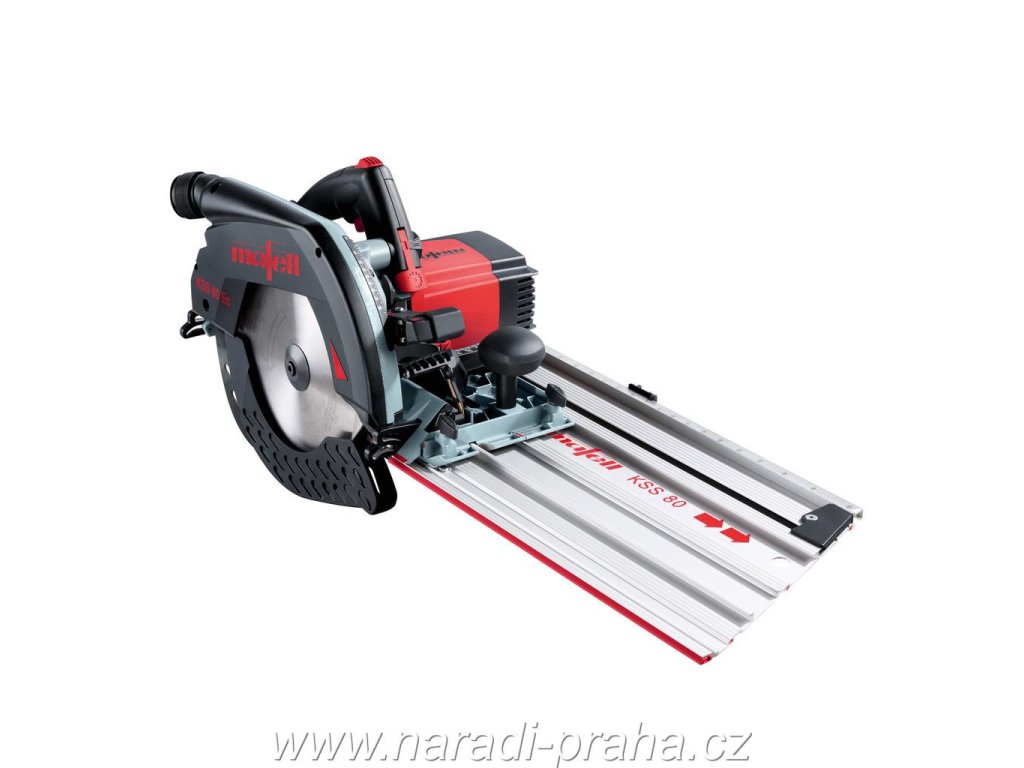

Mafell - Miter saw KSS 80 Ec / 370

Product detailed description

Description:

The new KSS 80 Ec/370 drip system from MAFELL meets power and precision with reduced effort and ergonomics. These features make the machine a unique system.
After each cut, the spring returns the saw back to the starting position. At full cutting depth, the saw allows a cutting length of 370 mm.
Concentrated power and high torque have one name: the CUprex high-torque engine generation with performance-optimised digital electronics sets new benchmarks in terms of saturated performance.
There is no need to disconnect the spreader wedge-FLIPPKEIL guarantees optimum comfort and safety for the user during immersion.

Strengths:

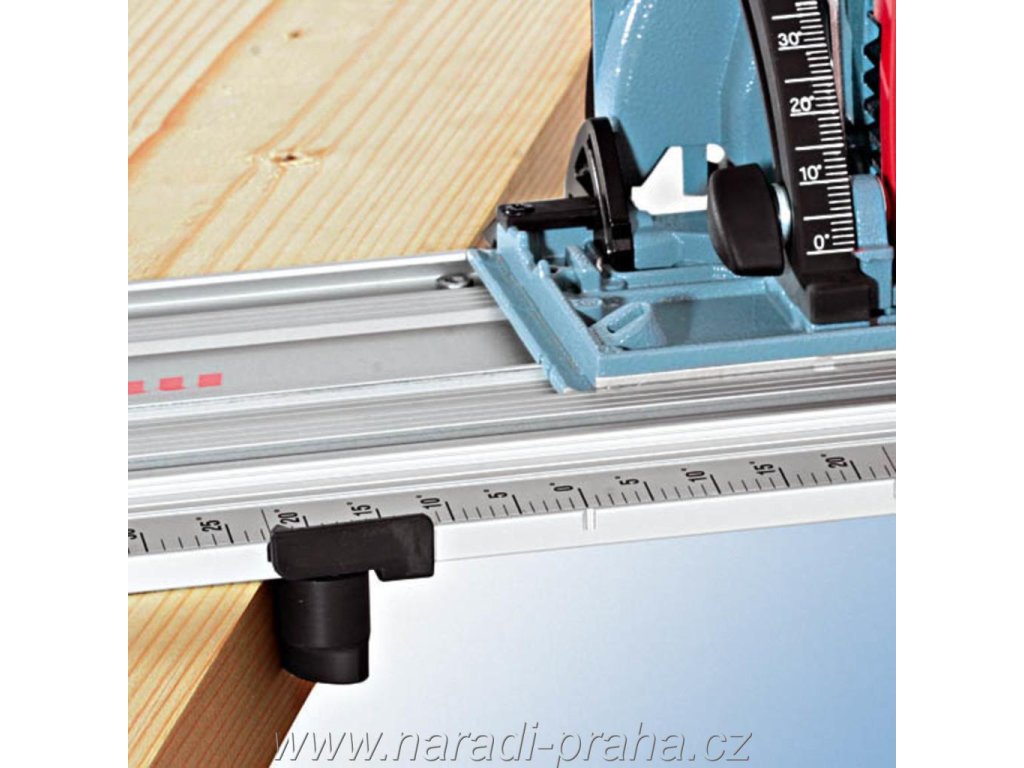

The cutting depth can be adjusted and locked with just one lever.

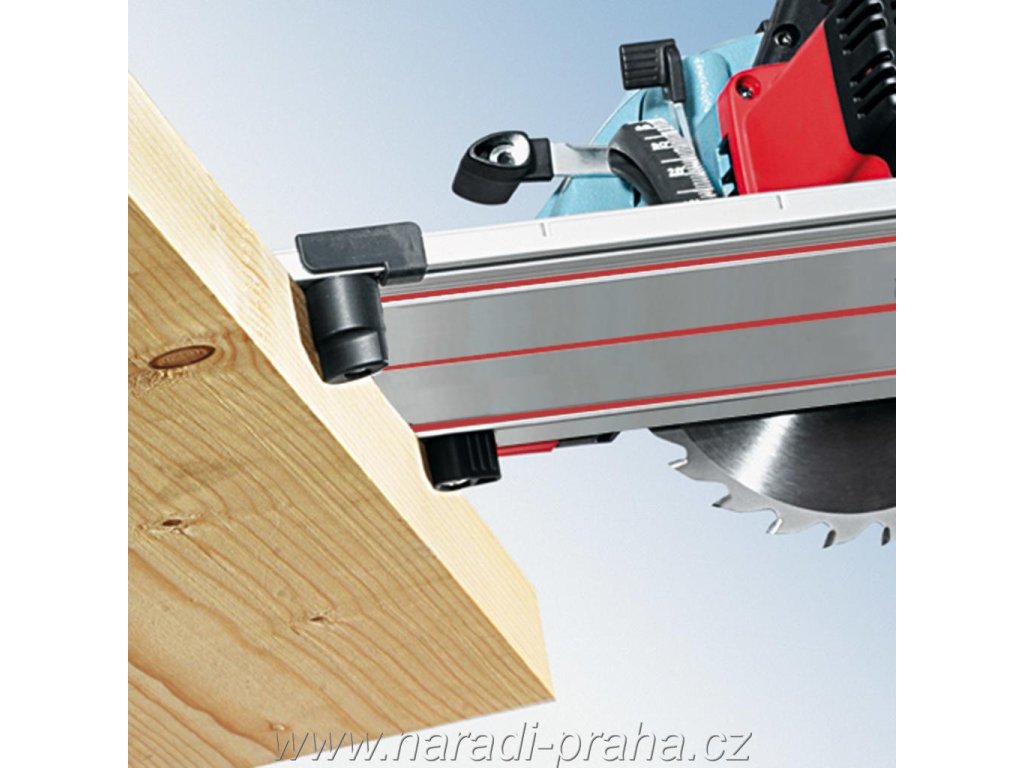

A welded profile on the underside of the rail holds the drip system securely to the part and protects its surface against damage.
The quick release allows the machine to be removed from the rail in one movement. Thus it can be used as a hand-held circular saw with all the functions of the MAFELL KSP series.

Field of application:

Drip cuts with guiding device
Longitudinal and transverse cuts
Submerged cuts and cut-outs
Materials e.g.: solid wood, board materials, insulation material, doors, worktops, interior and renovation

Product Features:

With a high-performance CUprex engine.
Work on material without clamps.
Unique, precise depth adjustment.
Constant cutting point.
FLIPPKEIL retractable spreader wedge.

Technical data:

• Power: 2300 W,
• Universal motor: 230 V / 50 Hz,
• Rated idle speed: 2250 - 4400 rpm,
• Cutting depth: 0 - 82 mm,
• Cutting depth at 45°: 0 - 55.5 mm,
• Depth of cut at 60°: 0 - 38.5 mm,
• Cutting range: 0 - 60°,
• Cutting speed: 25 - 41 m/s,
• Weight: 8.8 kg.

Scope of delivery:

• 1 machine,
• 1 saw blade 237 x 1,8/2,5 x 30 mm, Z 12, WZ, for longitudinal cuts in wood
• 1 suction attachment
• 1 parallel stop
• 1 guiding device 370
• 1 hexagon wrench 5 mm
• 1 supply cable 4 m
