Hedue - Corner template with 13 aluminum rails
Code: M001703Related products
Designed for trimming and edging.
Type F042 is equipped with a copy bearing. Designed for manual milling.
Semi-slotted cutter sets allow you to make an unlimited number of cuts by setting different cutting heights on your cutter and changing the bearings on the cutter included in the set.
Slotting shank cutter with one drilling razor blade and one cutting razor blade. It has excellent drilling properties in hardwood and board materials (laminate, chipboard, MDF and Corian). The 20 mm diameter shank is designed for safe clamping in CNC machining centres at high feed rates. Can also be used for manual milling.
The milling cutter is equipped with a drilling razor blade, which makes it easier to drill into the material.
- Clean, perfect cuts in boards or drawer fronts
- For edge beveling
- For milling lettering
Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades that can also be rotated. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
These cutters are designed for trimming, shaping and grooving.
For direct drilling, use type F044.
Ideal tool for engraving and lettering. If you find the razor dull or worn, simply flip it over and use another of the sharp blades. The locking screw safely secures the razor blade and thus ensures precision work.
- Replaceable razor blades made of micro-grain carbide.
- The razor blades can be rotated by 90° for a total of 4 cutting edges.
- The razor blades are fixed with special Torx screws.
- Cutter body made of high-quality steel.
The cutter is equipped with two double-edged razor blades for rounding the edges. The radius is ground on all 4 sides of the razor for maximum tool efficiency. The cutter is fitted with a razor blade with a radius of R3mm or R2mm, which is mainly used on ABS edges. It is also possible to buy a radius R1mm and R1,5 mm, which can be used to cut the edge when gluing umakarte, veneer or laminate on boards. For use on manual top milling machines.
Plate milling cutter without countersink, for milling grooves from 1.5 - 6 mm wide. The drift shank can be freely combined to create a groove according to your own requirements.
Use type 3 (without copy bearing) 4B (with copy bearing).
HM surface milling cutter - D60x12 L80 S=12x50 Z3 - ideal tool for large material removal from large surfaces.
The cutter is designed for trimming and chamfering edges.
Type F046 is without bearing. Designed for manual milling and also for machine milling on CNC centres.
Special blade geometry for laminate and chipboard machining. The design of the F047-123 gives a cutting depth of 40 mm even when using a 29.5x9x1.5 mm blade if you are milling multiple passes through the material. Excellent use for cutting, shaping and grooving laminate or kitchen worktops using the top router and templates. Can be used for manual milling or on CNC machining centres.
CMT cutters have long-lasting HM blades, are precision sharpened, and are suitable for milling softwood, hardwood, glulam, DTD, laminate, MDF and Corian. Also suitable for CNC machining.
The sharpening of the cutter face allows deep drilling operations.
Product detailed description

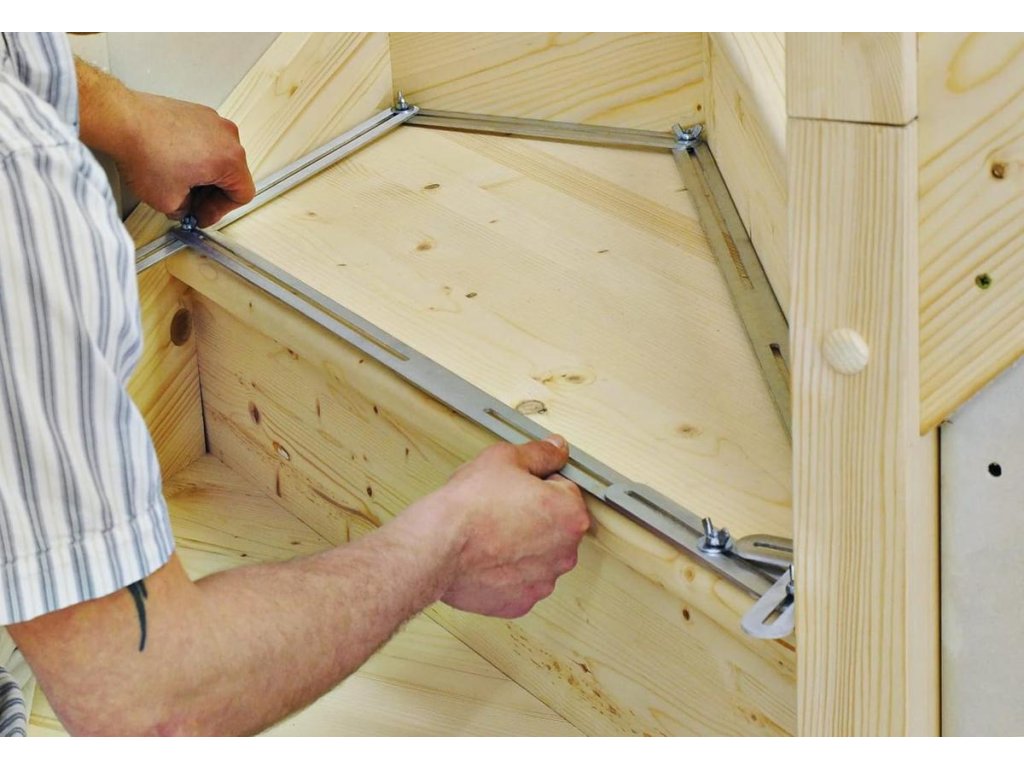

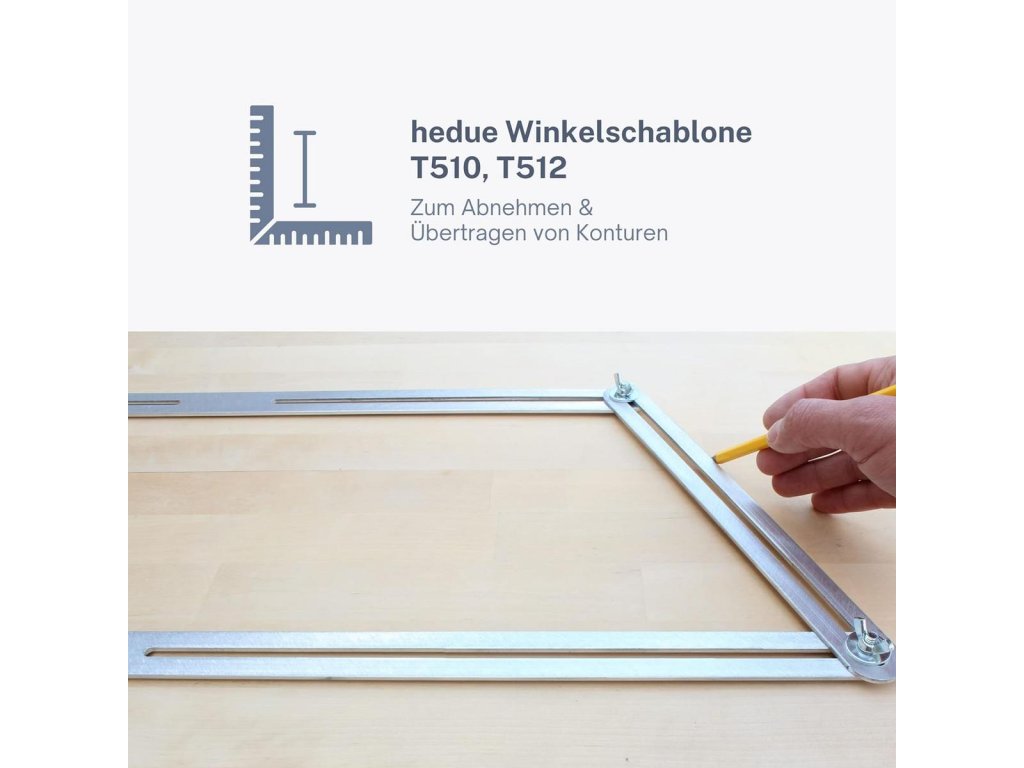

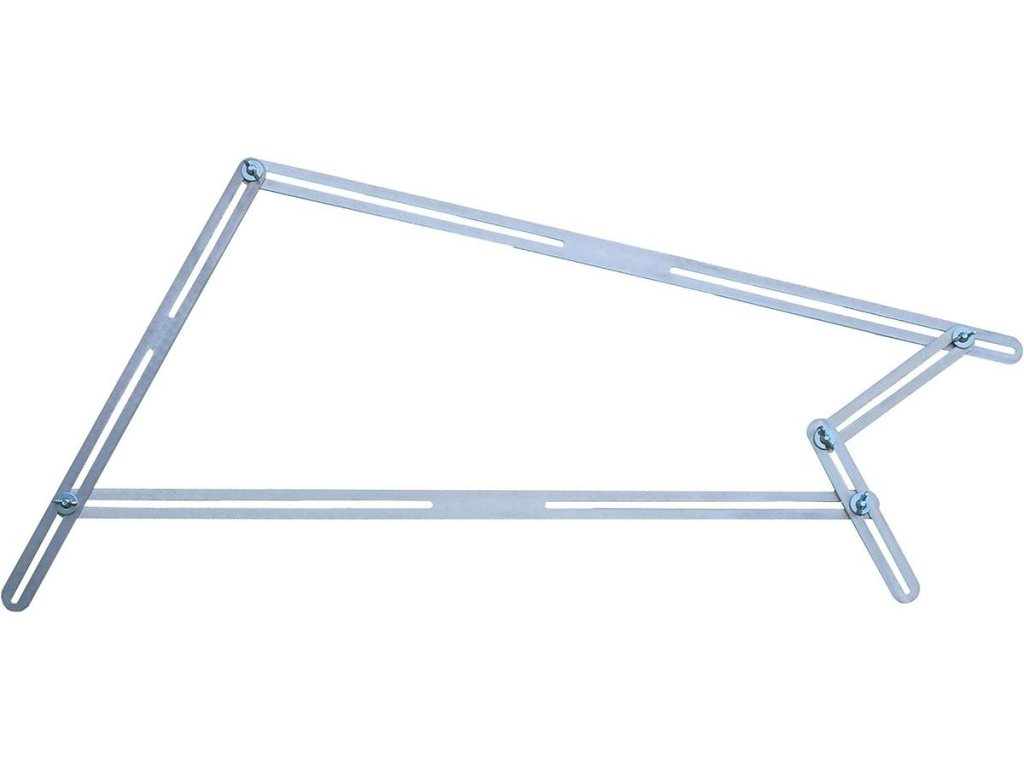

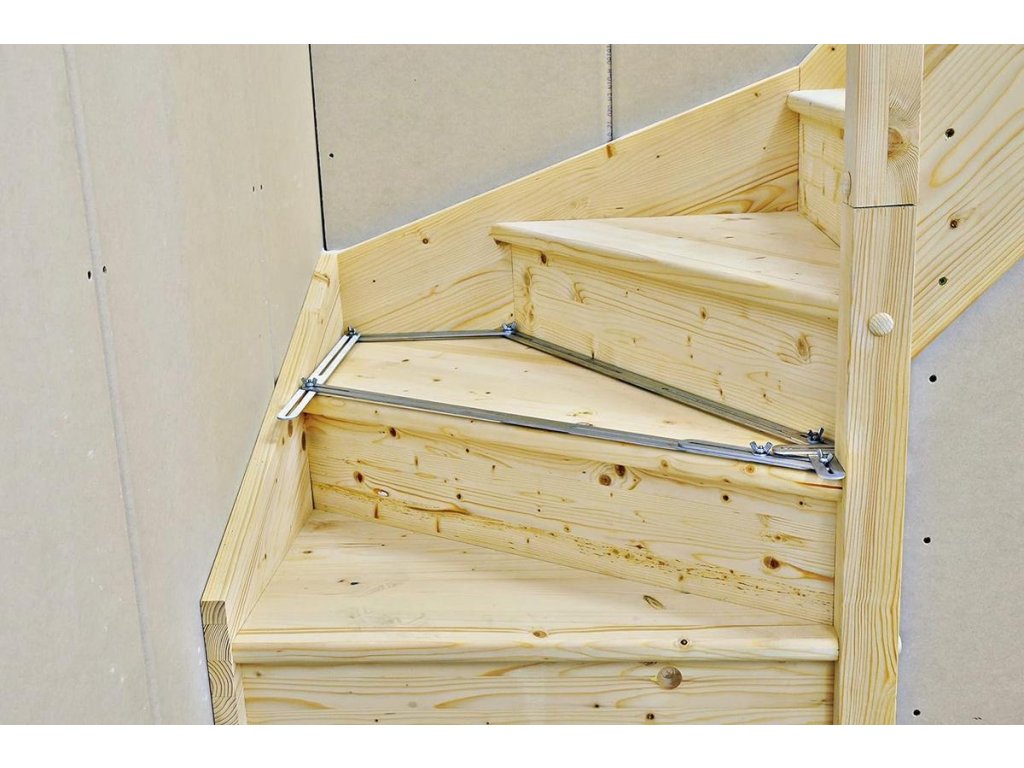

It is a cleverly designed tool that is much simpler and more accurate than traditional methods of measuring contours, whether using a tape measure or creating paper templates. With this angular template, any shape can be easily created. Just connect the different aluminium strips and you're done.
Not only is this template made from high quality aluminium strips, but it also comes in a wooden box, which is ideal for easy storage and carrying.
- Save time and effort - with this tool you can quickly and easily transfer any contour to the material.
- Easy to use - the simplicity of this tool makes it ideal for professionals and DIYers alike.
- Accuracy - this template is much more accurate than traditional contour measurement methods.
- Flexibility - thanks to the different aluminium rails, almost any desired shape can be created.
Additional parameters
Category: | Drilling and milling jigs |
---|---|
Warranty: | 2 years |
Weight: | 3.1 kg |
