Flex - SBG 4910 Band saw for metal with swinging saw arm

Product detailed description

Use:

• 2 belt speeds: for cutting solid and hollow profiles
• Recommended belt speeds: grade I - full steel, stainless steel, aluminum material. Grade II - steel, stainless steel, aluminium tubes
• Cutting options without table: 90° straight cut, round and square profile max. 80 mm, rectangular cross cut max. 100 x 80 mm, free 150 x 80 mm

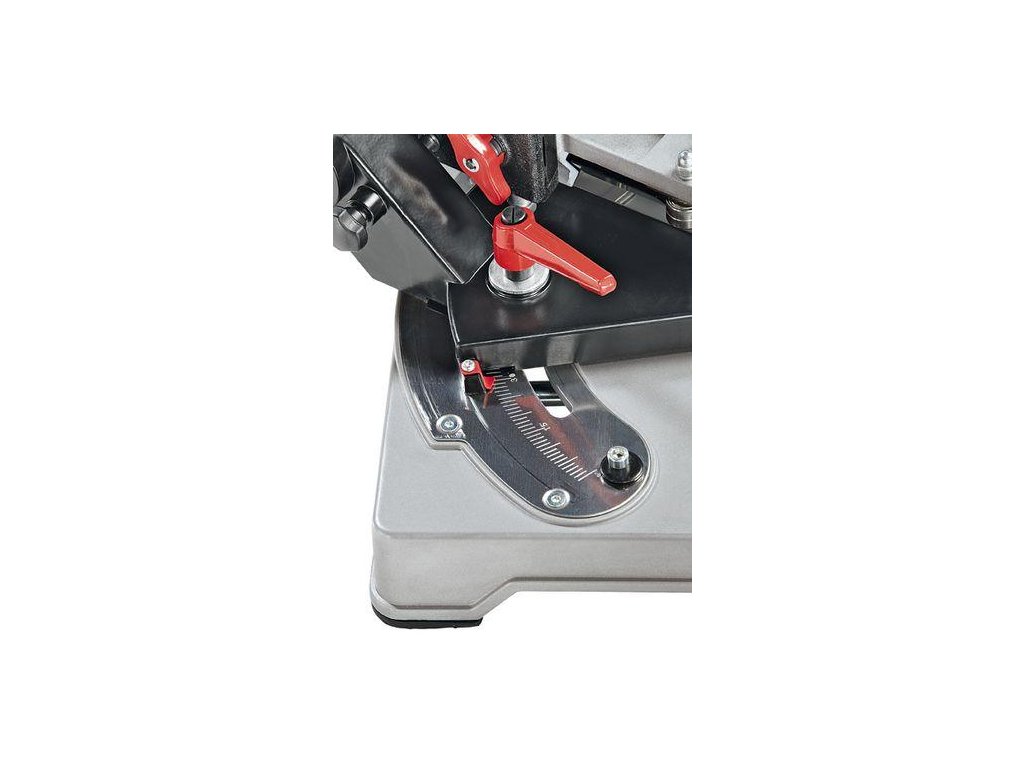

• Smooth, tool-free adjustment at cutting angles from 0 to 45°.

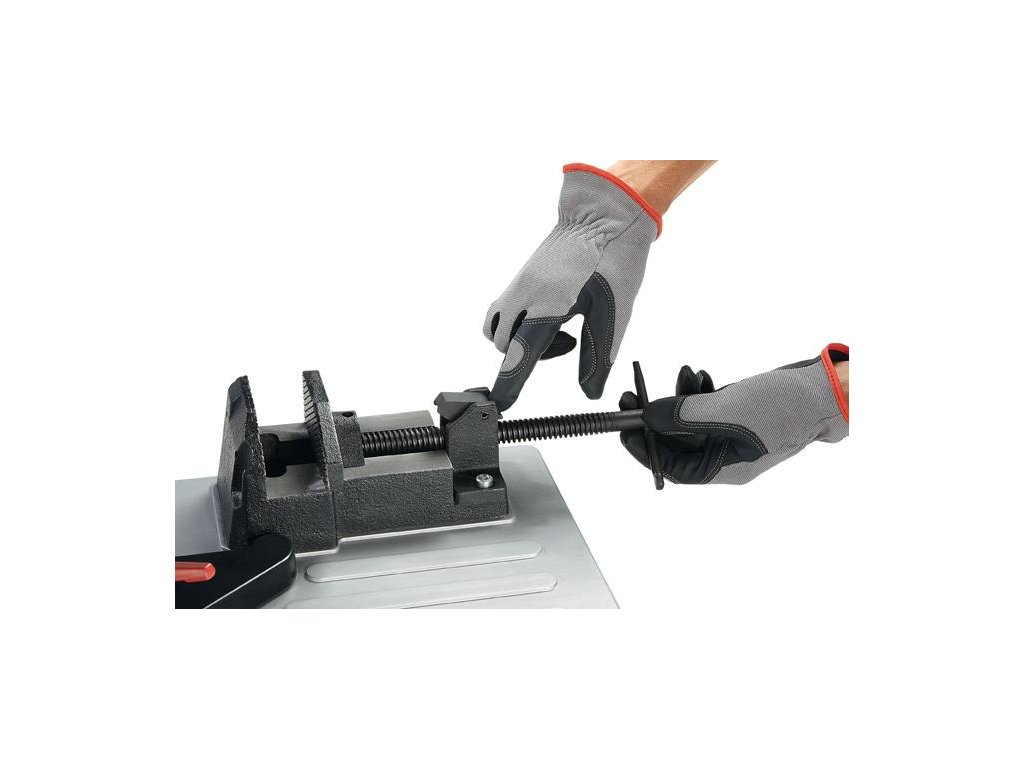

• With workbench, easy handling for manual use

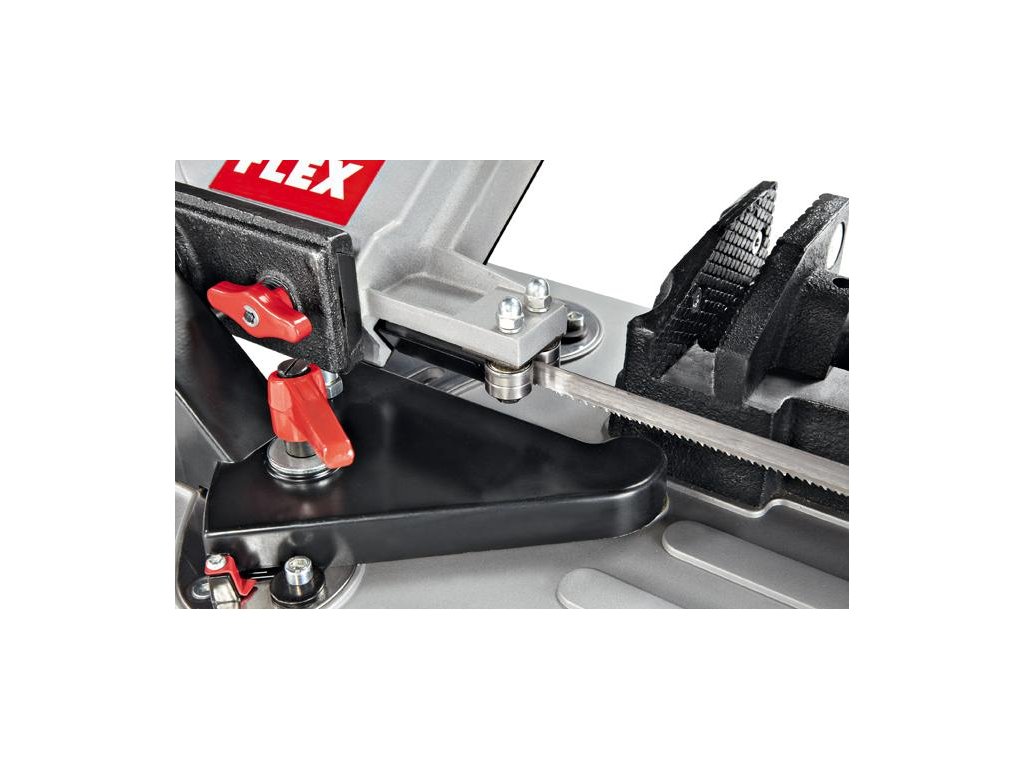

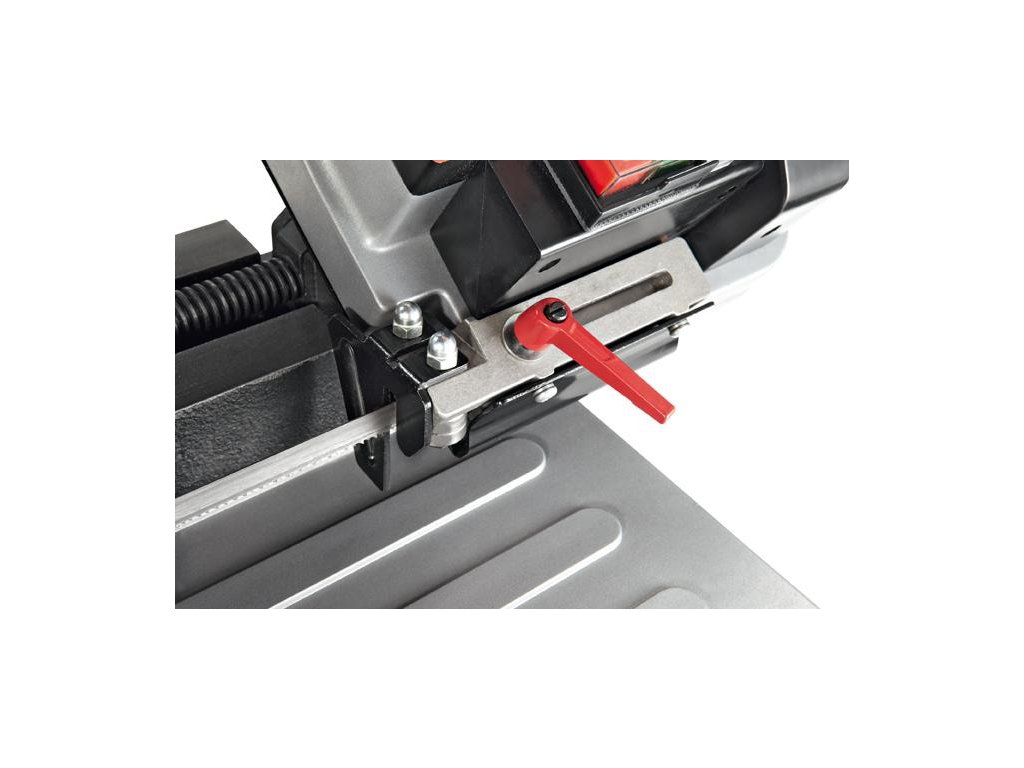

• 3-point saw blade guide with ball bearings for optimum cutting performance

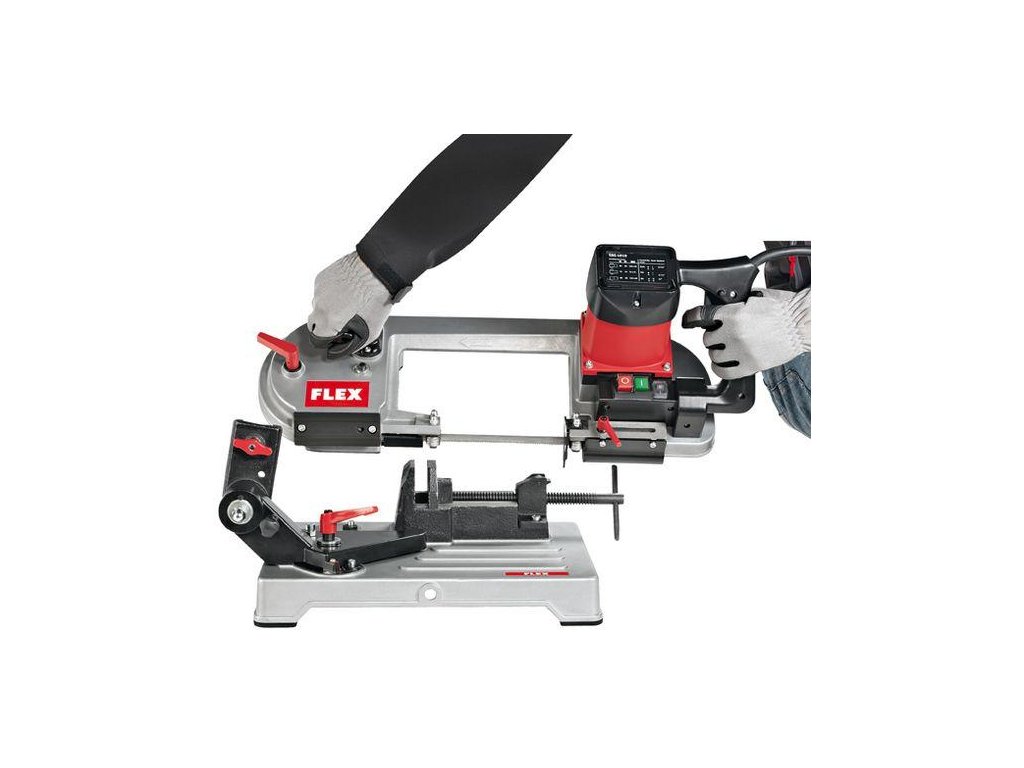

• With swing arm lock: for mobile use and easy transport

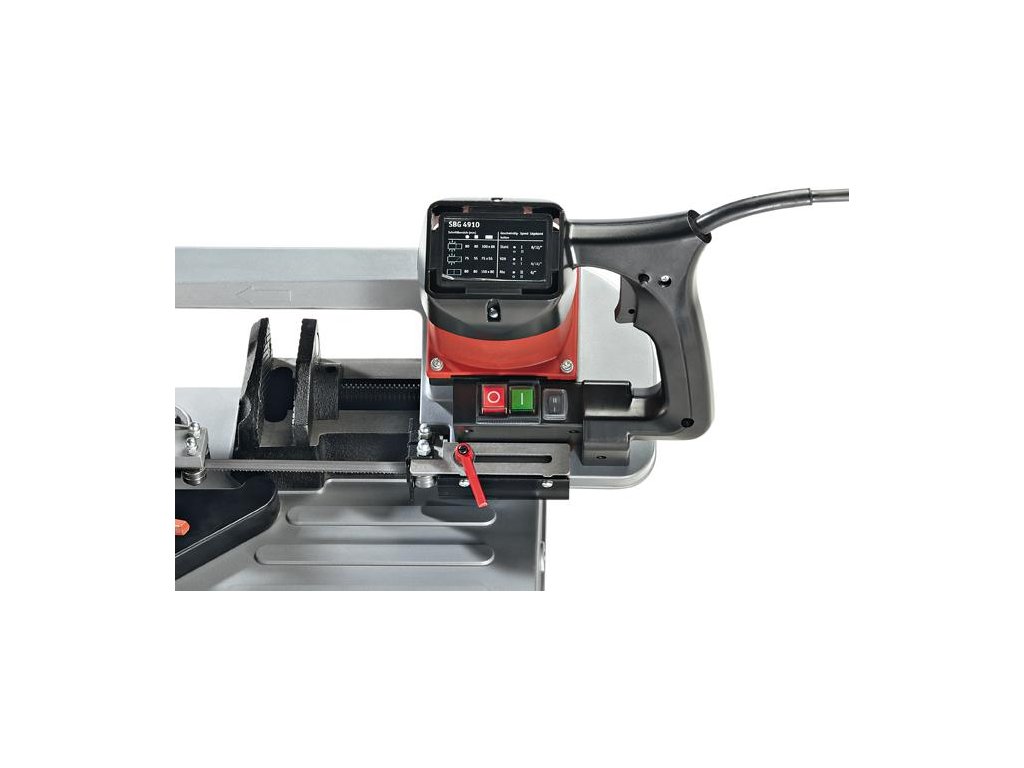

• Safety switch: against unintentional reactivation after power failure
• Work without coolant
• The SBG is particularly suitable for use in fire hazardous environments due to its spark-free metal cutting

Technical data:

• Power input850 W
• Power445 W
• Saw blade dimension1335x13x0,65 mm
• Belt speed60 / 80 m/min
• Dimensions (l x w x h)640x310x390 mm
• Max. cutting range: circular cross cut at 45°/90°68 mm / 80 mm
• Max. cutting range: square cross-cut at 45°/90°60 mm / 80 mm
• Max. cutting range: right-angled cross-cut at 45°/90°68x55 mm / 100x80 mm
• Cable length4,0 m
• Weight of the saw itself7.9 kg
• Weight (complete unit)18.0 kg

Scope of delivery:

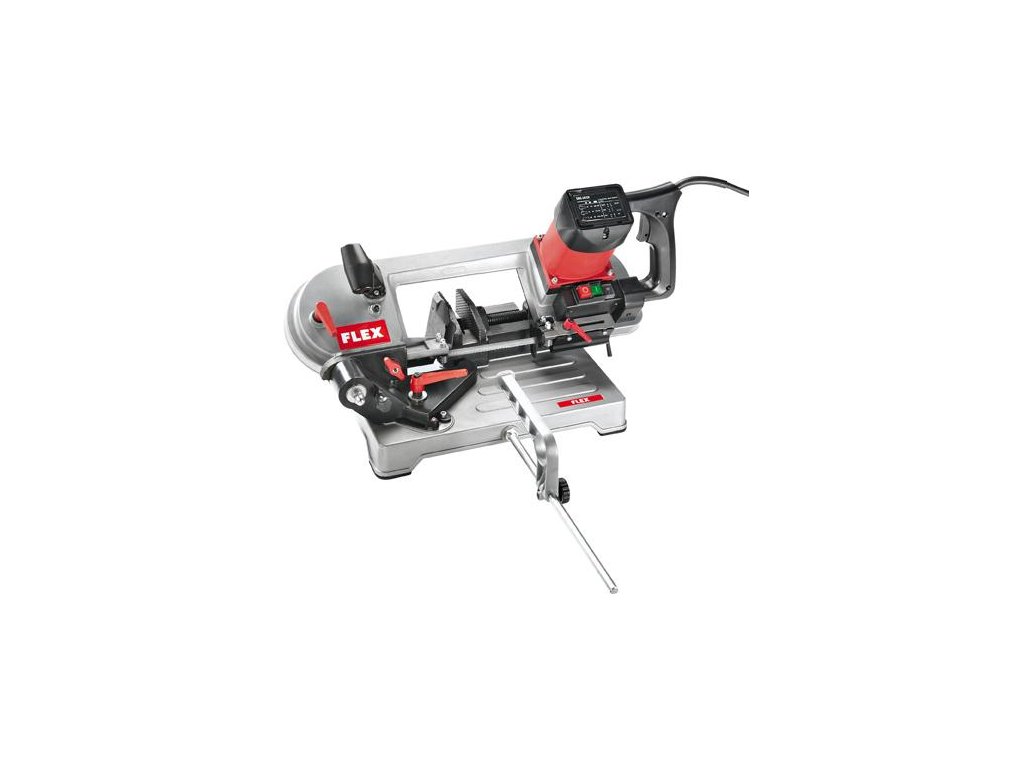

• 1 parallel stop 385.247
• 1 bimetal saw blade1 pcs
