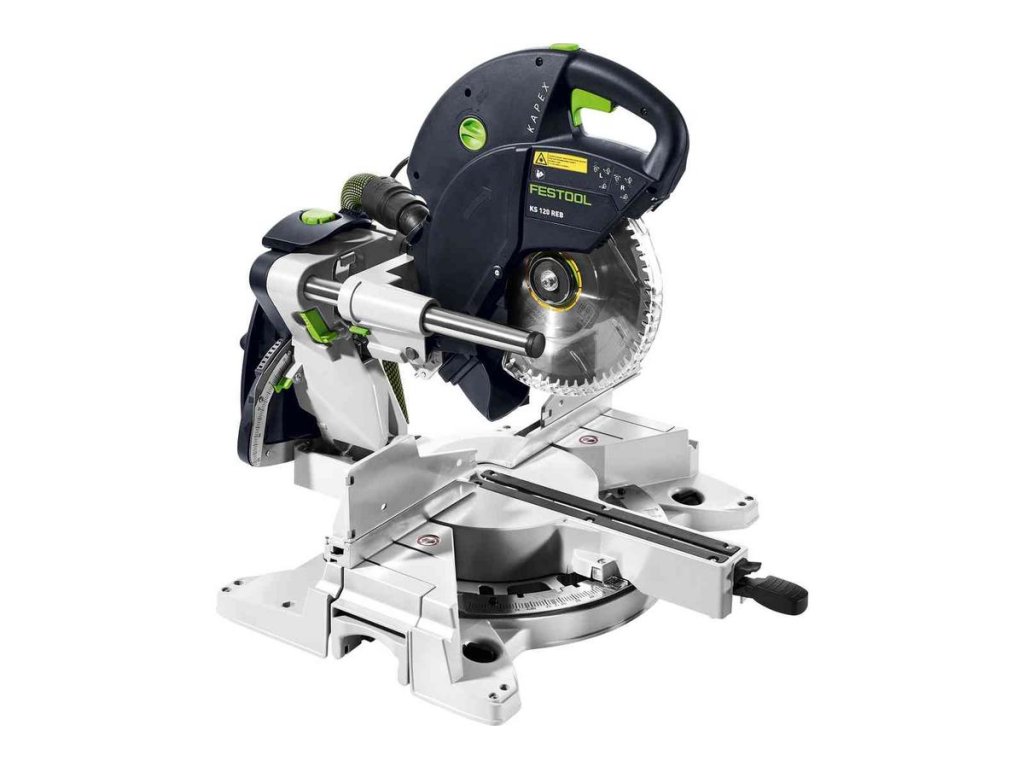

Festool - Miter saw KS 120 REB 230
Code: 575302Related products
Product detailed description
- The KS 120 convinces with its impressive cutting capacity and low weight.Thanks to the special drip position, ceiling end strips and wreath profiles can also be cut in their original position on the wall.Intelligent details such as the dual beam laser and angle unit ensure accurate results.
- FastFix saw blade change for material-specific work

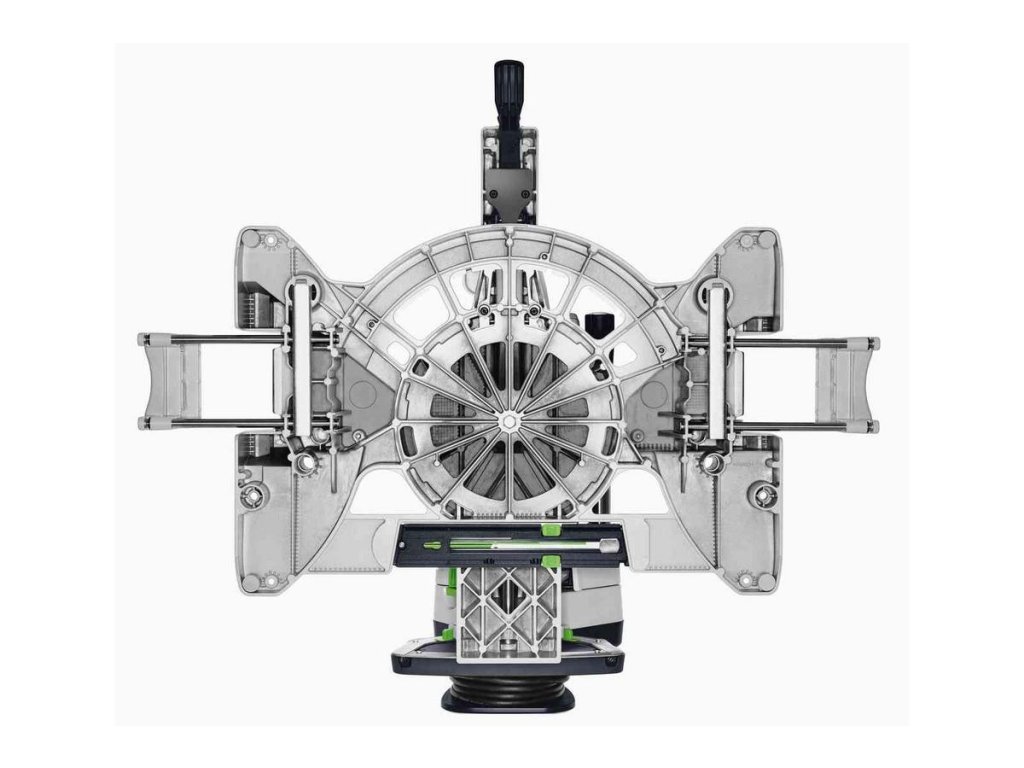

- Precise cuts thanks to two guide posts
- Fine adjustment at the front for setting the blade angle with millimetre precision
- Spline function (depth of cut stop)

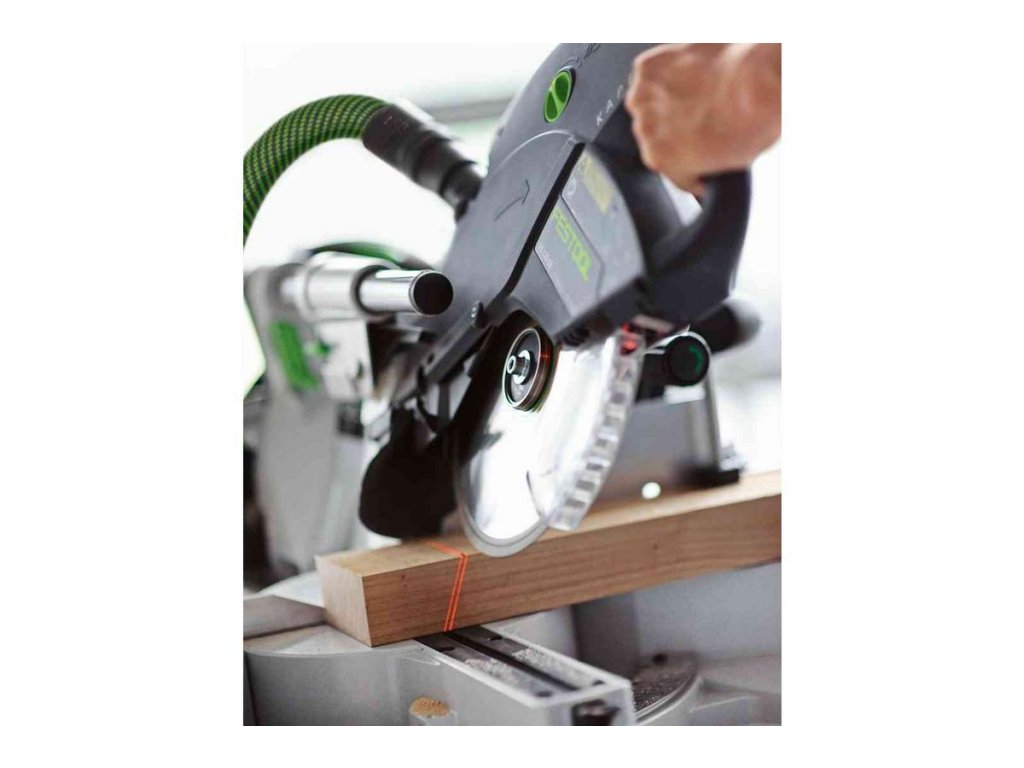

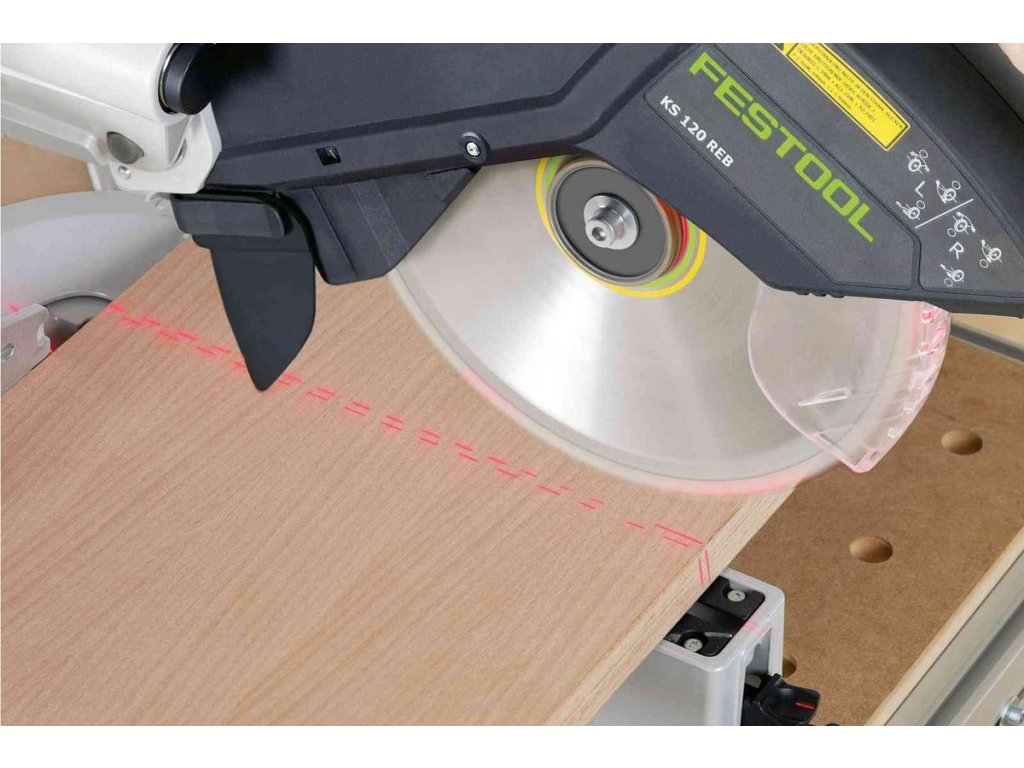

- A two-line laser on both sides of the blade precisely marks the cut.

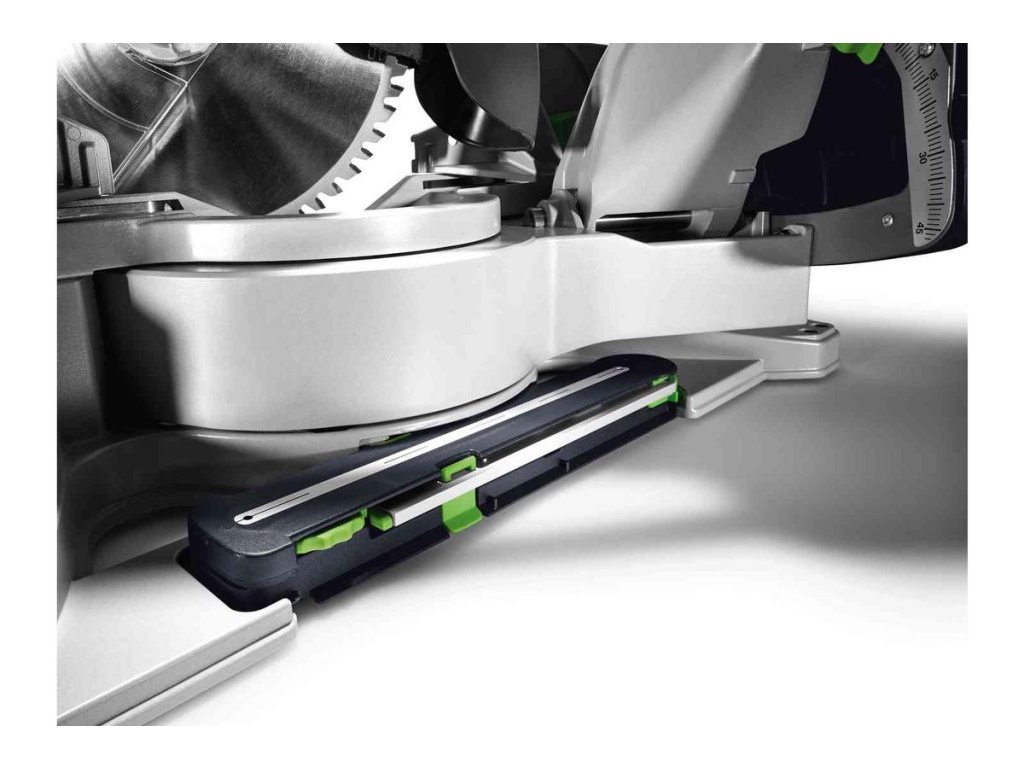

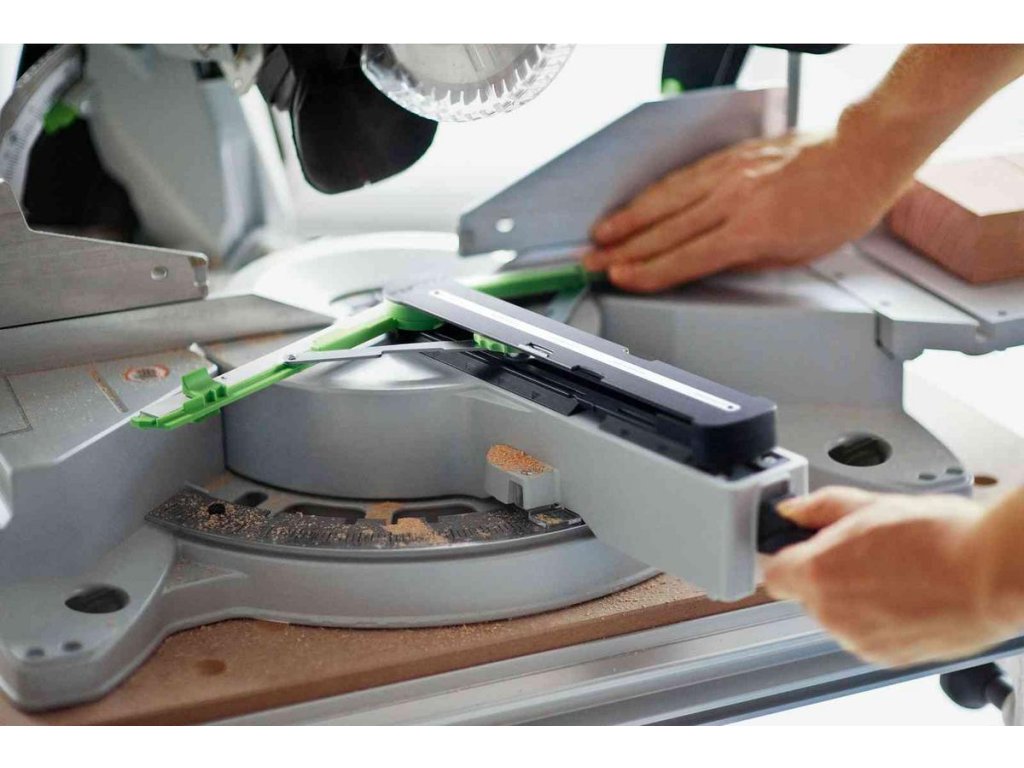

- Flawless angle transfer with the angle unit
- Compact, lightweight design for convenient transport
- Speedbrake
- Cutting skirting boards and ceiling strips up to 120 mm high - without calculation

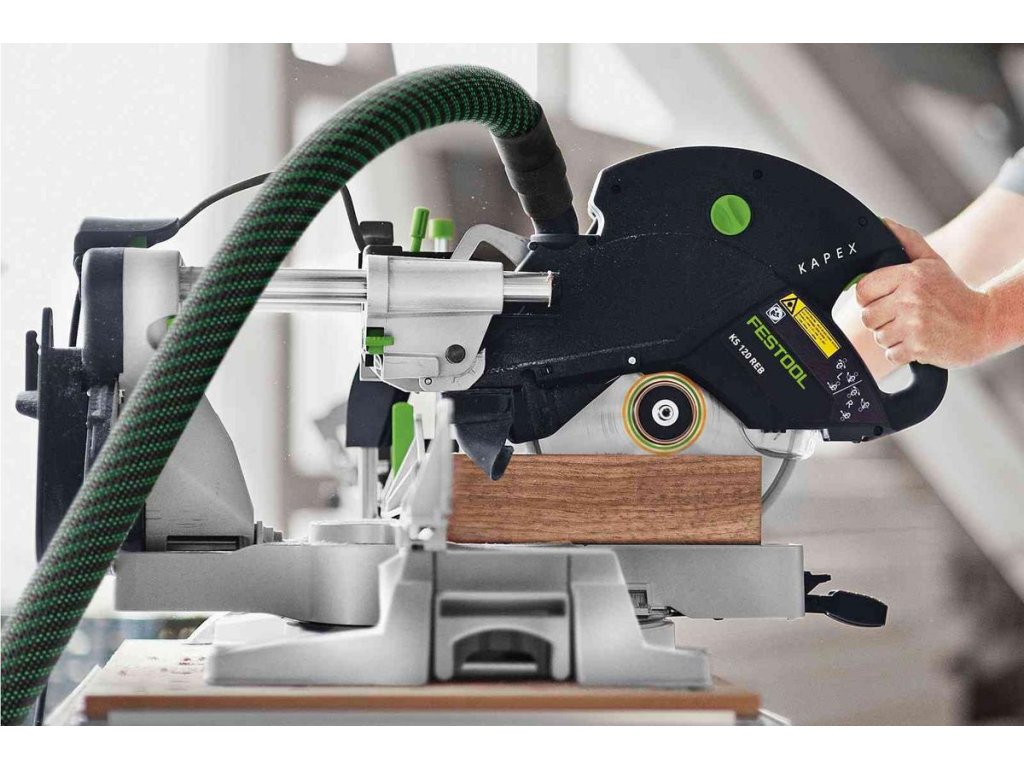

- Cutting boards and panels up to 305 x 88 mm
- Cutting of wreath profiles up to 168 mm in "real wall position"
- Cutting of prisms and beams up to a thickness of 88 mm
- The base facilitates and supports the use of KAPEX
- Convenient transport to the construction site and installation thanks to KAPEX base
- KAPEX base allows easy folding for transport
- Two laser lines for easy and precise attachment to the sketch from the right or left.
Technical data
| Power input | 1600 W |
| idling speed | 1400-3400 min-¹ |
| saw blade diameter | 260 mm |
| depth of cut 90°/90° | 305 x 88 mm |
| depth of cut at 45°/90° | 215 x 88 mm |
| special cutting depth 90°/90° | 60 x 120 mm |
| wreath profile, diagonal cut at 45°/90° | 168 mm |
| angle of inclination | 47/47 ° |
| dimensions (W × H × D) | 713 x 500 x 470 mm |
| Ø connections for dust extraction | 27/36 mm |
| mass | 21,5 kg |
| special depth. 45°/90° (left) | 40 x 120 mm |
| special depth of cut at 45°/90° (right) | 20 x 120 mm |
| depth of cut 50°/90° (left) | 196 x 88 mm |
| depth of cut 60°/90° (right) | 152 x 88 mm |
| depth of cut 45°/45° (left) | 215 x 55 mm |
| depth of cut 45°/45° (right) | 215 x 35 mm |
| wreath profile, diagonal cut 90°/90° | 168 mm |
| bevel angle | 50/60 ° |
| working height | 900 mm |

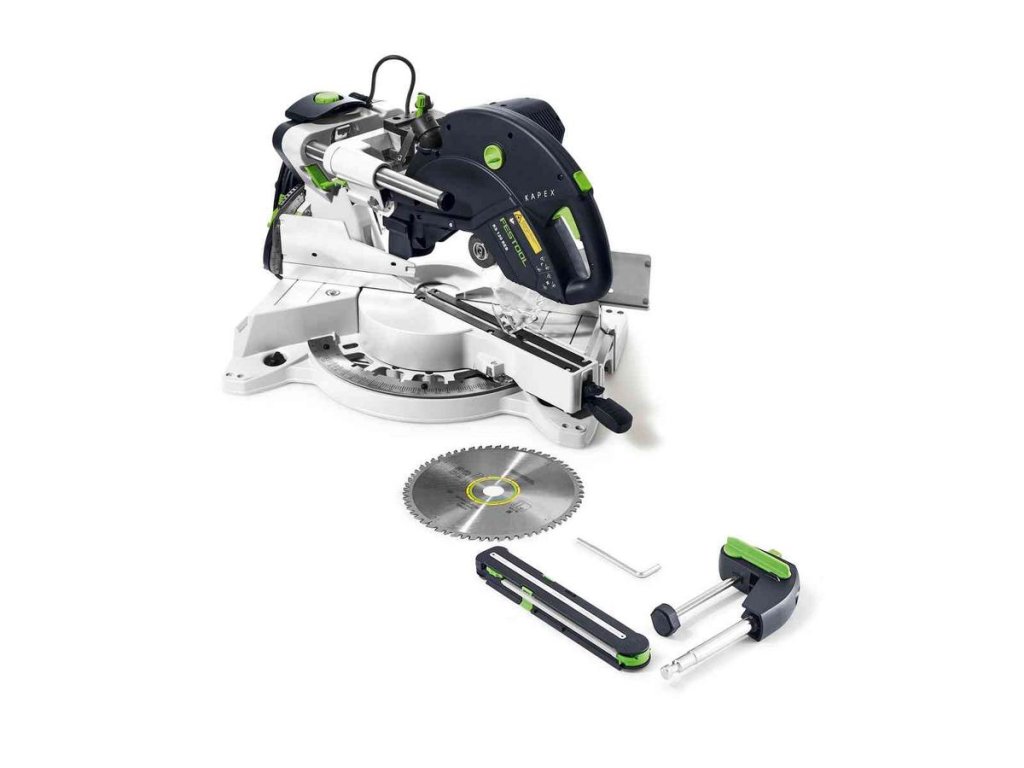

Scope of delivery
- KS 120 EB
- universal carbide saw blade W60
- angular unit

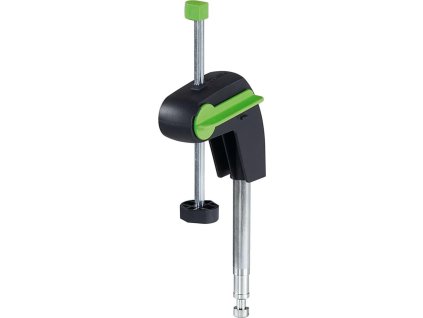

- workpiece clamp
- tools for the operator
- in cardboard
Additional parameters
| Category: | Table saws |
|---|---|
| Warranty: | 3 roky All - inclusive |
| Weight: | 27.85 kg |
| saw blade diameter: | 260 mm |
| Power input: | 1600 W |
