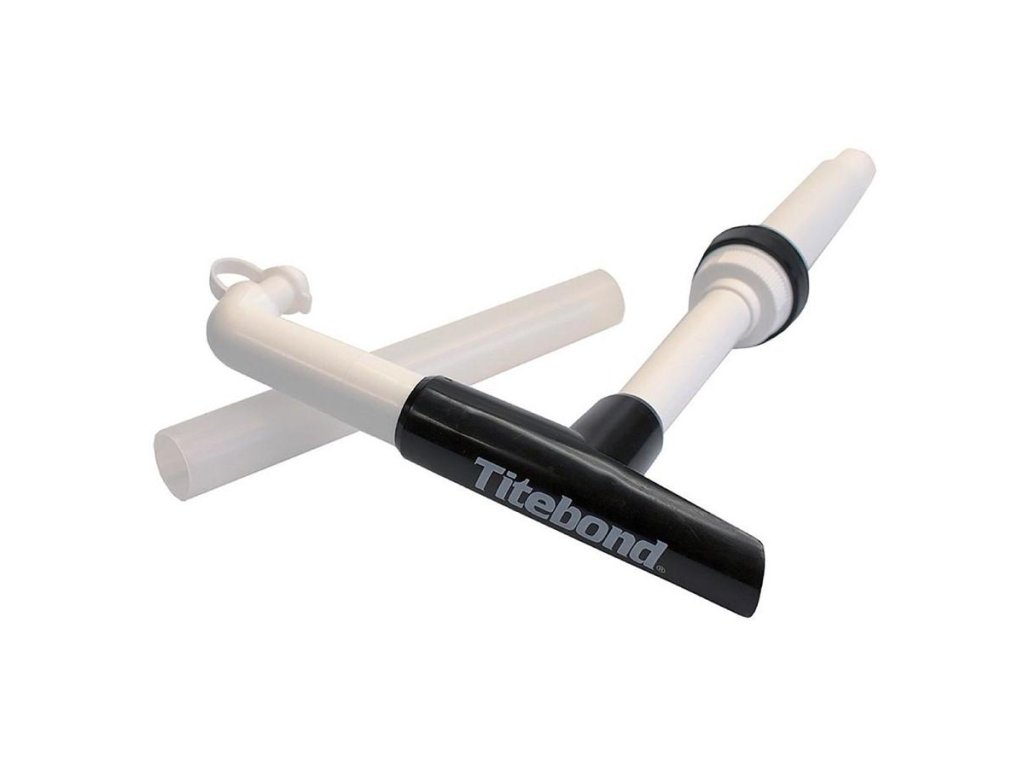

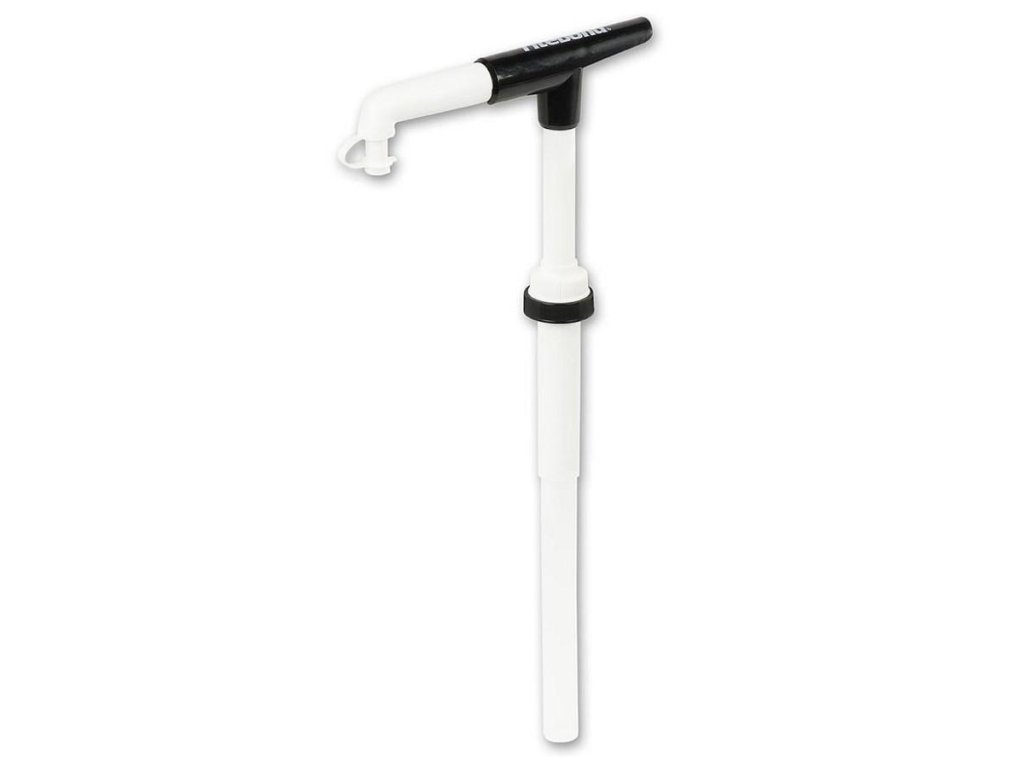

Titebond - glue dispenser

Special blade geometry for laminate and chipboard machining. The design of the F047-123 gives a cutting depth of 40 mm even when using a 29.5x9x1.5 mm blade if you are milling multiple passes through the material. Excellent use for cutting, shaping and grooving laminate or kitchen worktops using the top router and templates. Can be used for manual milling or on CNC machining centres.

Surface milling cutters are ideal for fast feed and large material removal rates.

Trimming cutter with one HM rotary razor blade and copy bearing on the shank. Ideal for trimming kitchen and worktops. Suitable for machining chipboard and laminated chipboard.

Trimming cutter with upper and lower bearing. Double sided razor blades clamped with Torx strength screws. For precision face milling with a top milling machine or in a milling table.

These cutters are designed for trimming, shaping and grooving.

For direct drilling, use type F044.

- HM carbide teeth.
- Orange Teflon non-stick coating.
- Copy bearing.

- Replaceable razor blades made of micro-grain carbide.
- The razor blades can be rotated by 90° for a total of 4 cutting edges.
- The razor blades are fixed with special Torx screws.
- Cutter body made of high-quality steel.

The cutter is equipped with two double-edged razor blades for rounding the edges. The radius is ground on all 4 sides of the razor for maximum tool efficiency. The cutter is fitted with a razor blade with a radius of R3mm or R2mm, which is mainly used on ABS edges. It is also possible to buy a radius R1mm and R1,5 mm, which can be used to cut the edge when gluing umakarte, veneer or laminate on boards. For use on manual top milling machines.

- Tool body made of premium steel.
- HM carbide blades.

• for trimming even the most difficult parts according to the template
• HW carbide cutting edges
• copy bearing on the cutter face

Type F045 is designed for cutting, copying and formatting according to a template when using a template from above. For processing of board materials (laminate, DTD, MDF) or hardwood.

Milling machine designed for precision face milling.

Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades that can also be rotated. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
