    Lamello - Tenso P14 connecting piece

    Code: K054
    Not rated
    Lamello | Tenso P-14 – samosvorný spojovací systém
    22 Kč
    In stock (>10 pcs)
    Delivery to:
    03/11/2025
    Delivery options

    A unique helper when gluing joints. Especially useful for bonding complex structures and shapes.

    Detailed information

    If you order by 12:00, you will receive it the next working day.
    If you order by 12:00, you will receive it the next working day.
    Personal collection in Prague-Uhříněves with the possibility of testing.
    Personal collection in Prague-Uhříněves with the possibility of testing.
    Not sure? Call, write – we'll always help.
    Not sure? Call, write – we'll always help.
    Does your tool need repair and care? Service and parts – we'll take care of everything.
    Does your tool need repair and care? Service and parts – we'll take care of everything.

    Related products

    Lamello Zeta P2
    Lamello - Lamination milling machine ZETA P2 with DIA cutter
    In stock at the supplier, availability within 7 days
    39 957 Kč

    Unleash your imagination when making furniture with our unique machine Lamello ZETA P 2 , which will fulfill almost every wish. The invisible and demountable furniture joints of our P-system will surprise you with endless application possibilities.

    Code: L101402SD
    Lamello | Předpínací klip pro Tenso P 14
    Lamello - tension clip for Tenso P 14
    In stock (>10 pcs)
    4 Kč

    Pre-tensioning clip for easy installation of the Tenso P 14 coupling

    packaging : 1x piece

    Code: L145436
    Lamello | Bisco P-14 vyrovnávací lamela
    Lamello - Bisco P 14 leveling lamella (145303)
    In stock (>10 pcs)
    9 Kč

    Alignment slat, accessory for Clamex P joints Dimensions:65x27x7mm Packing (1pc)

    Code: L145303
    Show all related products

    Product detailed description

    Tool-free fixing at any angle!

    Tenso P-14 is a self-locking fastening system that pushes the boundaries of bonding.

    Lamello | Tenso P-14 samosvorný spojovací systém

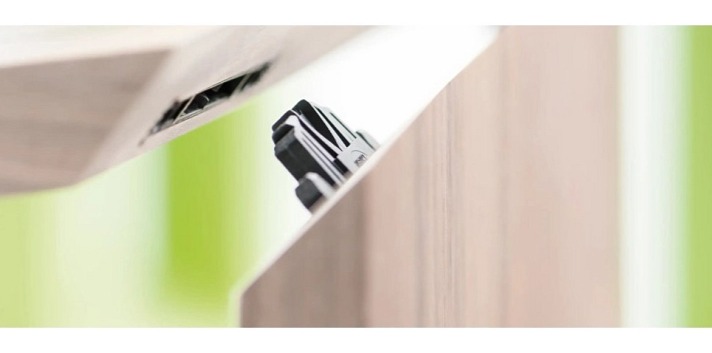

    Simply snap in.

    Use this fastening system to glue joints at any angle without the need for clamps or pullers.

    Lamello Tenso P-14 - The revolution in bonding

    One half of the connector is fitted with powerful tension springs that ensure a firm connection and exert high pressure on the parts to be joined.

    The result is perfect bonding without the need for clamps, tapes or presses. Tenso P-14 always joins parts at the correct angle, perpendicular to the cutting surfaces, ensuring precise alignment. Thanks to the innovative design, the fastener is anchored directly into the P-system groove in seconds, which significantly speeds up the entire assembly process.

    Important production notes

    This type of joint can only be produced by Lamello Zeta P2 or on CNC machines. The groove cannot be produced with a standard laminating machine.

    Lamello | Tenso P-14 samosvorný spojovací systém Slide the joint
    Lamello | Tenso P-14 samosvorný spojovací systém Install tensioning clip
    Lamello | Tenso P-14 samosvorný spojovací systém Apply the adhesive
    Lamello | Tenso P-14 samosvorný spojovací systém Drop the parts

    Technical Specifications:

    • Material:Fiberglass reinforced plastic

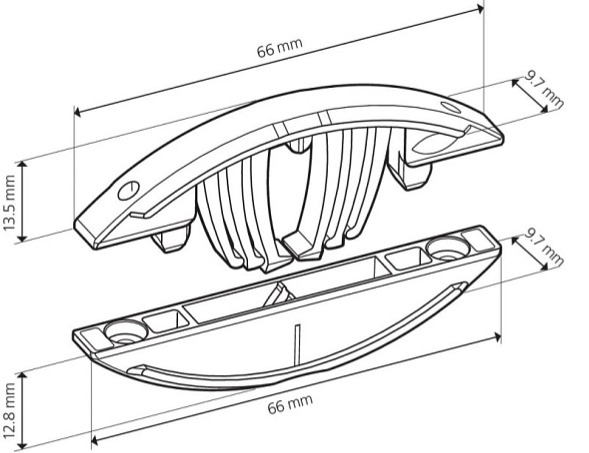

    • Dimensions: 66 × 27 × 9.7 mm
    • Mounting Tolerance: Longitudinally ± 1 mm, radially ± 1 mm
    • Use: Suitable for materials with a minimum thickness of 18 mm (only butt joints are possible with a thickness of 12 mm)
    • Tensile strength: Up to 80 kg (in MDF, solid beech and particleboard)
    Lamello | Tenso P-14 samosvorný spojovací systém
    Lamello | Tenso P-14 samosvorný spojovací systém

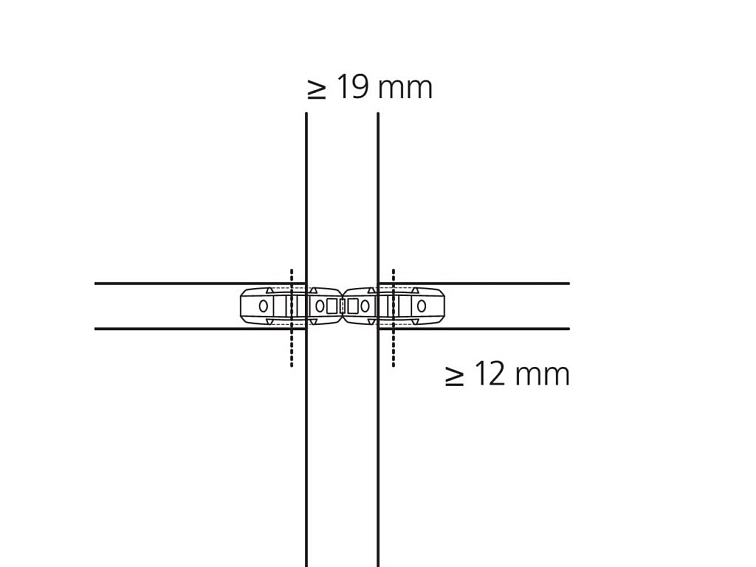

    Connection options

    positioning of shelves opposite each other and minimum material dimensions
    Lamello | Tenso P-14 samosvorný spojovací systém

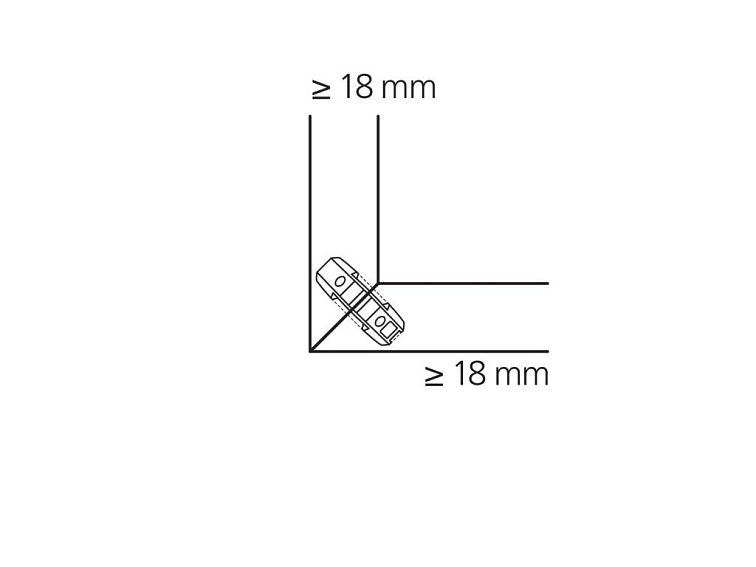

    Connection options

    mitre joint and minimum material dimensions
    Lamello | Tenso P-14 samosvorný spojovací systém

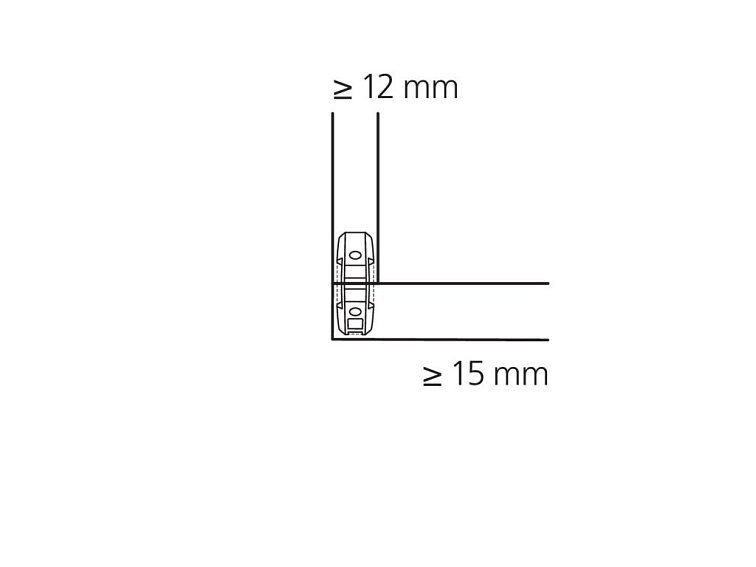

    Connection options

    butt joint and minimum material dimensions

    Scope of delivery: 1 x pair (predpinaci-klip must be ordered separately)

    Whatever you can think of - we'll put it together.

    • Adhesive: Quickly join without using clamps or waiting for glue to dry
    • Invisible: Joints remain completely hidden, ideal for projects with high aesthetic demands
    • Universal: Allows joints at angles from 22.5° to 180°.
    • Prestressing Clip: Allows for easier handling when installing mitre joints or multiple elements simultaneously.
    • Stackable: Parts with pre-installed connectors can be easily stored and transported
    • High clamping force: Ensures precise alignment and tight connection of parts
    Lamello | Tenso P-14 samosvorný spojovací systém

    Why choose the Tenso P-14?

    With the Tenso P-14, assembly is a breeze. This system allows you to create and implement new concepts for production, transport and assembly.

    You can transport your furniture disassembled and assemble it on site in minutes. You save space, reduce the risk of damage during transport and moving, and streamline logistics.

    The simplicity of the system means that even untrained personnel can assemble the furniture quickly and easily.

    Additional parameters

    Category: Lamello - fasteners P - system
    Weight: 0.008 kg
    EAN: 7640149932003
