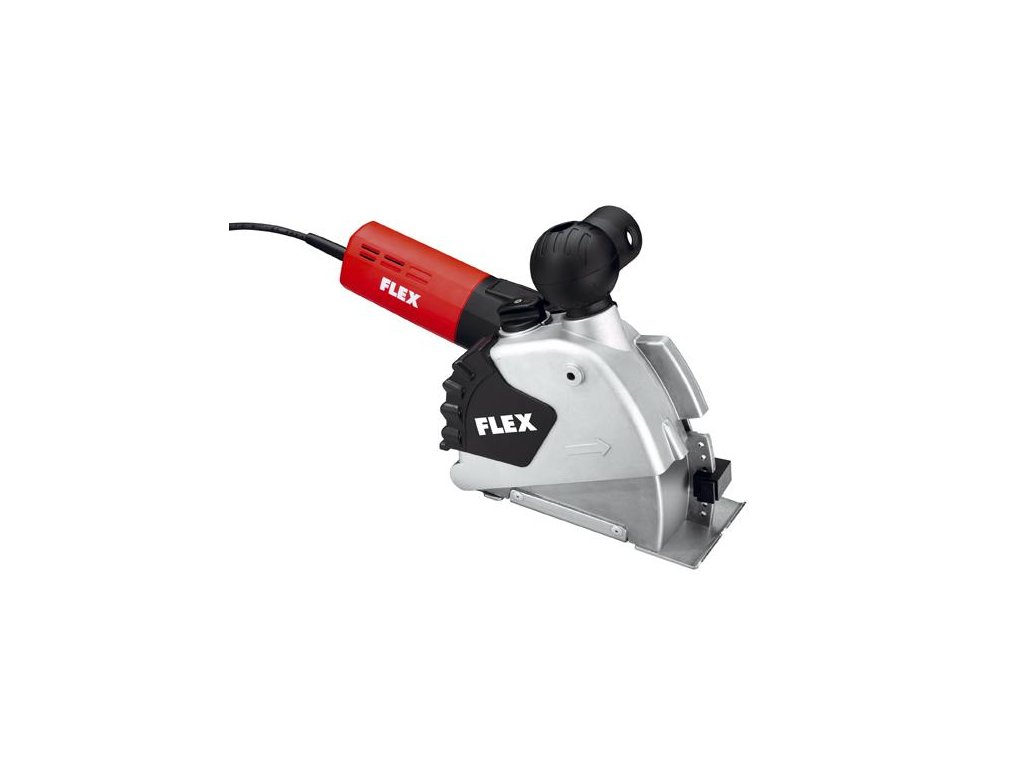

Grooving machine for masonry MS 1706 FR Set

Product detailed description

• Microprocessor electronics: with tachogenerator speed control, slow start, overload protection and temperature monitoring
• Rotary, patented motor (EP1693169). This makes it possible to cut in shift and pull.
• Optimal dust extraction and maximum safety thanks to the closed protective cover
• Tool-free disc change and groove width adjustment
• Adjustable suction direction
• Tool-free depth of cut adjustment
• Anti-entrapment locking
• Mills parallel grooves up to 35 mm deep and 30 mm wide
• Groove breaker for easy breakout of the remaining piece without hammer

Technical data:

• Depth of cut 0-35 mm
• Groove width 10-30 mm
• Ø discs 140 mm
• Idle speed 7500 rpm
• Power input 1400 W
• Power 950 W
• Tool clamping M 14
• Cable length 4,0 m
• Weight 4.6 kg

Scope of delivery:

• 2 cutting wheels Diamantjet VI Speedcut 140 mm Ø 334.464 (2x)
• 1 side handle 194.034
• 1 SDS-Clic M 14 quick-release nut 253.049
• Spacer pads 251.478 (1x)
• Discs 318.914 (2x)
• Clamping flanges 191.612 (2x)
• 1 groove core breaker 229.253
• 1 suction adapter 408.360
• Cable holder 252.188 (3x)

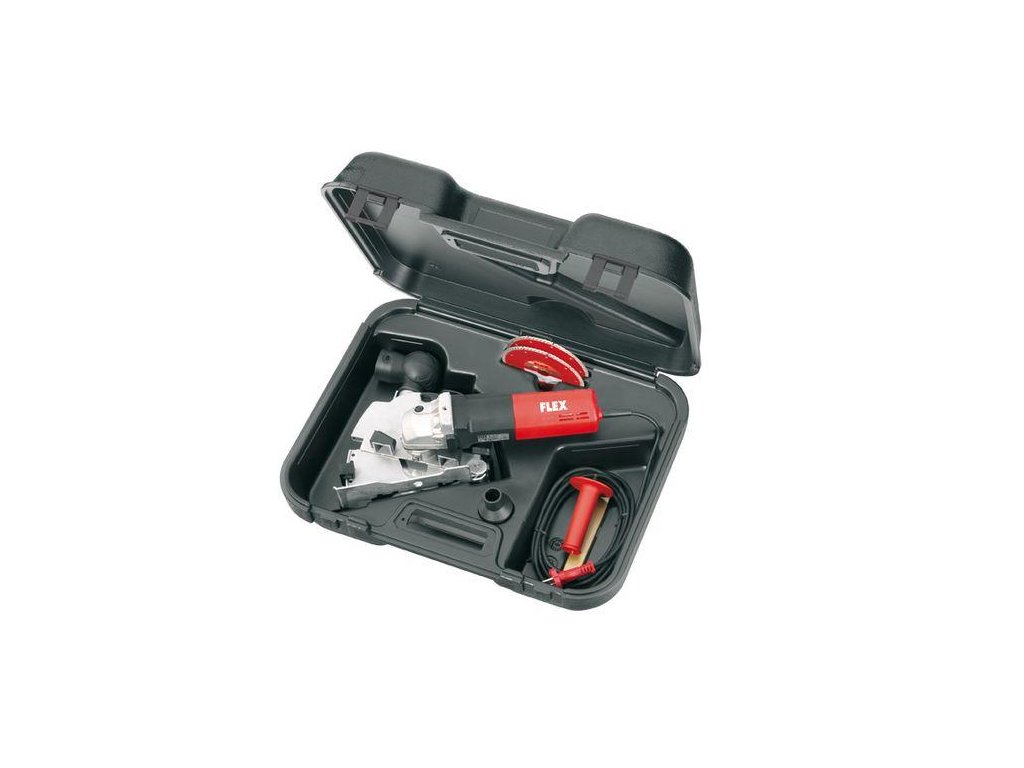

• 1 carrying case 327.034
