Milescraft - carpentry corner quick clamp
Code: M4012Related products

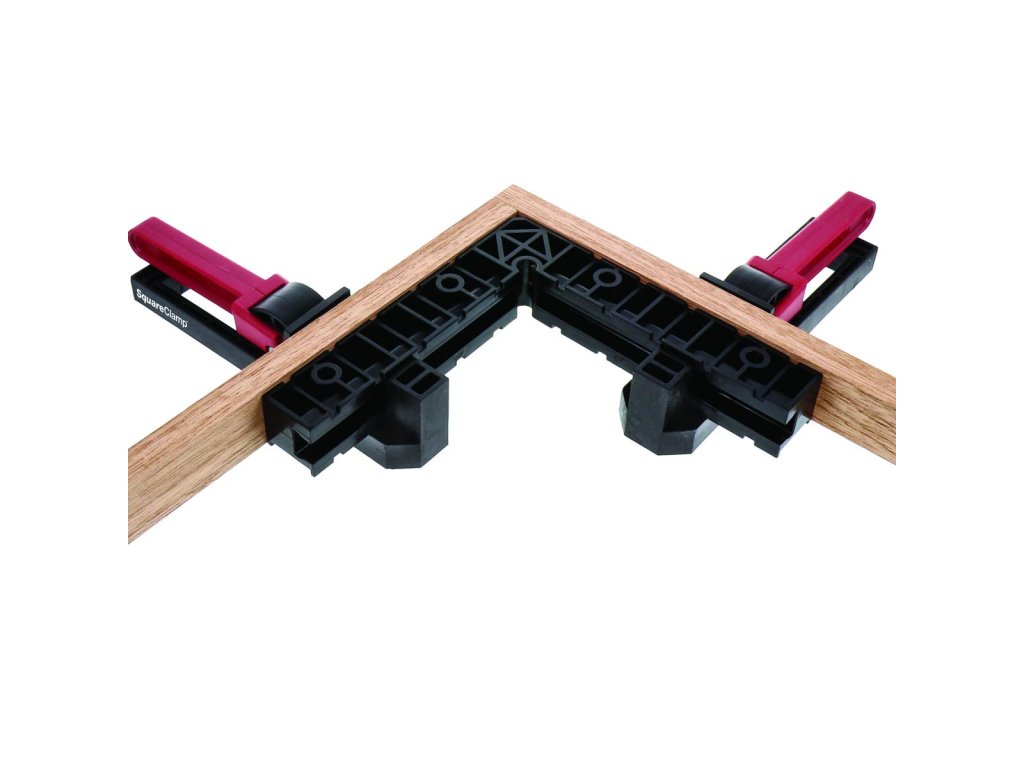

Milescraft - corner clamp for perfect right-angled clamping. With a pair of corner clamps and a solid plastic angle, you will achieve the perfect result.
Milescraft - FenceClamps™ (corner clamps) can be used in combination with the auxiliary angle included with the joiner's corner quick clamp.
New and better: Angle adjustment accuracy is +/- 0.05. 8 angle adjustment positions in 22.5 increments (157.5 , 135 , 112 , 90 , 67.5 , 45 and 22.5 ). Folds easily for carrying in your pocket.
Shinwa - Japanese stainless steel rulers with hard chrome finish for industrial use. On the back of the conversion table from inches to millimeters and the dimensions of the holes under the threads.
Joinery wide stainless steel flat angle has a scale on all sides.
Accurate measurement of multiple angles: the Angle Measuring and Transferring Angle can accurately measure angles between 10 and 170 degrees.
Sliding stop on the measuring ruler, you can measure not only the length but also the depth.
Robust, precise mitre angle with 45°/90°/135° jib with traditional SHAKU scale - one piece 3 mm.
Stainless steel flat scribing angle with sliding part equipped with nonium for measuring external dimensions.
Robust, precise mitre angle with 45°/135° jib and 8 cm metric scale.
Stainless steel flat scribing angle with sliding part equipped with nonium for measuring external dimensions.
Profiler+ ® is a simple, easy-to-use drawing tool.
Any profile, any material.......transfer the contour from any surface to the material quickly and accurately
High precision Japanese aluminium 45° and 90° 3D mitre bevel.
Stainless steel ruler with zero points at both ends simplifies measurement readings. Two differently divided scales on one ruler, 0.5 mm pitch on the front side and 1.0 mm pitch on the back side.
Product detailed description
- Universal tool
- Easy to use
- Patented technical solutions
- It can replace several "traditional" tools
- Increases productivity, saves time and money
- Robust and durable construction
- Top quality components
- 2-year warranty
Robust construction

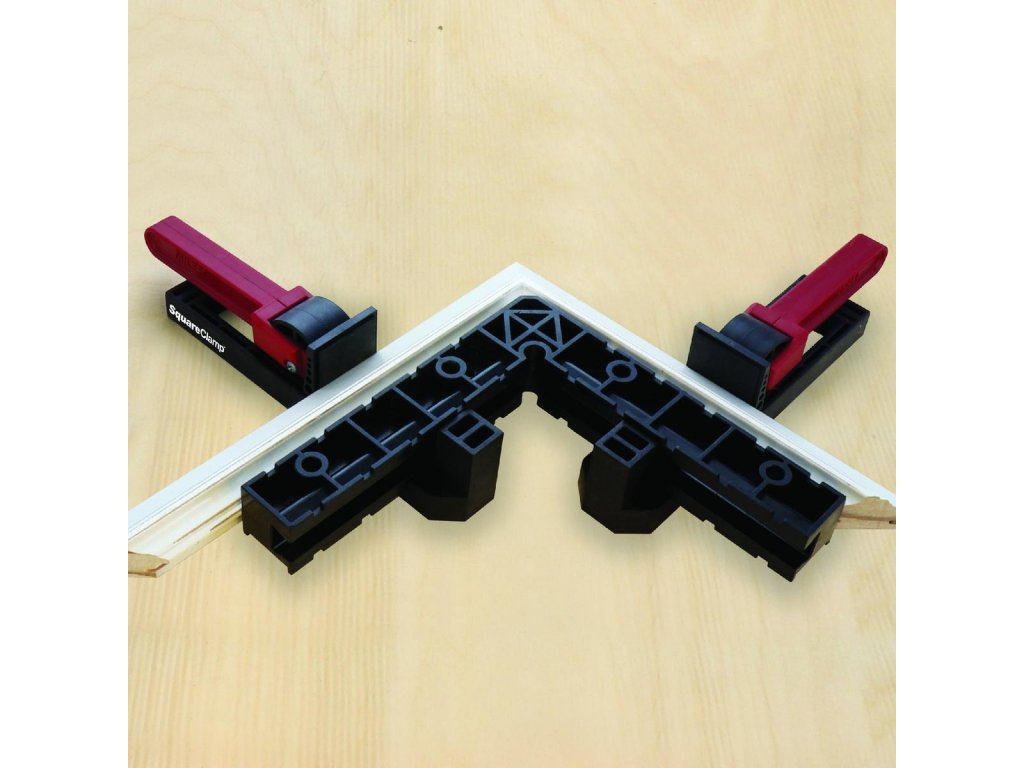

a solid angle and a pair of quick-clamps ensure a firm and precise fit.Separate use of the angle

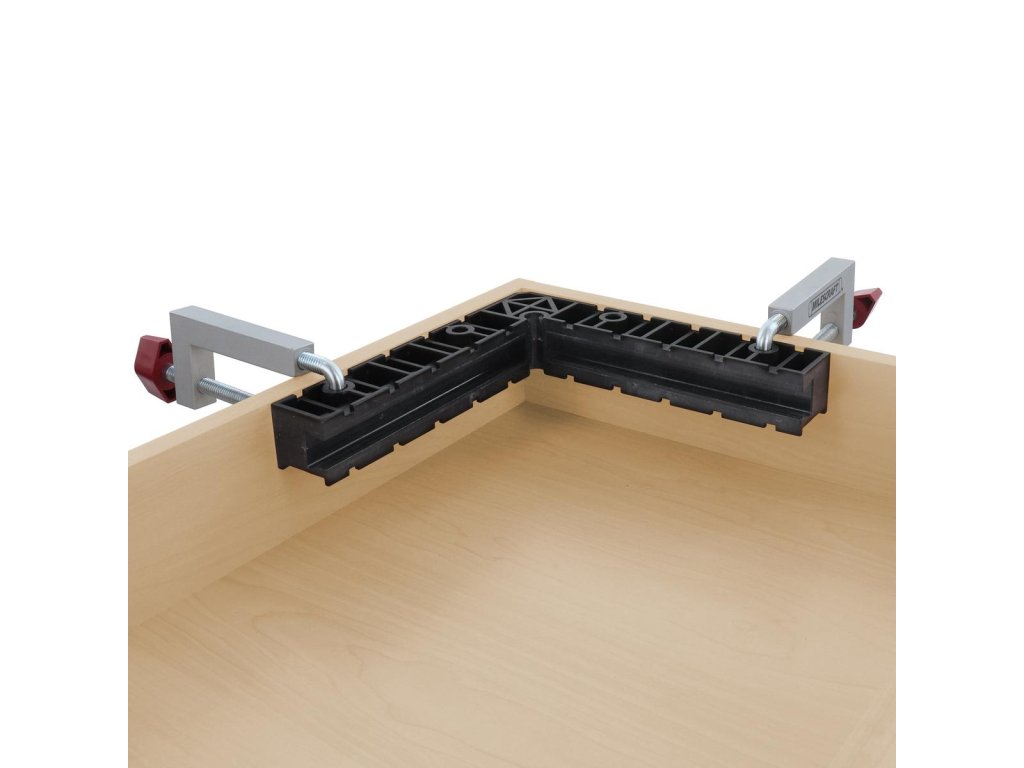

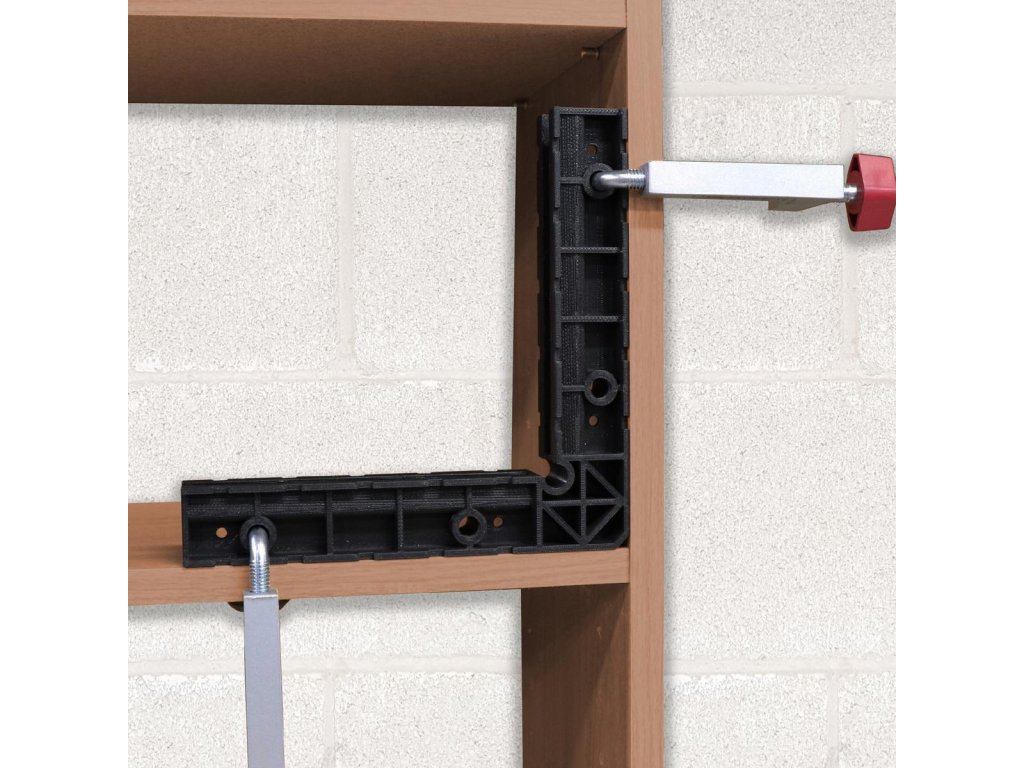

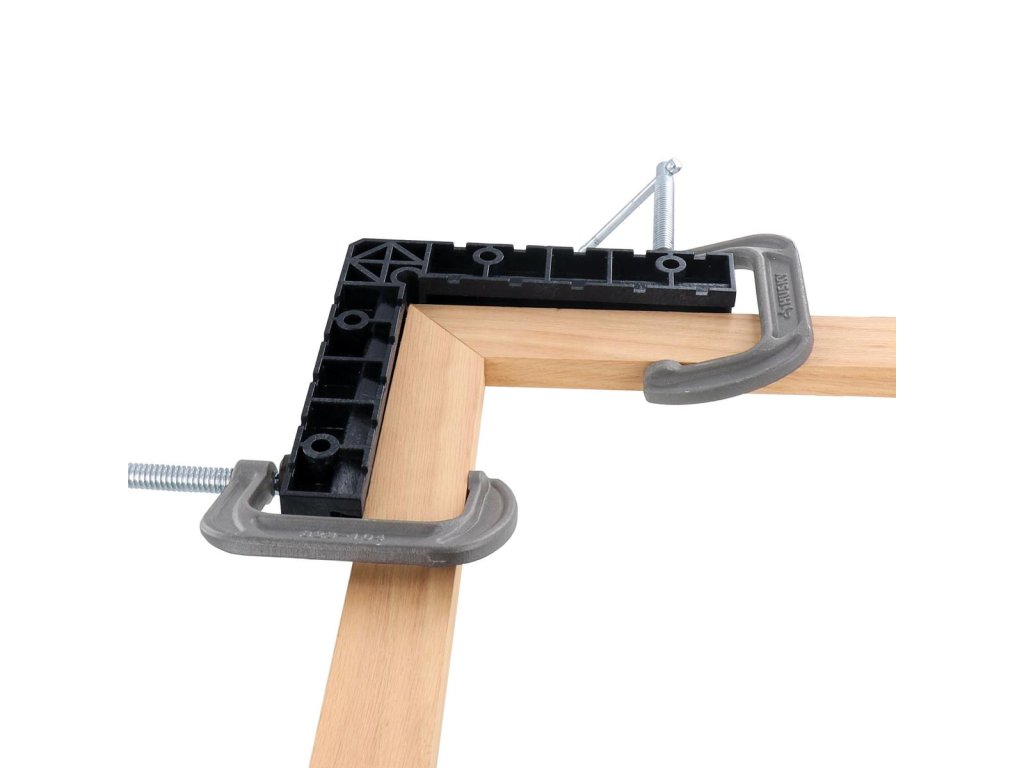

angular can also be used separately with many types of other clampsWide base quick couplers

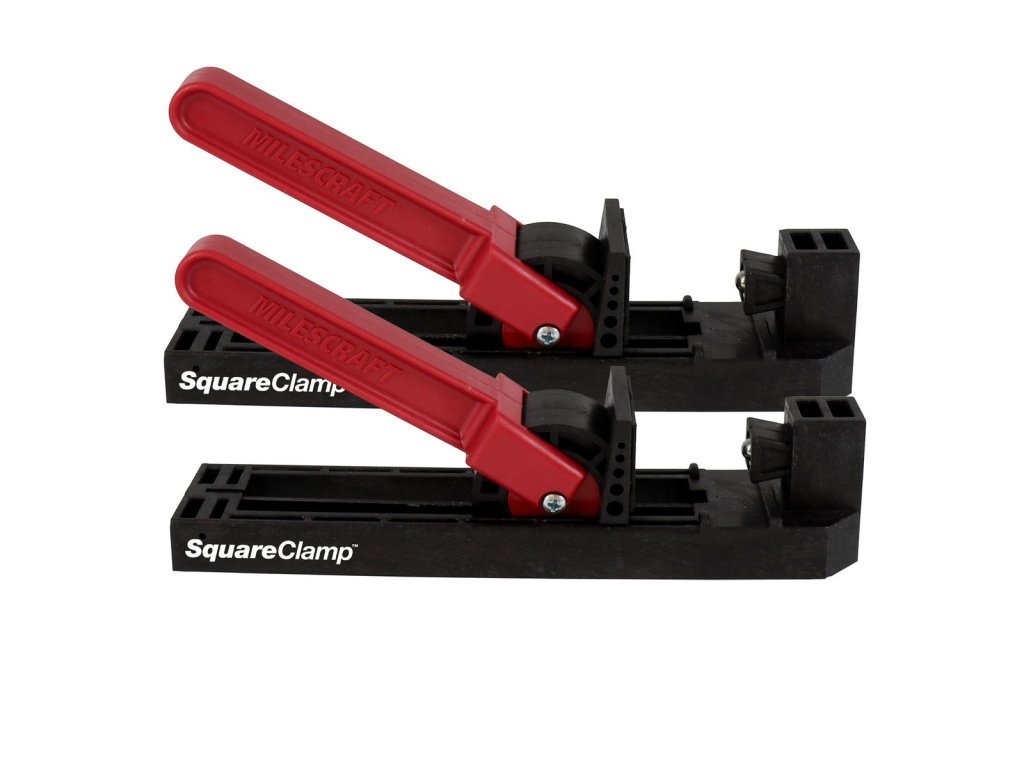

The 50 mm wide clamping surfaces of the clamps ensure that the material will not slip.This joinery quick-release rectangular clamp set consists of a solid angle with a cross-section of 35 x 35 mm and an arm length of 203 mm, which can also be used separately with other clamps or special clamps thanks to the four fixing holes with a diameter of 3/8" (9.52 mm).
The angle is also fitted with two herringbone grooves into which eccentric wide quick-release screws are inserted to ensure precise alignment. The 50 mm wide clamping surfaces of the clamps ensure that the material will not slip.
The kit comes with a pair of leveling framing pads. They align the height of longer parts and prevent damage to the material being joined. You can use them separately or the pins will fit into the holes in the angle of the jig.

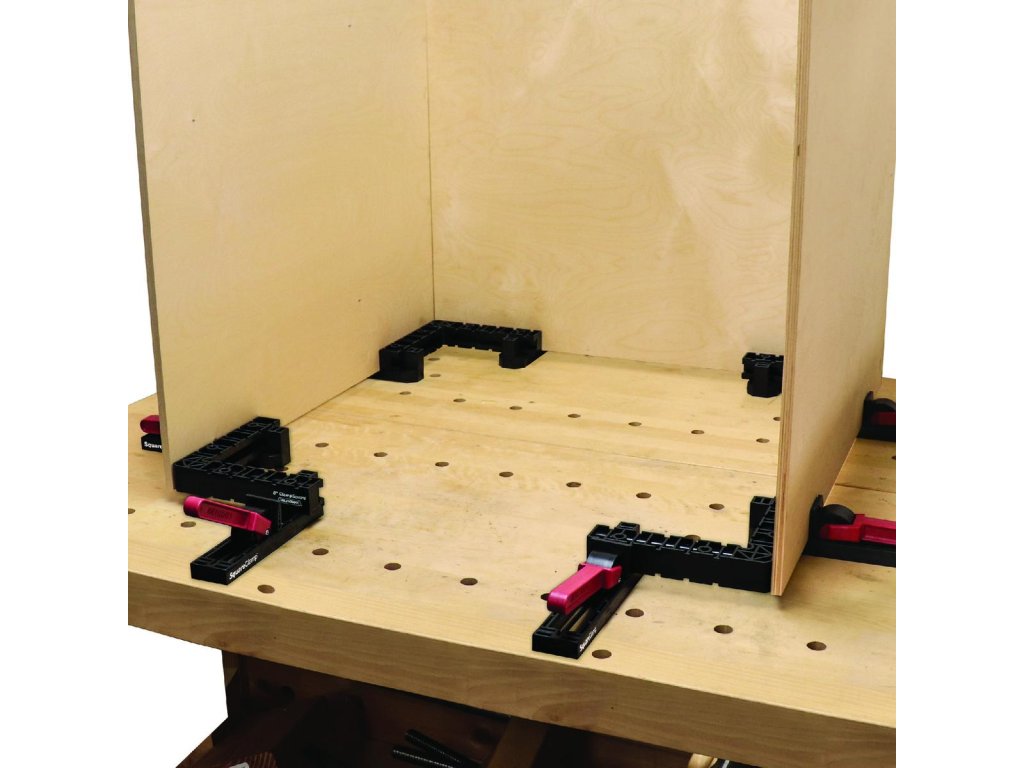

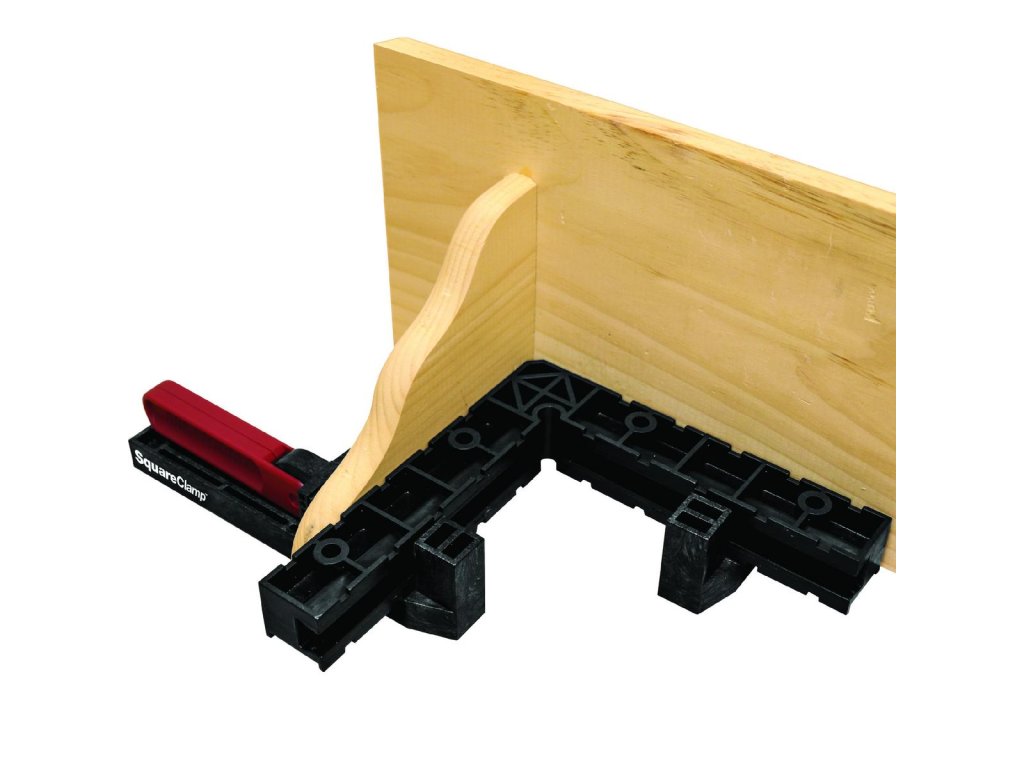

Universal use:
- Frames
- Boxes
- Shelves
- Drawers
- Cabinets

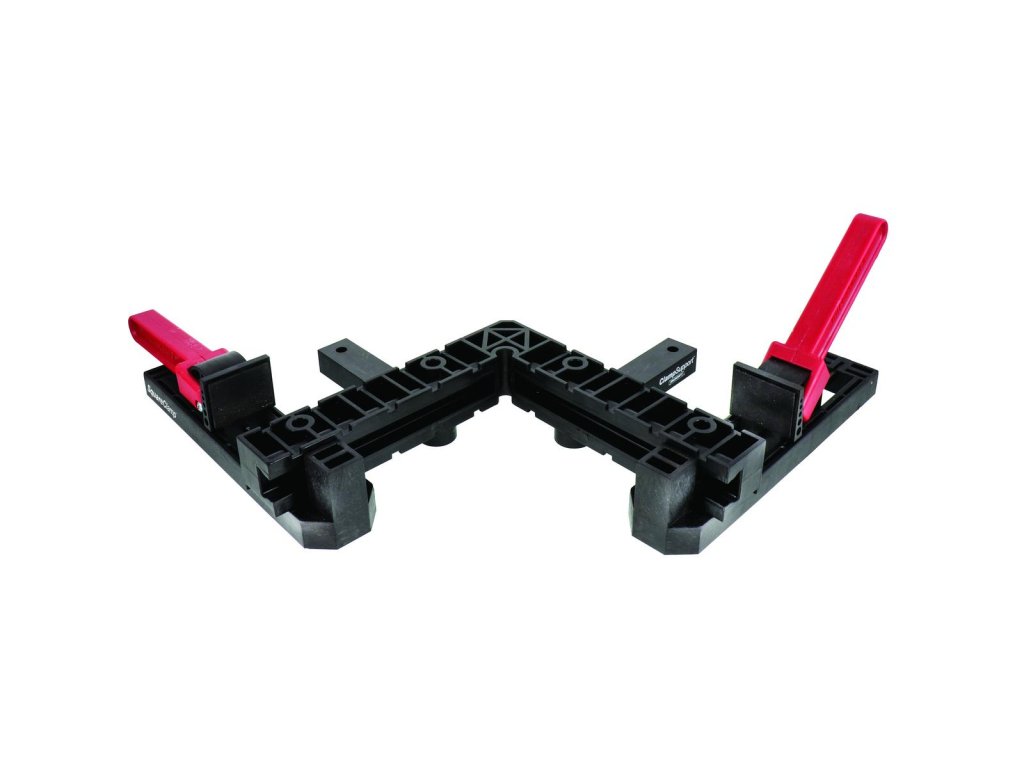

Scope of delivery:
- 1 x solid corner angle
- 2 x wide quick-release clamp
- 2 x levelling frame pad
Additional parameters
Category: | Carpentry clamps and pullers |
---|---|
Warranty: | 2 years |
Weight: | 1.02 kg |
