Product detailed description

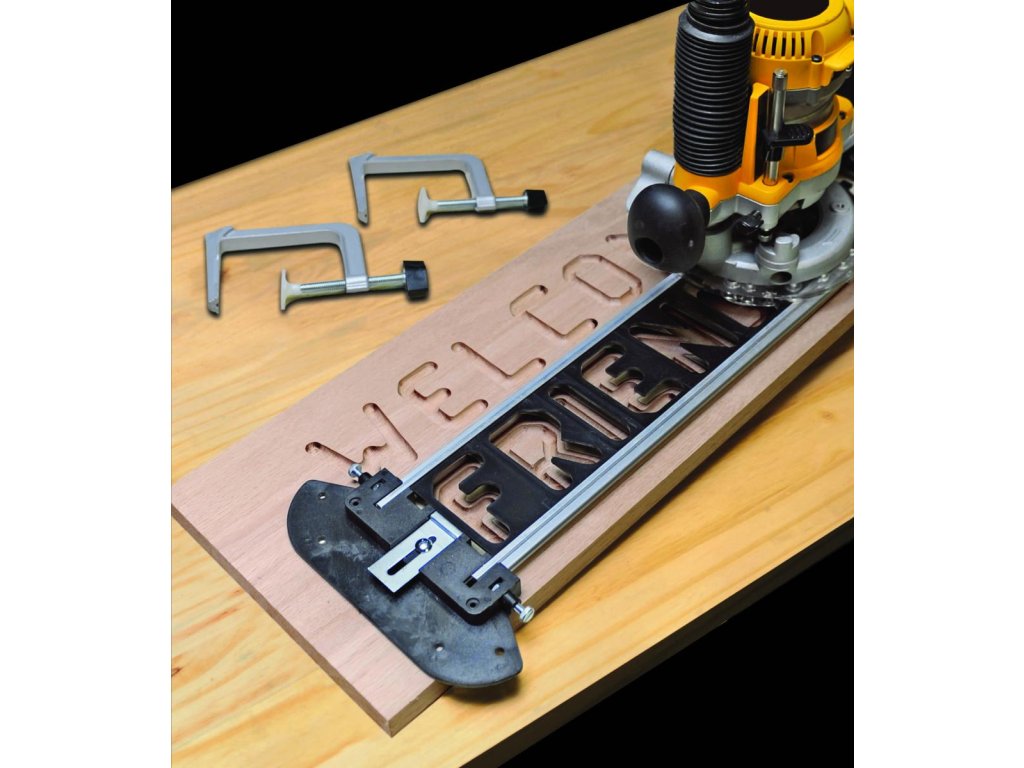

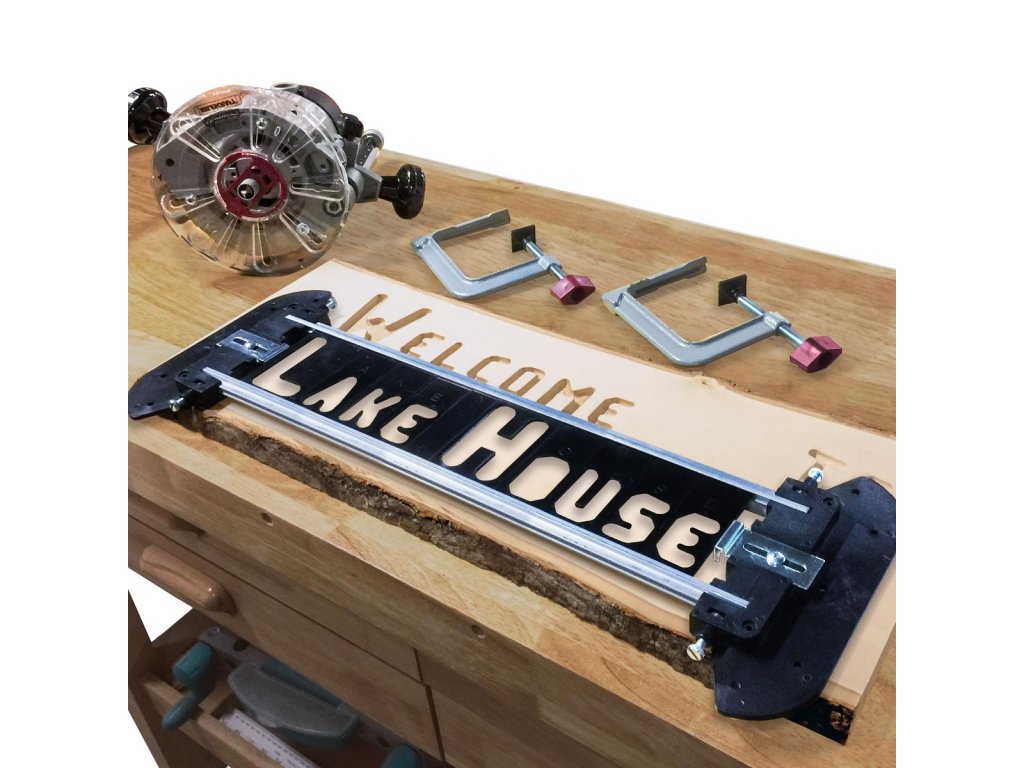

SignPRO allows you to easily and efficiently create quality wooden signs without the need for complicated measurements. Simply select the desired letters and numbers, slide them between the two rails and the mark is complete.
- The package also includes a TurnLock BasePlate compatible with most popular milling machines on the market. It is a general-purpose tool that can be adapted to individual needs.
- One of the main advantages of the product is the patented TurnLock technology, which allows quick change of guide bushes and cutter attachments without the need for tools. The pack also includes an extensive collection of templates for maximum creativity.

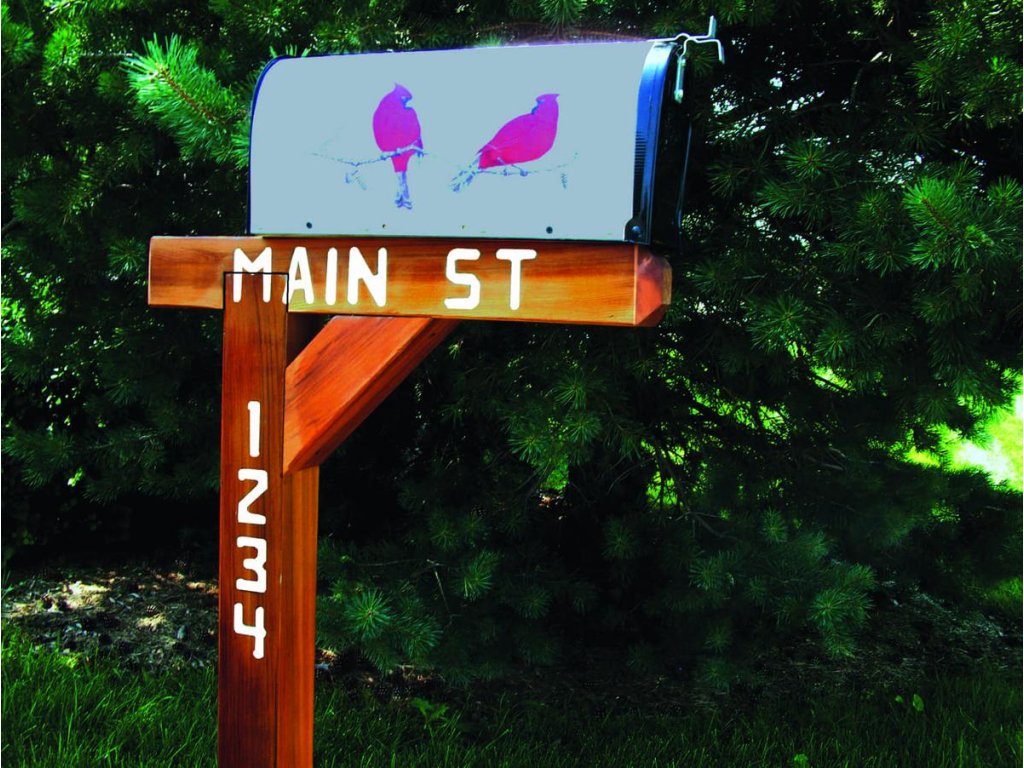

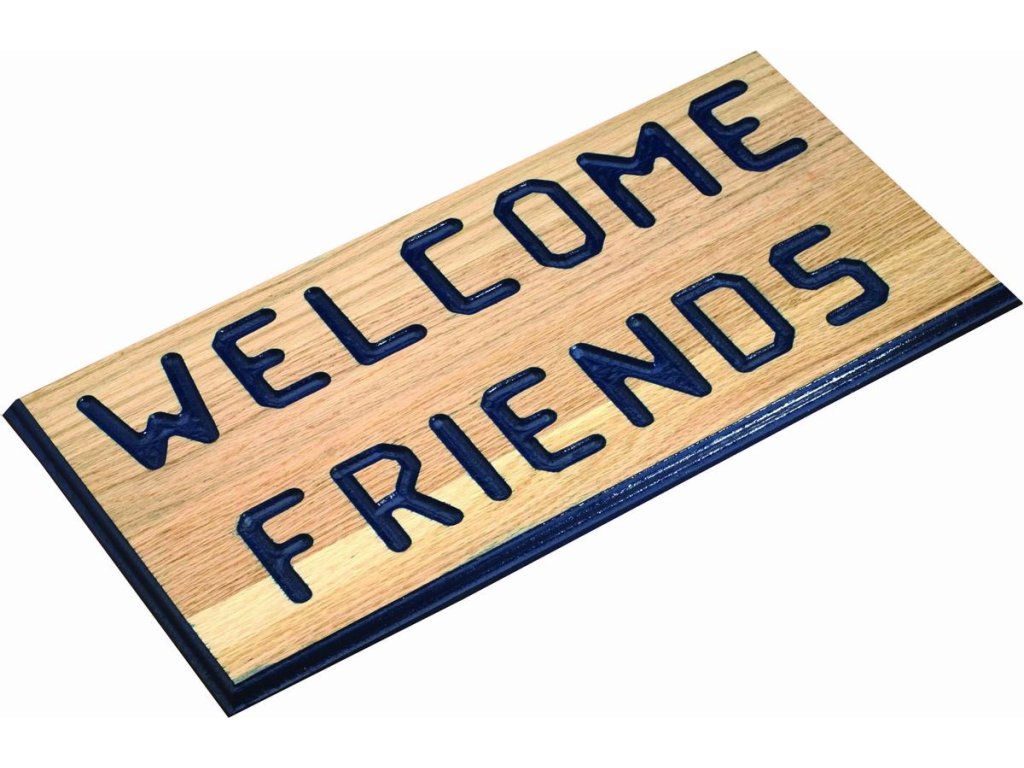

- Milescraft SignPRO is the ideal tool for anyone who needs to create original and professional looking wooden signs, whether for marking a cottage, hiking trail or mailbox.
- The set includes 38mm and 64mm signs, allowing flexible and simple sign making without the need for complicated measurements.
- Milescraft® SignPRO™ lets you execute your ideas with incredible precision and detail. It is a tool that allows you to create something that is truly unique and personal, while achieving high quality standards.
- Thanks to its ease of use, Milescraft® SignPRO™ saves you valuable time. Just select the letters and numbers you want, slide them between the two guide rails and your sign is ready!
- Whether you want to create a simple sign or a more complex design, the kit will give you everything you need to make your vision a reality.

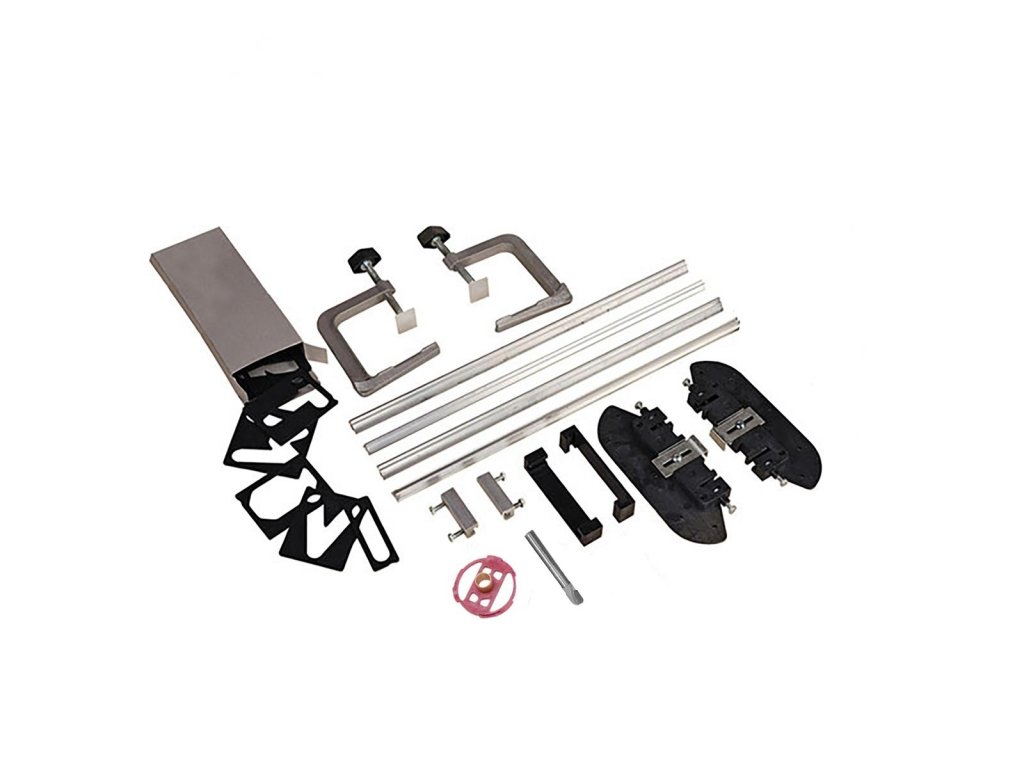

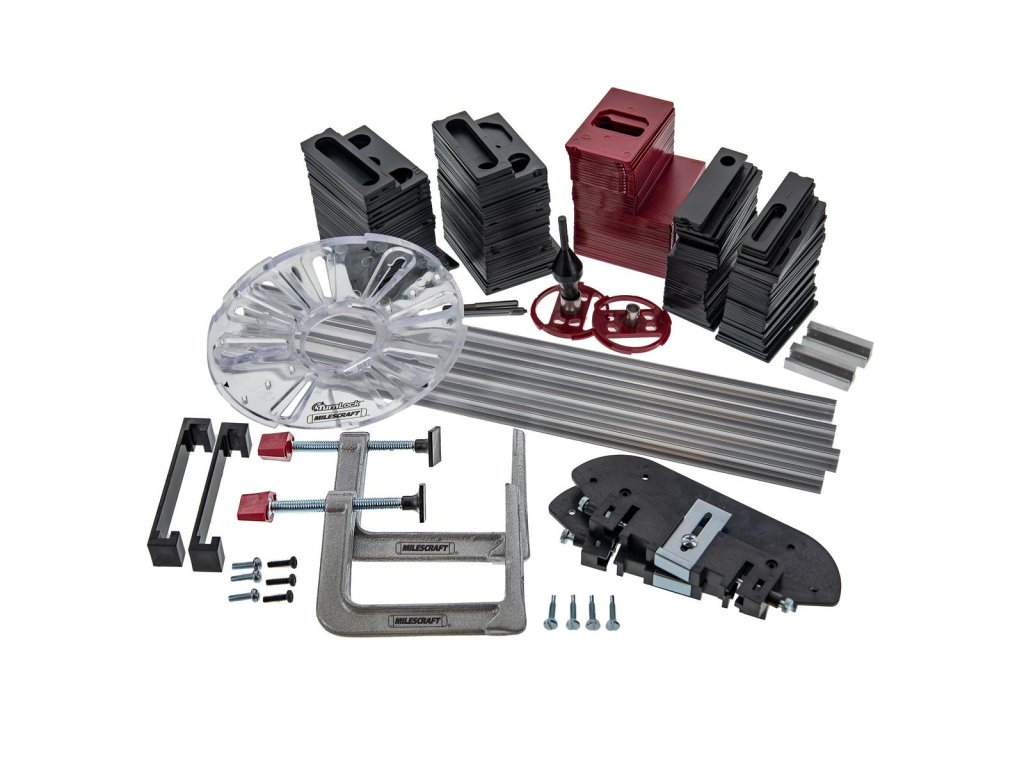

The set contains:
- Letter templates of size (approximately 64 mm) A to Z, where the letters A, E and I are represented twice, as well as the digits 0 to 9, the full stop and the quotation marks.
- Horizontal letter templates of size (approximately 38 mm) A to Z, where the letters A, E and I are represented twice, as well as the digits 0 to 9, a dot/apostrophe, a dash and a blank space.

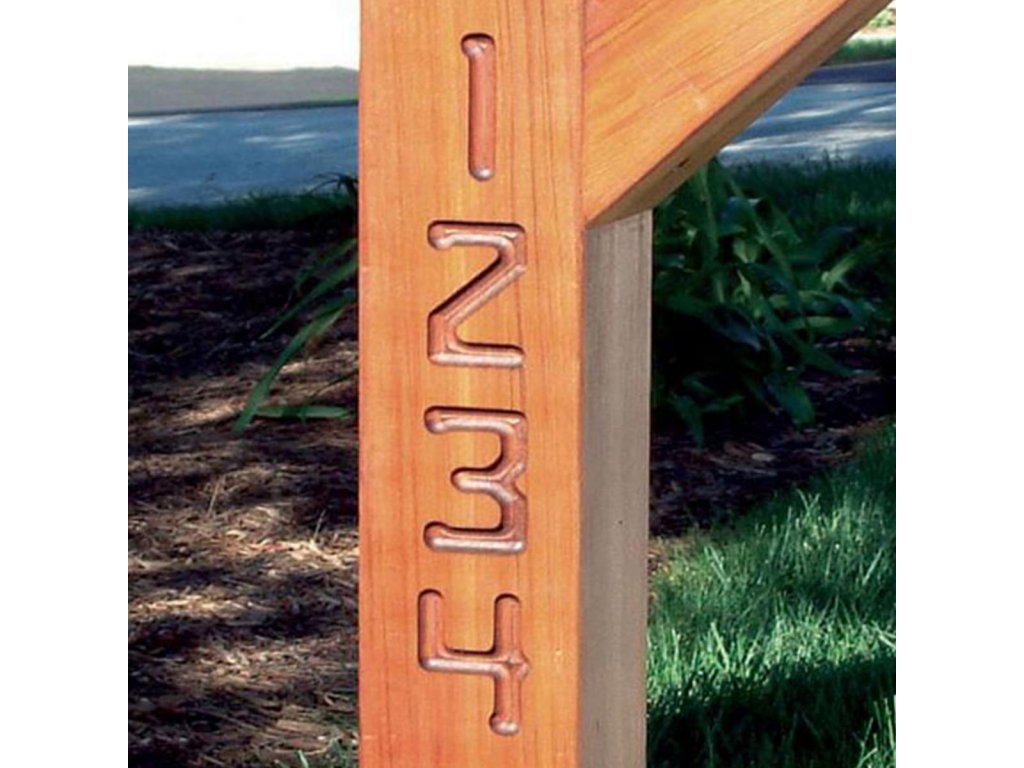

- Vertical templates of numbers in dimensions (approximately 38 mm) and (approximately 64 mm), where all digits from 0 to 9 are represented twice.
Additional parameters
Category: | Drilling and milling jigs |
---|---|
Weight: | 3.5 kg |
