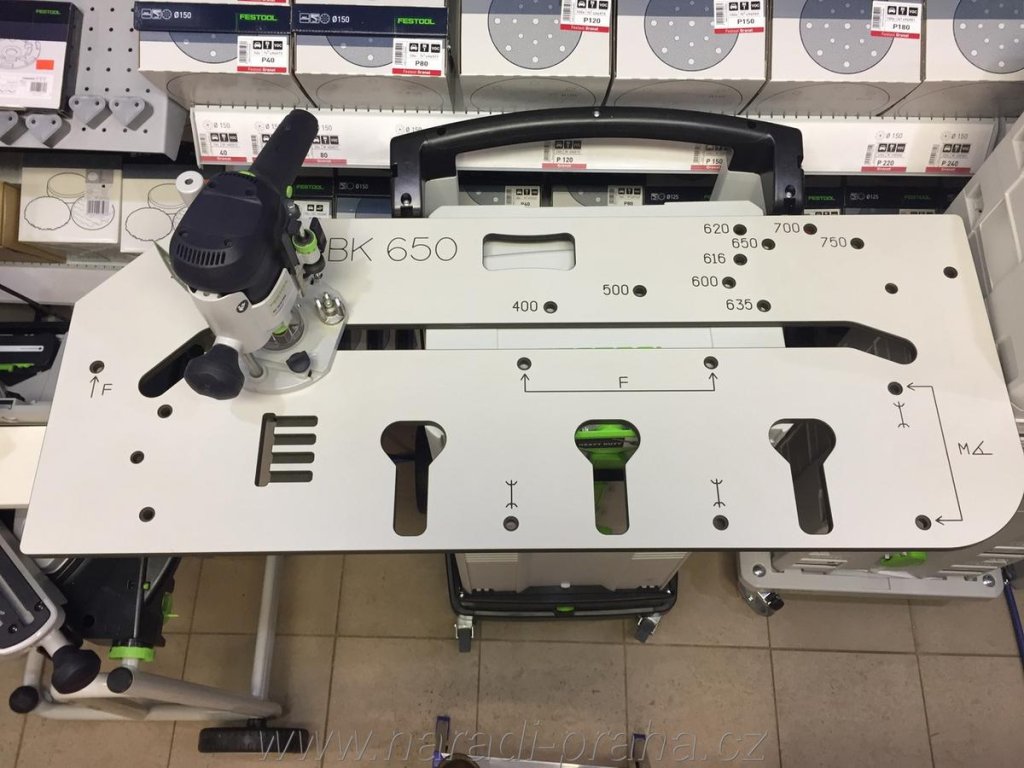

Template for kitchen worktop joints - IKEA
Code: BK650Related products
Milling cutter with one mini knife and clamping wedge. The longitudinal and transverse groove of the mini-knife allows better adjustment and security against axial movement of the knife. For milling and finishing, sequential drilling and grooving in board materials (laminate, chipboard and MDF) or hardwood or Corian. Can be used for manual milling or in CNC machining centres.
Rounding, chamfering, fluting and edge profiling. Milling curves and cut-outs with the multi-purpose milling jig. With guide system for milling grooves on rear walls or recessing of clamping rails. Milling grooves for Schallex, Kältefeind or automatic door and window seals with the milling tool. Milling of mineral materials (max. cutter diameter 45 mm).
Copy ring 30 mm - standard for the production of kitchen countertop joints.
These new CMT cutters feature double bearing and are spiral ground allowing clean smooth cuts in many materials. You no longer have to rotate the material or move the template. Unique tool especially for milling curved shapes along the template.
Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades, which can also be rotated and used with up to 4 blades. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
Type F043-195xx with a cutting length of 50 mm is equipped with two copy bearings for better guidance according to the template.
Designed for trimming and edging.
Type F042 is equipped with a copy bearing. Designed for manual milling.
- Replaceable razor blades made of micro-grain carbide.
- The razor blades can be rotated by 90° for a total of 4 cutting edges.
- The razor blades are fixed with special Torx screws.
- Cutter body made of high-quality steel.
The cutter is equipped with two double-edged razor blades for rounding the edges. The radius is ground on all 4 sides of the razor for maximum tool efficiency. The cutter is fitted with a razor blade with a radius of R3mm or R2mm, which is mainly used on ABS edges. It is also possible to buy a radius R1mm and R1,5 mm, which can be used to cut the edge when gluing umakarte, veneer or laminate on boards. For use on manual top milling machines.
- for trimming even the most difficult parts according to the template
- HW carbide cutting edges
- copy bearing on the cutter face
Slotting shank cutter with one drilling razor blade and one cutting razor blade. It has excellent drilling properties in hardwood and board materials (laminate, chipboard, MDF and Corian). The 20 mm diameter shank is designed for safe clamping in CNC machining centres at high feed rates. Can also be used for manual milling.
The milling cutter is equipped with a drilling razor blade, which makes it easier to drill into the material.
Milling machine designed for precise face milling and copying according to the template underneath. With a traditional brazed cutter, the cutting diameter is reduced against the bearing during sharpening and this causes a tooth to form. The razor cutter eliminates this phenomenon with precisely aligned exchangeable razor blades that can also be rotated. For milling Corian, it is possible to purchase a straight or tapered bearing with a plastic ring to ensure precise guidance through the material.
These cutters are designed for trimming, shaping and grooving.
For direct drilling, use type F044.
With the extra-long half-groove cutter (19 mm), you can even restore the grooves of old window frames for the insertion of insulated glass.
Plate milling cutter without countersink, for milling grooves from 1.5 - 6 mm wide. The drift shank can be freely combined to create a groove according to your own requirements.
Use type 3 (without copy bearing) 4B (with copy bearing).
Semi-slotted cutter sets allow you to make an unlimited number of cuts by setting different cutting heights on your cutter and changing the bearings on the cutter included in the set.
Product detailed description
What you need to work with the template:
- We recommend a top milling machine with a power of 1400W or more. With a lightweight and low-performance milling machine, you will struggle to maintain the accuracy and quality of the joint
- Copy ring D 30 mm, should be part of every top milling machine.
- Spline cutter D 12 mm. The right choice of tool is the most important and therefore we recommend only precise and high quality tools to achieve a precise and clean joint with low production costs. For less frequent use of the template, we recommend a spline cutter with soldered blades.
Additional parameters
Category: | Drilling and milling jigs |
---|---|
Warranty: | 2 years |
Weight: | 3 kg |
